aluNORM

Kapsling i unik mångsidighet och ekonomi tack vare en flexibel design. Större innerutrymme pga. ett kombinerat en-kanal system för fastsättning av lock- och fästskruvar. Tillgänglig i 86 storlekar.

Kategori: Aluminium

Ladda ner produktkatalog

Aluminiumgehaeuse-aluNORM-Rolec_TitleImageWide_TitleImageWide


Egenskaper

Serie: aluNORM
Skyddsklass: IP 66 eller IP 67
Lådstorlek:
86 olika mått från 50 x 65 x 40 mm till 640 x 320 x 120 mm
Användningsområden:
Maskinteknik, mät- och reglerteknik, styrteknik

  1. Fyra olika typer: AS, AD, AF, AH
  2. Monteringsmåtten passar till serie polyTOP (polyesterlåda)
  3. Enkanalsfäste som sparar plats och ger mera inre utrymme
  4. Skyddsklass IP 66 eller med specialtätning IP 67
  5. Stort urval av lådmått
Montageplatta DIN skena
Silikonpackning Gångjärn
Montageskena PLUS IP67
Yttre montagefötter Inre gångjärn
Plintstöd Gångjärn med spärr
EMC avskärmning Kromatisering
Korrosionsskydd



Teknisk data

Lådmaterial
Aluminiumgods legering:
EN AC-44300 DIN EN 1706
(GD Al Si 12/DIN 1725).
Deformeringsgrad 1° - Räta innermått minskar 1° mot lådans botten.
Skruvar
Fast monterade lockskruvar i rostfritt stål.
Skyddsklass
IP 67/EN 60529
Packning
Kloroprenpackning (-30°C till + 90°C), eller TPE-packning (silikonfri)
På begäran: Silikonpackning (-40°C till +120° C).
Temperaturbeständighet
-30°C till +100°C
Montering
Med en-kanlas teknologi Fästen kan levereras som tillbehör.
Inbyggnad
Fästpunkter i sidosteg med gängade blindhål på lådans botten.
Lackering
Pulverlackering standard
Kiselgrå RAL 7032, silvergrå RAL 7001 utan prispåslag.
Inbränd strukturlack och specialfärger på begäran


Certifieringar


MontageplattaSilikonpackningYttre montagefötterPlintstödKromatiseringKorrosionsskyddDIN skenaGångjärnInre gångjärnGångjärn med spärrEMC avskärmningPLUS IP67Ladda ner ritning
Typeart.nrL (mm)W (mm)H (mm)DEVikt (g)MDABKLTSISHSEMCPLUSCAD

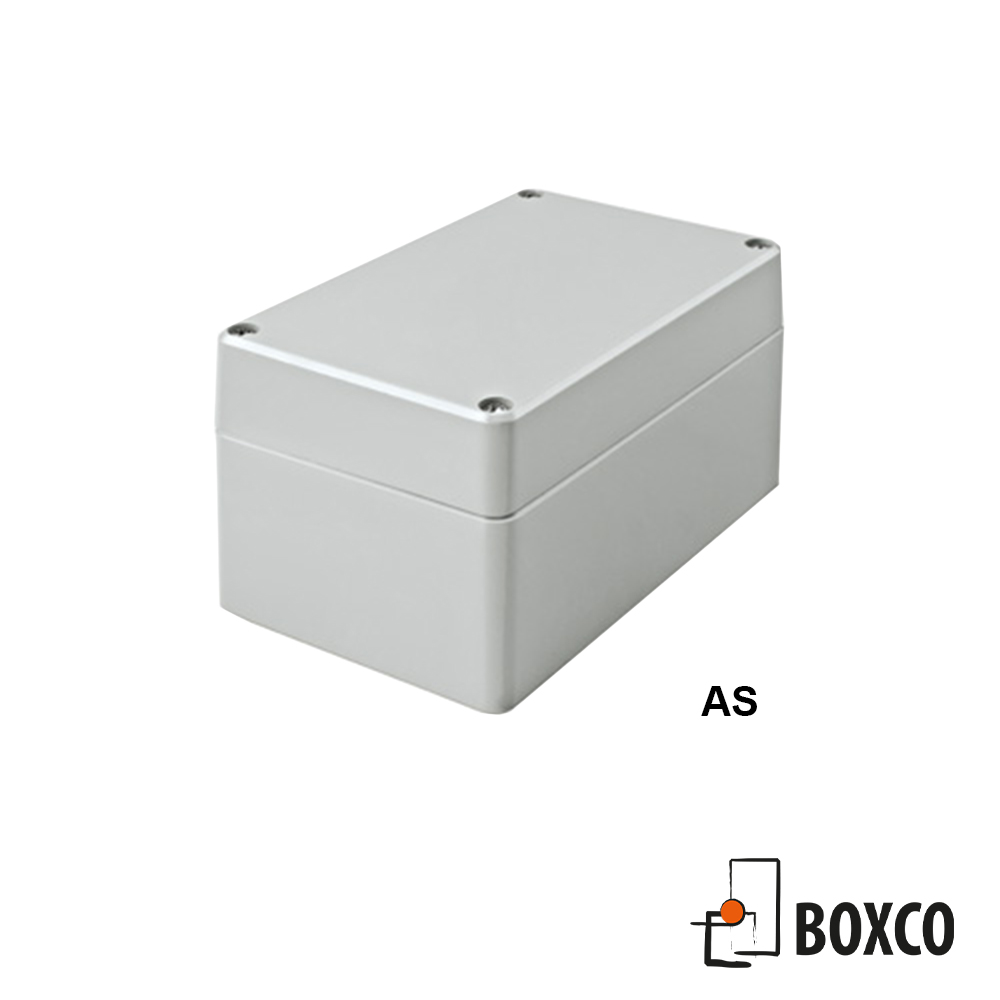

AS 060100.060.0005065403853130checkcheckclosecheckcheckcheckcheckclosecloseclosecheckcheckdownload
AS 062100.062.0006565405353310checkcheckclosecheckcheckcheckcheckclosecloseclosecheckcheckdownload
AS 064100.064.00010065408853220checkcheckclosecheckcheckcheckcheckclosecloseclosecheckcheckdownload
AS 066100.066.000150654013853310checkcheckclosecheckcheckcheckcheckclosecloseclosecheckcheckdownload
AS 080100.080.0008080606767320checkcheckcheckcheckcheckcheckcheckclosecloseclosecheckcheckdownload
AS 082100.082.000120806010767460checkcheckcheckcheckcheckcheckcheckclosecloseclosecheckcheckdownload
AS 084100.084.000160806014767610checkcheckcheckcheckcheckcheckcheckclosecloseclosecheckcheckdownload
AS 100100.100.000100100808787550checkcheckcheckclosecheckcheckcheckcheckclosecheckcheckcheckdownload
AS 102100.102.0001501008013787730checkcheckcheckclosecheckcheckcheckcheckclosecheckcheckcheckdownload
AS 104100.104.0002001008018787910checkcheckcheckclosecheckcheckcheckcheckclosecheckcheckcheckdownload
AS 120100.120.0001201201001021021070checkcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AS 122100.122.0001801201001621021310checkcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AS 124100.124.0002401201002221021680checkcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AS 160100.160.0001601601001421421520checkcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AS 162100.162.0002401601002221421980checkcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AS 164100.164.0003201601003021422480checkcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AS 166100.166.0004801601004621423900checkcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AS 200100.200.0002002001201801802480checkcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AS 202100.202.0003002001202801803250checkcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AS 204100.204.0004002001203801804700checkcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AS 240100.240.0002402401202202203400checkcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AS 242100.242.0003602401203402204000checkcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AS 244100.244.0004802401204602206100checkcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AS 320100.320.0003203201203003004900checkcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AS 322100.322.0004803201204603006600checkcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AS 324100.324.0006403201206203008700checkcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
MontageplattaSilikonpackningYttre montagefötterMontageskenaPlintstödKromatiseringKorrosionsskyddDIN skenaGångjärnInre gångjärnGångjärn med spärrEMC avskärmningPLUS IP67Ladda ner ritning
Typeart.nrL (mm)W (mm)H (mm)DEVikt (g)MDAQBKLTSISHSEMCPLUSCAD

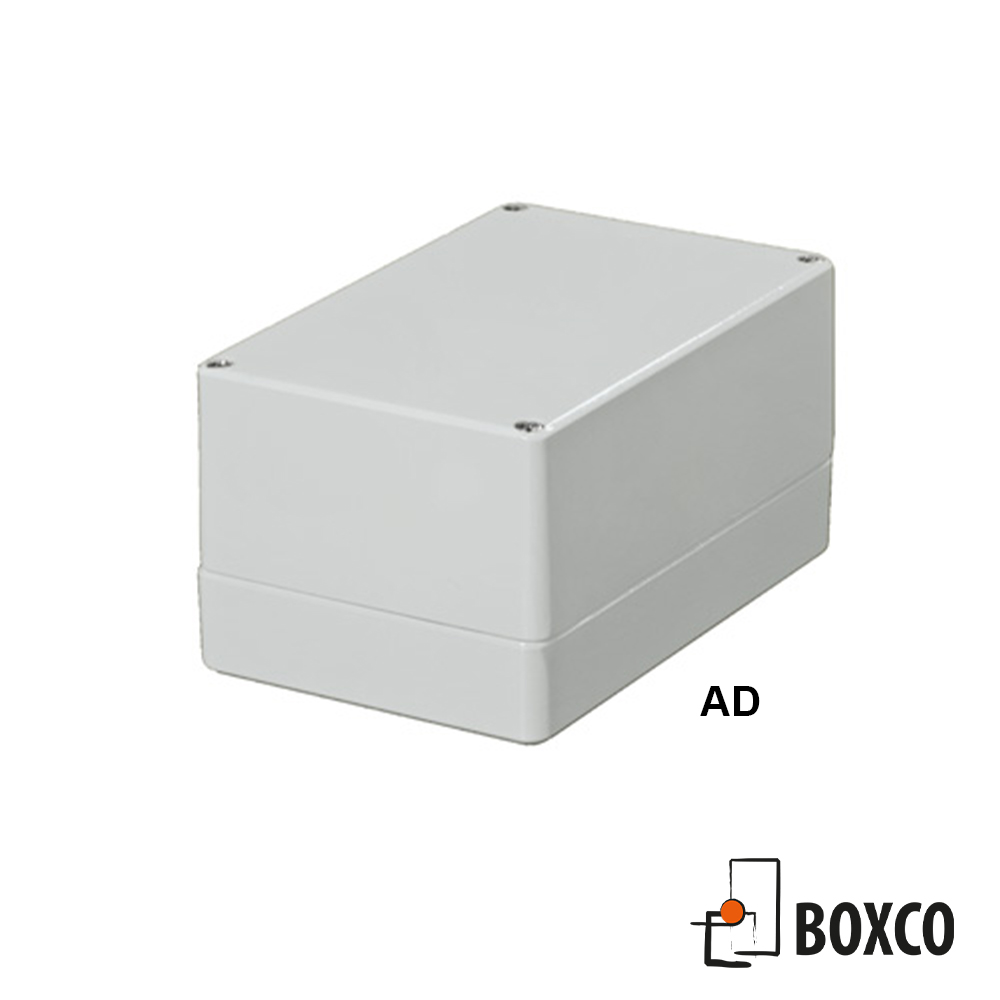

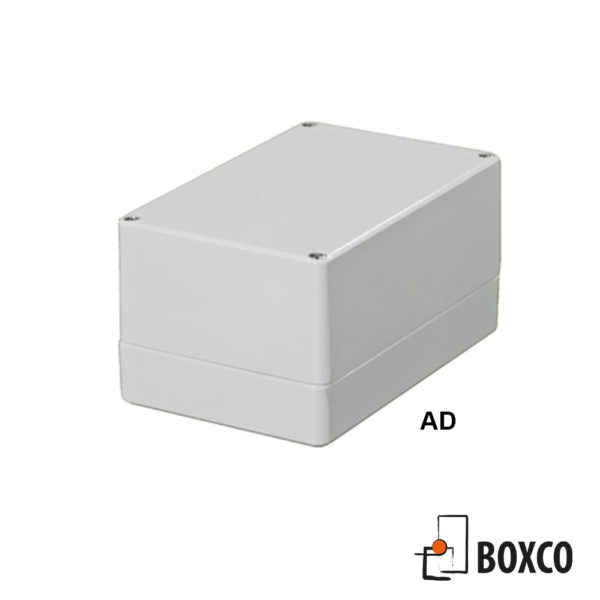

AD 080101.080.0008080606767320checkcheckcheckcheckcheckcheckcheckcheckclosecloseclosecheckcheckdownload
AD 082101.082.000120806010767460checkcheckcheckcheckcheckcheckcheckcheckclosecloseclosecheckcheckdownload
AD 084101.084.000160806014767610checkcheckcheckcheckcheckcheckcheckcheckclosecloseclosecheckcheckdownload
AD 100101.100.000100100808787550checkcheckcheckcheckclosecheckcheckcheckcheckclosecheckcheckcheckdownload
AD 102101.102.0001501008013787730checkcheckcheckcheckclosecheckcheckcheckcheckclosecheckcheckcheckdownload
AD 104101.104.0002001008018787910checkcheckcheckcheckclosecheckcheckcheckcheckclosecheckcheckcheckdownload
AD 120101.120.0001201201001021021070checkcheckcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AD 122101.122.0001801201001621021310checkcheckcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AD 124101.124.0002401201002221021680checkcheckcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AD 160101.160.0001601601001421421520checkcheckcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AD 162101.162.0002401601002221421980checkcheckcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AD 164101.164.0003201601003021422480checkcheckcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AD 166101.166.0004801601004621423900checkcheckcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AD 200101.200.0002002001201801802480checkcheckcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AD 202101.202.0003002001202801803250checkcheckcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AD 204101.204.0004002001203801804700checkcheckcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AD 240101.240.0002402401202202203400checkcheckcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AD 242101.242.0003602401203402204000checkcheckcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AD 244101.244.0004802401204602206100checkcheckcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AD 320101.320.0003203201203003004900checkcheckcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AD 322101.322.0004803201204603006600checkcheckcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
AD 324101.324.0006403201206203008700checkcheckcheckcheckclosecheckcheckcheckcheckcheckcheckcheckcheckdownload
MontageplattaSilikonpackningYttre montagefötterMontageskenaPlintstödKromatiseringKorrosionsskyddDIN skenaGångjärnGångjärn med spärrEMC avskärmningPLUS IP67Ladda ner ritning
Typeart.nrL (mm)W (mm)H (mm)DEVikt (g)MDAQBKLTSHSEMCPLUSCAD

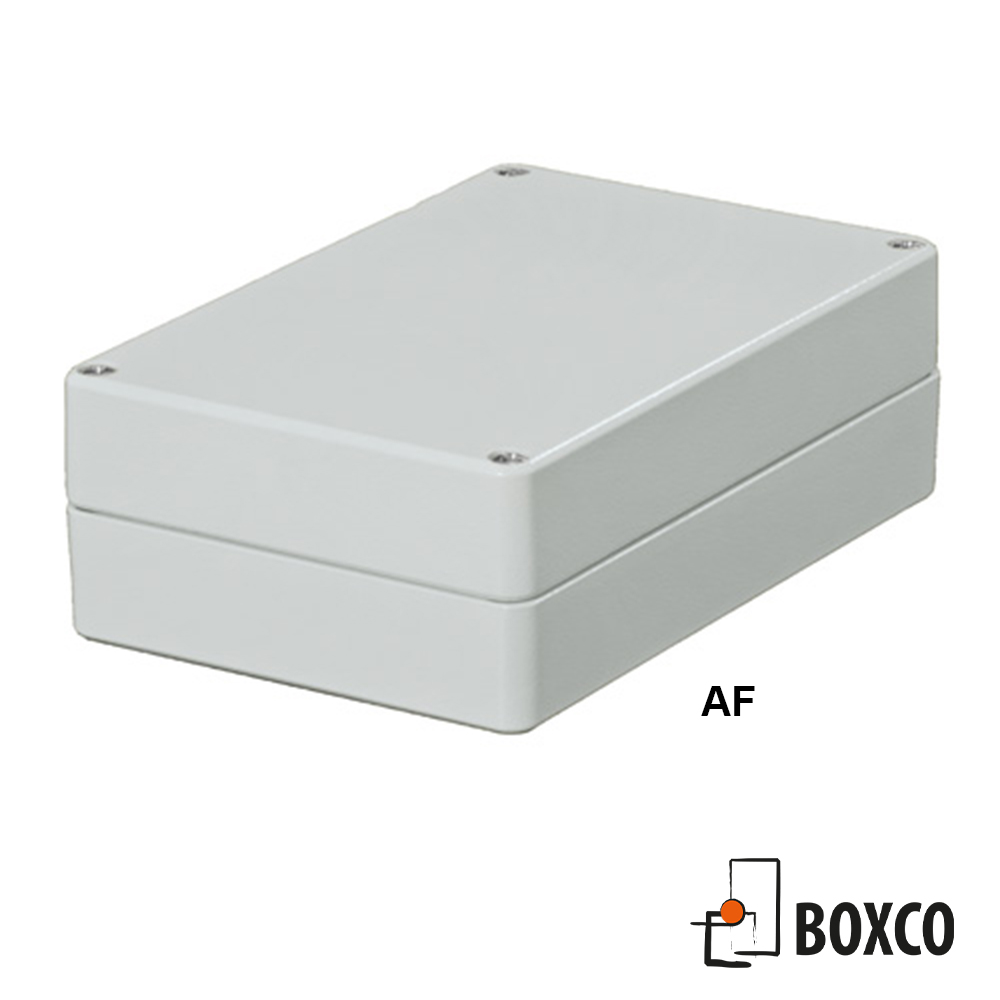

AF 080102.080.0008080406767240checkcheckcheckcheckcheckcheckcheckclosecloseclosecheckcheckdownload
AF 082102.082.000120804010767330checkcheckcheckcheckcheckcheckcheckclosecloseclosecheckcheckdownload
AF 084102.084.000160804014767400checkclosecheckcheckcheckcheckcheckclosecloseclosecheckclosedownload
AF 100102.100.000100100548787420checkcheckcheckcheckclosecheckcheckcheckcloseclosecheckcheckdownload
AF 102102.102.0001501005413787540checkcheckcheckcheckclosecheckcheckcheckcloseclosecheckcheckdownload
AF 104102.104.0002001005418787690checkclosecheckcheckclosecheckcheckcheckcloseclosecheckclosedownload
AF 120102.120.00012012066102102780checkclosecheckcheckclosecheckcheckcheckcheckcheckcheckclosedownload
AF 122102.122.000180120661621021010checkcheckcheckcheckclosecheckcheckcheckcheckcheckcheckcheckdownload
AF 124102.124.000240120662221021260checkcheckcheckcheckclosecheckcheckcheckcheckcheckcheckcheckdownload
AF 160102.160.000160160661421421130checkclosecheckcheckclosecheckcheckcheckcheckcheckcheckclosedownload
AF 162102.162.000240160662221421560checkcheckcheckcheckclosecheckcheckcheckcheckcheckcheckcheckdownload
AF 164102.164.000320160663021421910checkclosecheckcheckclosecheckcheckcheckcheckcheckcheckclosedownload
AF 166102.166.000480160664621423030checkclosecheckcheckclosecheckcheckcheckcheckcheckcheckclosedownload
AF 200102.200.000200200801801801780checkclosecheckcheckclosecheckcheckcheckcheckcheckcheckclosedownload
AF 202102.202.000300200802801802380checkclosecheckcheckclosecheckcheckcheckcheckcheckcheckclosedownload
AF 204102.204.000400200803801803560checkclosecheckcheckclosecheckcheckcheckcheckcheckcheckclosedownload
AF 240102.240.000240240802202202380checkclosecheckcheckclosecheckcheckcheckcheckcheckcheckclosedownload
AF 242102.242.000360240803402203630checkclosecheckcheckclosecheckcheckcheckcheckcheckcheckclosedownload
AF 244102.244.000480240804602204690checkclosecheckcheckclosecheckcheckcheckcheckcheckcheckclosedownload
AF 320102.320.000320320803003004000checkclosecheckcheckclosecheckcheckcheckcheckcheckcheckclosedownload
AF 322102.322.000480320804603005650checkclosecheckcheckclosecheckcheckcheckcheckcheckcheckclosedownload
AF 324102.324.000640320806203007350checkclosecheckcheckclosecheckcheckcheckcheckcheckcheckclosedownload
MontageplattaSilikonpackningYttre montagefötterKromatiseringKorrosionsskyddDIN skenaGångjärnGångjärn med spärrEMC avskärmningPLUS IP67Ladda ner ritning
Typeart.nrL (mm)W (mm)H (mm)DEVikt (g)MDAKLTSHSEMCPLUSCAD

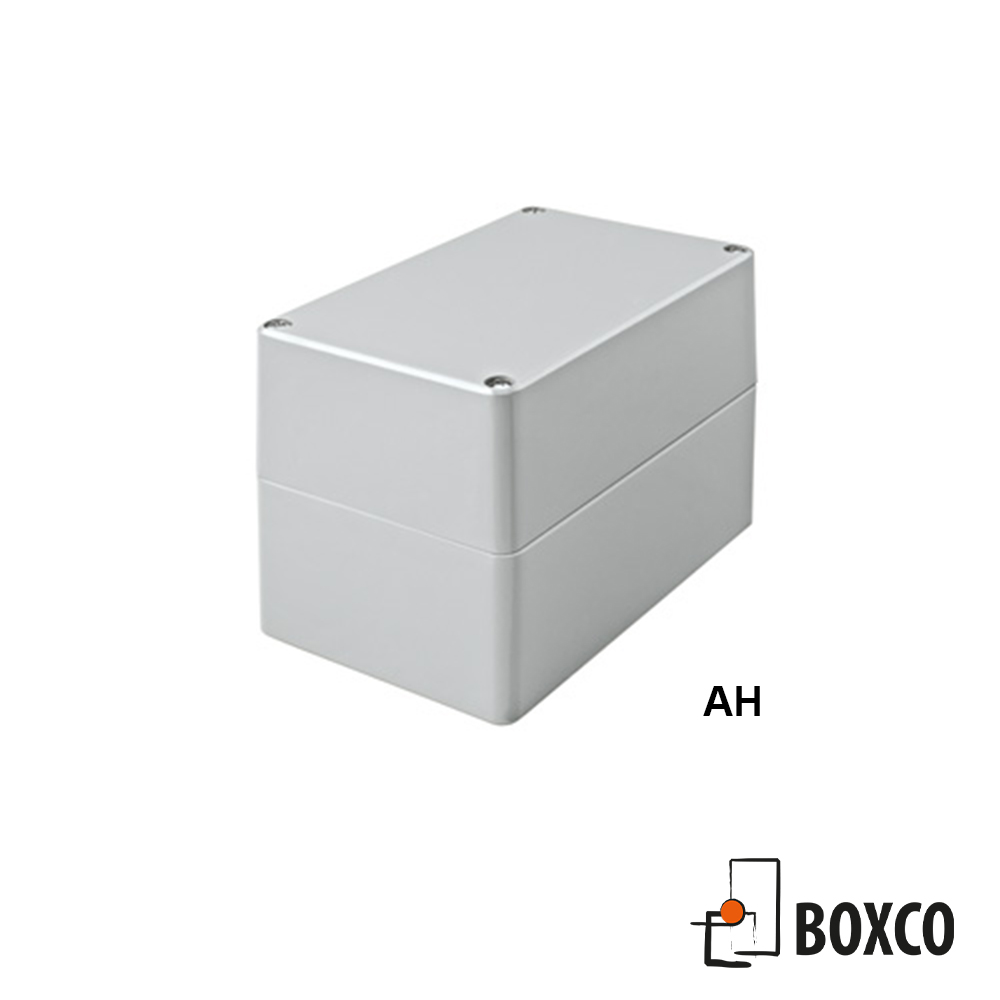

AH 100103.100.0001001001068787630checkcheckcheckcheckcheckcheckcheckcheckcheckcheckdownload
AH 102103.102.00015010010613787760checkclosecheckcheckcheckcheckcheckcheckcloseclosedownload
AH 104103.104.00020010010618787940checkclosecheckcheckcheckcheckcheckcheckcloseclosedownload
AH 120103.120.0001201201341021021280checkclosecheckcheckcheckcheckcheckcheckcloseclosedownload
AH 122103.122.0001801201341621021560checkclosecheckcheckcheckcheckcheckcheckcloseclosedownload
AH 124103.124.0002401201342221022000checkclosecheckcheckcheckcheckcheckcheckcloseclosedownload
AH 160103.160.0001601601341421421810checkcheckcheckcheckcheckcheckcheckcheckcheckcheckdownload
AH 162103.162.0002401601342221422300checkclosecheckcheckcheckcheckcheckcheckcloseclosedownload
AH 164103.164.0003201601343021422950checkclosecheckcheckcheckcheckcheckcheckcloseclosedownload
AH 166103.166.0004801601344621424640checkclosecheckcheckcheckcheckcheckcheckcloseclosedownload
AH 200103.200.0002002001591801802950checkclosecheckcheckcheckcheckcheckcheckcloseclosedownload
AH 202103.202.0003002001592801803880checkclosecheckcheckcheckcheckcheckcheckcloseclosedownload
AH 204103.204.0004002001593801805600checkclosecheckcheckcheckcheckcheckcheckcloseclosedownload
AH 240103.240.0002402401592202204050checkclosecheckcheckcheckcheckcheckcheckcloseclosedownload
AH 242103.242.0003602401593402204760checkclosecheckcheckcheckcheckcheckcheckcloseclosedownload
AH 244103.244.0004802401594602207260checkclosecheckcheckcheckcheckcheckcheckcloseclosedownload
