conTROL

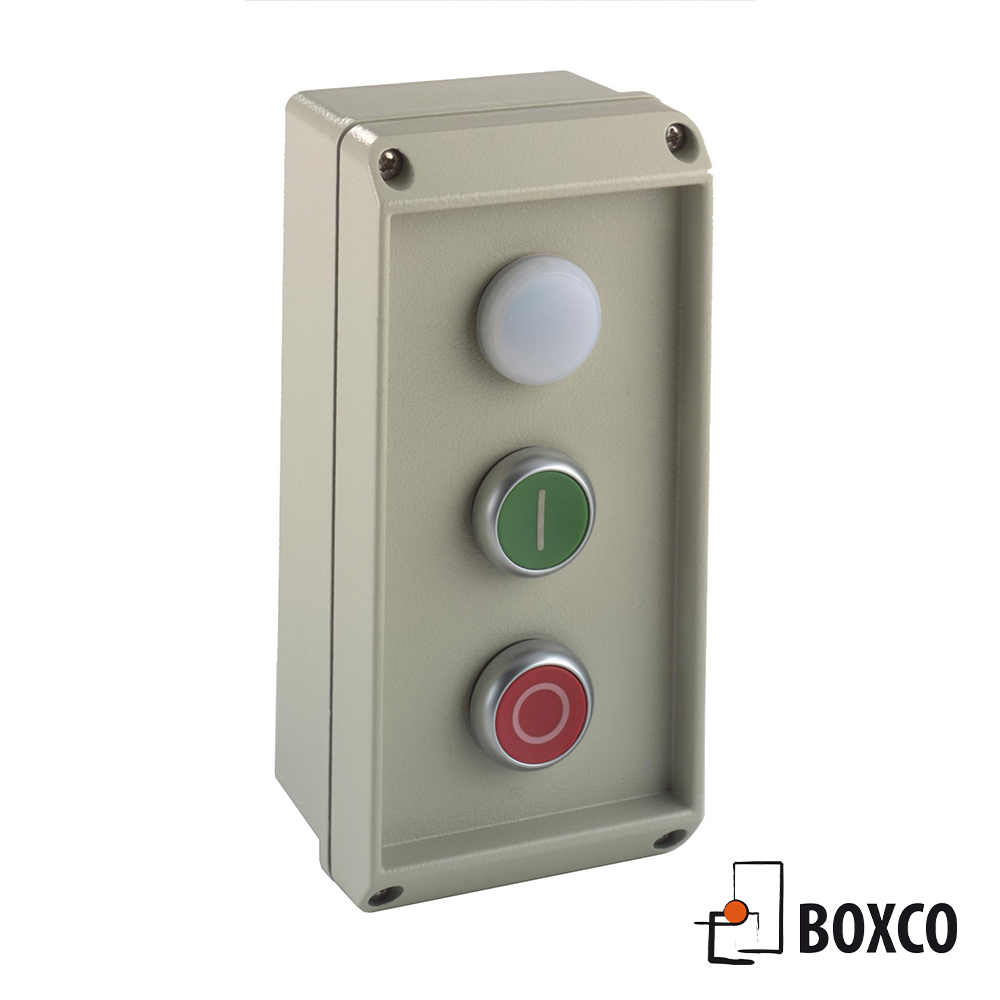

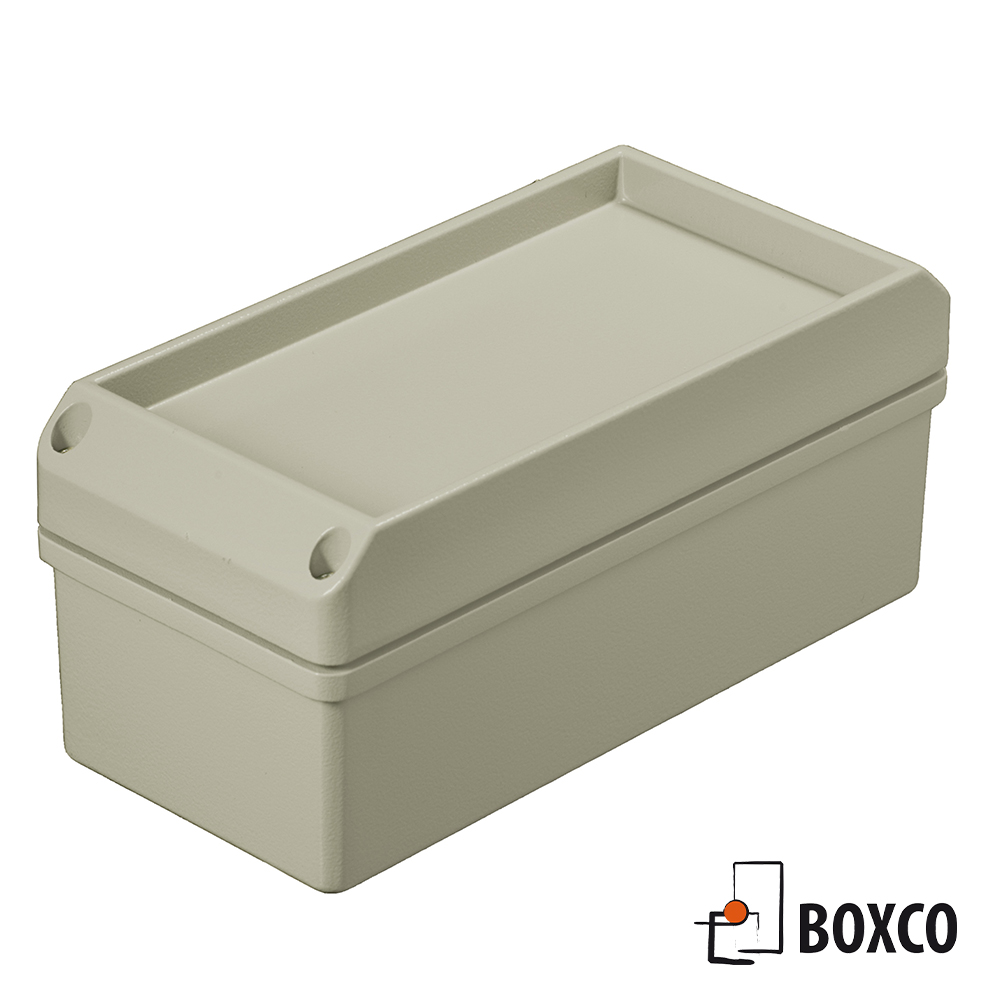

Aluminiumkapsling med skyddskant för montering av t.ex. nödstopp. Integrerat EMC skydd. Fastsättningsmåtten är kompatibla med ”standard” kapslingar typ aluKOM. Tillgänglig i fyra storlekar.

Kategori: Aluminium

Ladda ner produktkatalog

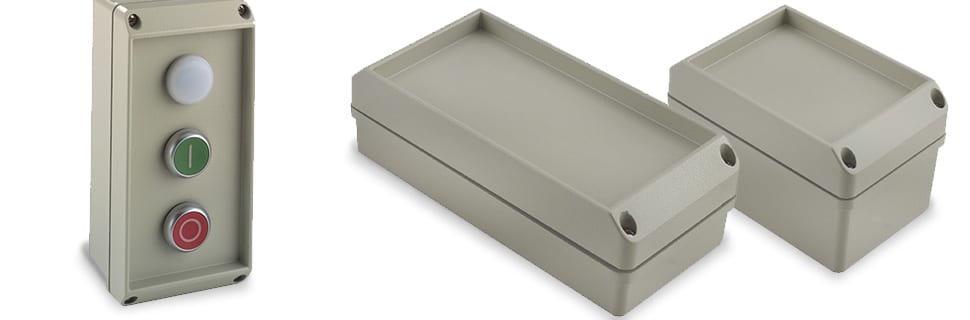

Aluminiumgehaeuse-conTROL-Rolec_TitleImageWide_TitleImageWide


Egenskaper

FEATURES
  • Robust and attractive shielded controller
    enclosures

  • Ideal for all types of industrial equipment
  • Deep recessed lid protects control buttons
  • Excellent EMC performance with integrated
    contact ridges in the base section
  • Contact ridges are compressed by lid section without the need for expensive EMC gaskets
  • Attractive bevelled lid with captured lid screws
  • Weatherproof and waterproof
  • Internal screw bosses for mounting
    plates, PCB supports, Din-Rails etc.
    (M4 or M6 self-tapping screws included)



Teknisk data

TECHNICAL DATA / OPTIONS

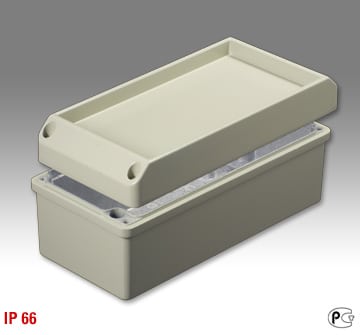

IP rating:
IP66 / EN 60529
IP67 on request (Option code PLUS)
Material:
Die-cast aluminium EN AC-44300 DIN EN 1706 (GD Al Si 12/DIN 1725)
1° mould slope for moulding ejection
See material specifications for more information
Finish/colour:
Powder coat, silky grey, RAL 7032
Special finish & colours on request
Option code: L - Corrosion proof coating
Lid gasket:
Standard: Thermoplastic TPE gasket (silicon free) -40°C to +120°C
Option code: PLUS: Neoprene gasket -30°C to +100°C (IP 67)
Option code: D: Silicon gasket -50°C to +140°C
Lid screws:
Captured stainless steel screws
Certification:
GOST R (Russian Standards)
Mounting:
Separate screw ports outside of the enclosure interior
Technical Notes:
Technical specifications for the products on this page may be subject to change at any time without prior notice. Please check any critical specifications or criteria by contacting our sales team before ordering your products. No liability is accepted for typographical or any other errors.




Certifieringar


MontageplattaSilikonpackningYttre montagefötterKromatiseringKorrosionsskyddDIN skenaGångjärnInstallationskit för panelmontageLockfästeEMC avskärmningPLUS IP67Ladda ner ritning
Typeart.nrL (mm)W (mm)H (mm)DEVikt (g)MDAKLTSEMDHEMCPLUSCAD
EKTF 082311.082.000129.884.85511352450checkcheckcheckcheckcheckcheckcheckcheckclosethumbnailscheckdownload
EKTF 083311.083.000179.584.85516352600checkcheckcheckcheckcheckcheckcheckcheckclosethumbnailscheckdownload
EKT 082310.082.000129.884.87811352600checkcheckcheckcheckcheckcheckcheckcheckcheckthumbnailscheckdownload
EKT 083310.083.000179.884.87816352750checkcheckcheckcheckcheckcheckcheckcheckcheckthumbnailscheckdownload
