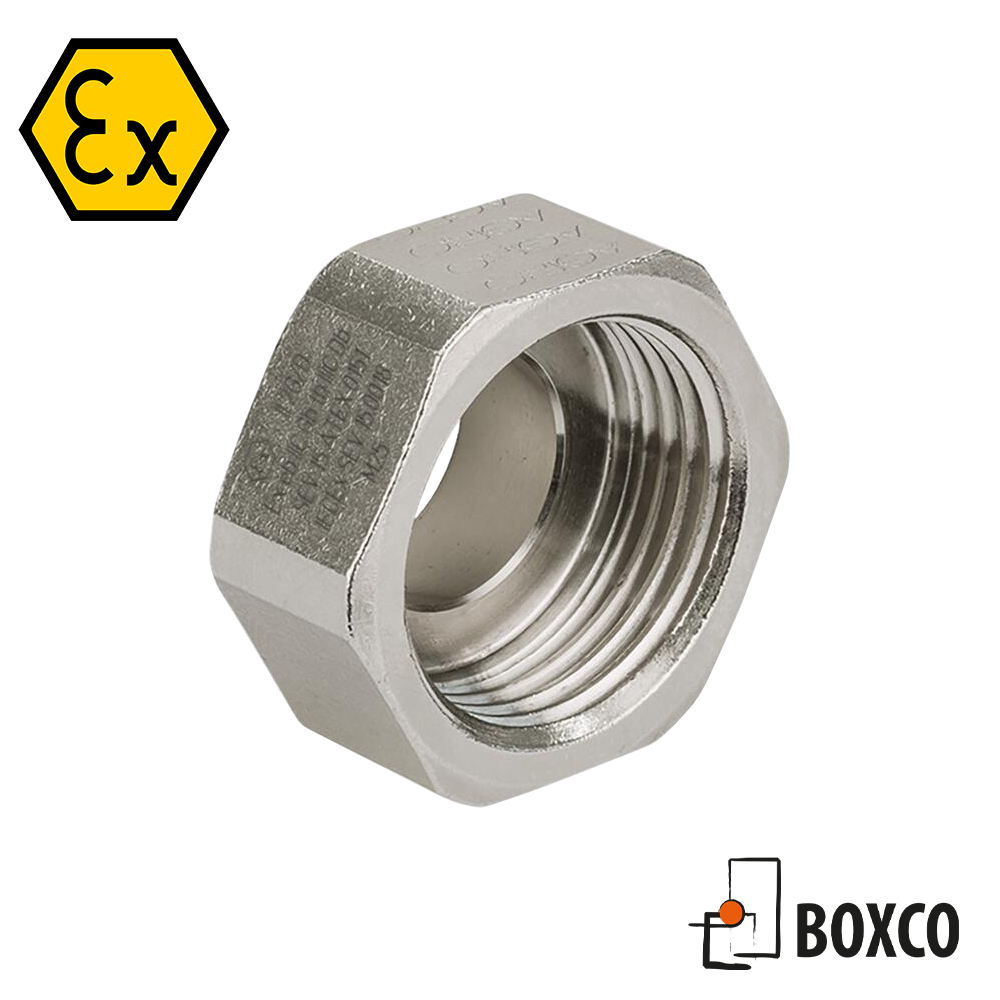

(M-M), (Pg-M)Förstoring + Adapter – Serie 530.EX / 531.EX

Egenskaper:
ATEX metallförstoring + adapter från AGRO AG. M till M och Pg till M. IP 68.

Kategori: Adapter-Övergång

Ladda ner produktkatalog
MaterialNickelpläterad mässing
O-ringNBR
Temperaturområde -20°C till 100°C
SkyddsklassIP 68
Certifikat:PTB 02 ATEX 1126 X *
PTB 02 ATEX 1125


Nyckelvidd mm
art.nrart.nr Yttergänga InnergängaNyckelvidd mm H mmGL mm
530.0810.EX * EX3600.08.10 M 8 x 1.25 M 10 x 1.5 1395
530.0815.EX * EX3600.08.12 M 8 x 1.25 M 12 x 1.5 1595
530.1015.EX * EX3600.10.12 M 10 x 1.5 M 12 x 1.5 1595
530.1017.EX * EX3600.10.17 M 10 x 1.5 M 16 x 1.5 1895
530.1517.EX * EX3600.12.17 M 12 x 1.5 M 16 x 1.5 1895
530.1520.EX * EX3600.12.20 M 12 x 1.5 M 20 x 1.5 24105
530.1720.EX EX3600.17.20 M 16 x 1.5 M 20 x 1.5 24105
530.2025.EX EX3600.20.25 M 20 x 1.5 M 25 x 1.5 3011.56
530.2532.EX EX3600.25.32 M 25 x 1.5 M 32 x 1.5 36147
530.3240.EX EX3600.32.40 M 32 x 1.5 M 40 x 1.5 46148
530.4050.EX EX3600.40.50 M 40 x 1.5 M 50 x 1.5 55168
530.5063.EX EX3600.50.63 M 50 x 1.5 M 63 x 1.5 70179
531.0715.EX * EX3600.07.12 Pg 7 M 12 x 1.5 1596
531.0717.EX * EX3600.07.17 Pg 7 M 16 x 1.5 1896
531.0917.EX EX3600.09.17 Pg 9 M 16 x 1.5 189.56
531.0920.EX EX3600.09.20 Pg 9 M 20 x 1.5 2410.56
531.1120.EX EX3600.11.20 Pg 11 M 20 x 1.5 2410.56
531.1125.EX EX3600.11.25 Pg 11 M 25 x 1.5 3011.56
531.1320.EX EX3600.13.20 Pg 13.5 M 20 x 1.5 2410.56
531.1325.EX EX3600.13.25 Pg 13.5 M 25 x 1.5 3011.56
531.1625.EX EX3600.16.25 Pg 16 M 25 x 1.5 3011.56
531.1632.EX EX3600.16.32 Pg 16 M 32 x 1.5 3613.56
531.2132.EX EX3600.21.32 Pg 21 M 32 x 1.5 36147.5
531.2140.EX EX3600.21.40 Pg 21 M 40 x 1.5 46147.5
531.2940.EX EX3600.29.40 Pg 29 M 40 x 1.5 46148
531.2950.EX EX3600.29.50 Pg 29 M 50 x 1.5 55168
531.3650.EX EX3600.36.50 Pg 36 M 50 x 1.5 55168
531.3663.EX EX3600.36.63 Pg 36 M 63 x 1.5 70178
531.4263.EX EX3600.42.63 Pg 42 M 63 x 1.5 701710
531.4863.EX EX3600.48.63 Pg 48 M 63 x 1.5 701711
