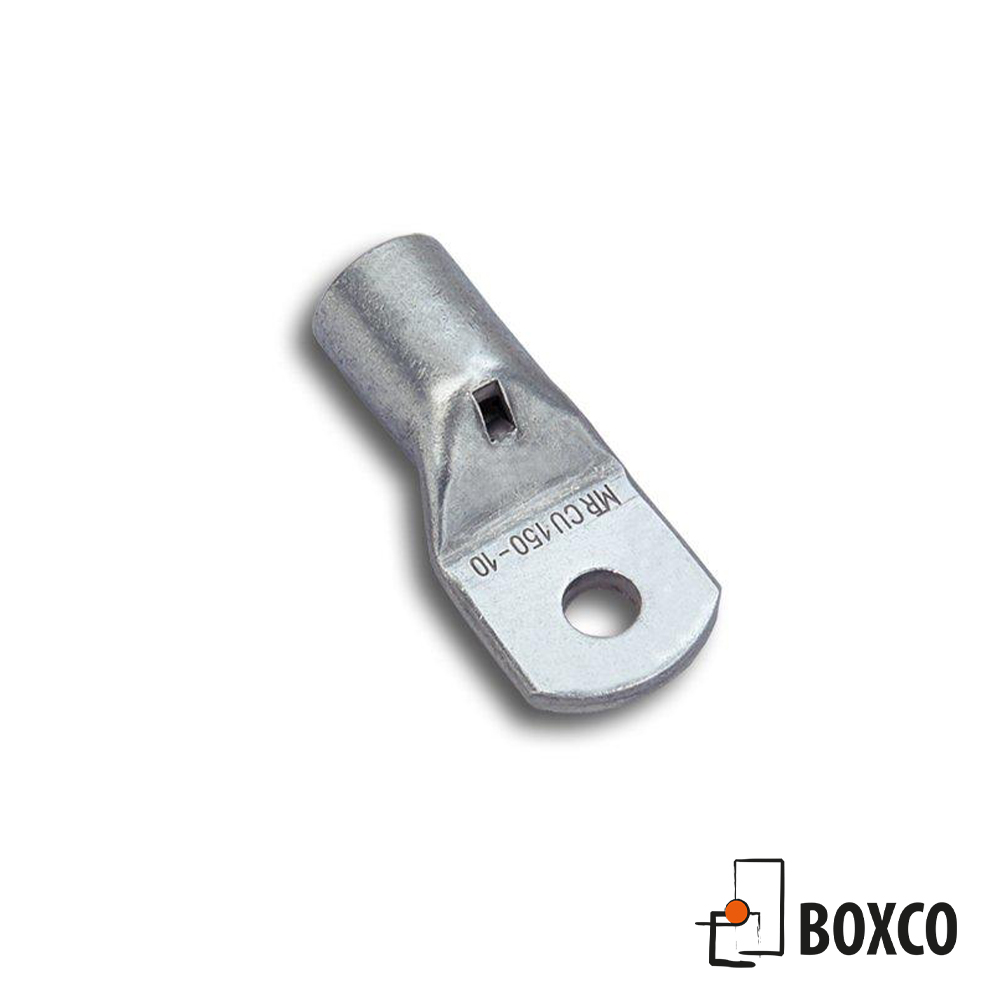

Rörkabelsko Easy Entry

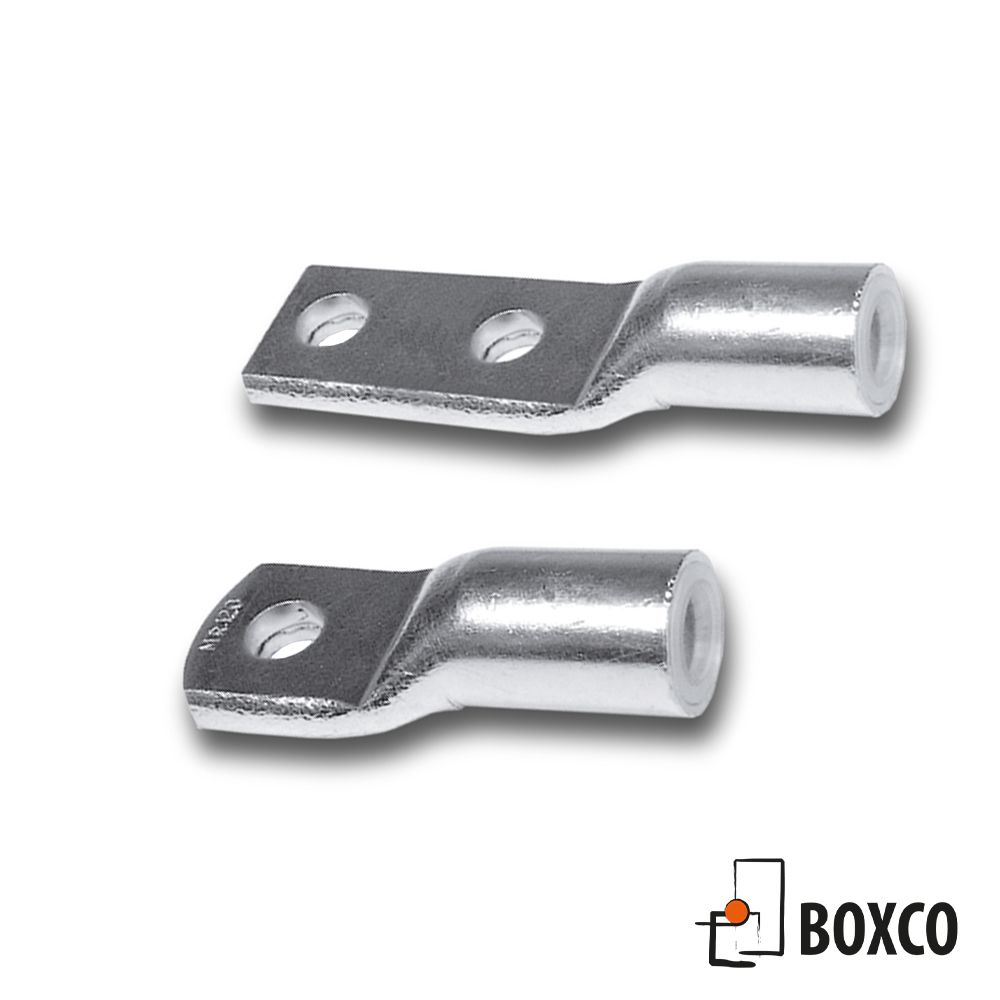

Rörkabelskor med inspektionshål och ”Easy Entry” för snabb och säker installation.

Kategori: Kabelskor

Ladda ner produktkatalog

Teknisk data

Material: Copper
Plating: Electro tin plated
Insulation: None
Operating temperature: -55°C - 150°C
  • With inspection hole
  • RoHS compliant

Certifieringar


Art nr

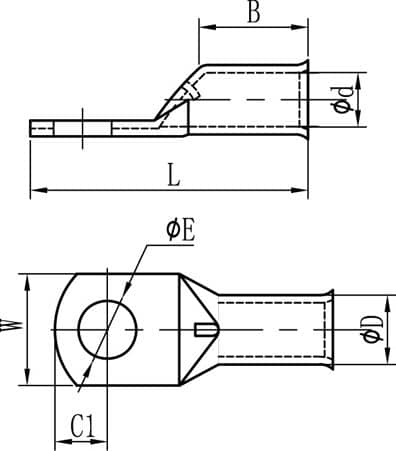

Kabelarea mm² ø E W L B ø D ø d1 MOQ
GC1.5-3  0.5~1.5 3.2 8 16 6 3.7 1.8 100
GC1.5-4  0.5~1.5 4.3 8 17 6 3.7 1.8 100
GC1.5-5  0.5~1.5 5.3 10 19 7 3.7 1.8 100
GC1.5-6  0.5~1.5 6.5 10 20 7 3.7 1.8 100
GC2.5-3  1.5~2.5 3.2 8 17 7 3.9 2.3 100
GC2.5-4  1.5~2.5 4.3 8 18 7 3.9 2.3 100
GC2.5-5  1.5~2.5 5.3 10 20 7 3.9 2.3 100
GC2.5-6  1.5~2.5 6.5 10 20 7 3.9 2.3 100
GC2.5-8  1.5~2.5 8.3 12.5 22.5 7 4.3 2.3 100
GC4-4  4 4.3 10 21 8 4.7 3 100
GC4-5  4 5.3 10 22 8 4.7 3 100
GC4-6  4 6.5 10 23 8 4.7 3 100
GC4-8  4 8.3 12.5 24 8 4.7 3 100
GC6-4  6 4.3 10 24.6 9.5 5.9 4 100
GC6-5  6 5.3 10 24.6 9.5 5.9 4 100
GC6-6  6 6.5 11 24.6 9.5 5.9 4 100
GC6-8  6 8.3 12.5 27.3 9.5 5.9 4 100
GC6-10  6 10.3 15 28.3 9.5 6.2 4 100
GC10-4  10 4.3 11 30 13 6.6 4.5 100
GC10-5  10 5.3 11 30 13 6.6 4.5 100
GC10-6  10 6.5 11 30 13 6.6 4.5 100
GC10-8  10 8.3 12.5 30 13 6.6 4.5 100
GC10-10  10 10.3 16 34.1 13 6.9 4.5 100
GC10-12  10 12.7 18 34.1 12 6.9 4.5 100
GC16-5  16 5.3 11 30.7 14 7.5 5.5 100
GC16-6  16 6.5 11 30.7 14 7.5 5.5 100
GC16-8  16 8.3 12.5 30.7 13 7.5 5.5 100
GC16-10  16 10.3 16 35.9 14 7.5 5.5 100
GC16-12  16 12.7 18 35.9 13 8.1 5.5 100
GC25-5  25 5.3 13 32.2 13 9.1 6.7 100
GC25-6  25 6.5 13 32.2 13 9.1 6.7 100
GC25-8  25 8.3 13 32.2 13 9.1 6.7 100
GC25-10  25 10.3 16 36.9 14 9.1 6.7 100
GC25-12  25 12.7 18 36.9 13 9.1 6.7 100
GC25-14  25 14.8 20 38.9 13 9.1 6.7 100
GC35-5  35 5.3 16 37.6 16 11 8.6 100
GC35-6  35 6.5 16 37.6 16 11 8.6 100
GC35-8  35 8.3 16 37.6 16 11 8.6 100
GC35-10  35 10.3 16.7 41.5 16 11 8.6 100
GC35-12  35 12.7 18 41.5 16 11 8.6 100
GC35-14  35 14.8 20 43.5 16 11 8.6 100
GC35-16  35 16.5 23 45.5 16 11 8.6 100
GC50-5  50 5.3 18 41 17 12.4 9.5 100
GC50-6  50 6.5 18 41 17 12.4 9.5 100
GC50-8  50 8.3 18 41 17 12.4 9.5 100
GC50-10  50 10.3 18 44 17 12.4 9.5 100
GC50-12  50 12.7 19 44 17 12.4 9.5 100
GC50-14  50 14.8 21 52.8 19 12.4 9.5 100
GC50-16  50 16.5 23 52.8 19 12.4 9.5 100
GC70-5  70 5.3 22.5 52.4 21.5 15 12 50
GC70-6  70 6.3 22.5 52.4 21.5 15 12 50
GC70-8  70 8.3 22.5 52.4 21.5 15 12 50
GC70-10  70 10.3 22.5 52.4 21.5 15 12 50
GC70-12  70 12.7 22.5 52.4 21.5 15 12 50
GC70-14  70 14.8 22.5 55 21.5 15 12 50
GC70-16  70 16.5 24 55 20 15 12 50
GC95-6 95 6.5 25 54.7 22.5 17 13.4 50
GC95-8  95 8.3 25 54.7 22.5 17 13.4 50
GC95-10  95 10.3 25 54.7 22.5 17 13.4 50
GC95-12  95 12.7 25 54.7 22.5 17 13.4 50
GC95-14  95 14.8 25 58.3 22.5 17 13.4 50
GC95-16  95 16.8 25 58.3 22.5 17 13.4 50
GC120-8  120 8.3 27 60 23 19 15 30
GC120-10  120 10.3 27 60 23 19 15 30
GC120-12  120 12.7 27 60 23 19 15 30
GC120-14  120 14.8 27 64 23 19 15 30
GC120-16  120 16.5 27 64 23 19 15 30
GC150-8 150 8.3 30 67 27 21.1 16.5 10
GC150-10  150 10.3 30 67 27 21.2 16.5 10
GC150-12  150 12.7 30 67 27 21.2 16.5 10
GC150-14  150 14.8 30 67 27 21.2 16.5 10
GC150-16  150 16.5 30 71.4 27 21.2 16.5 10
GC150-20  150 20.9 30 71.4 27 21.2 16.5 10
GC185-10  185 10.3 34 73 30 23 19 6
GC185-12  185 12.7 34 73 30 23 19 6
GC185-14  185 14.8 34 73 30 23 19 6
GC185-16  185 16.5 34 76.2 30 23 19 6
GC185-20  185 20.9 34 76.2 30 23 19 6
GC240-10  240 10.3 38 91.4 38 26.5 21 5
GC240-12  240 12.7 38 91.4 38 26.5 21 5
GC240-14  240 14.8 38 91.4 38 26.5 21 5
GC240-16  240 16.5 38 91.4 38 26.5 21 5
GC240-20  240 20.9 38 91.4 38 26.5 21 5
GC300-12  300 12.7 43 98 42 30 24.5 4
GC300-14  300 14.8 43 98 42 30 24.5 4
GC300-16  300 16.5 43 98 42 30 24.5 4
GC300-20  300 20.9 43 98 42 30 24.5 4
GC400-12  400 12.7 49 104 44 35 27 1
GC400-14  400 14.8 49 104 44 35 27 1
GC400-16  400 16.5 49 104 44 35 27 1
GC400-20  400 20.9 49 104 44 35 27 1
