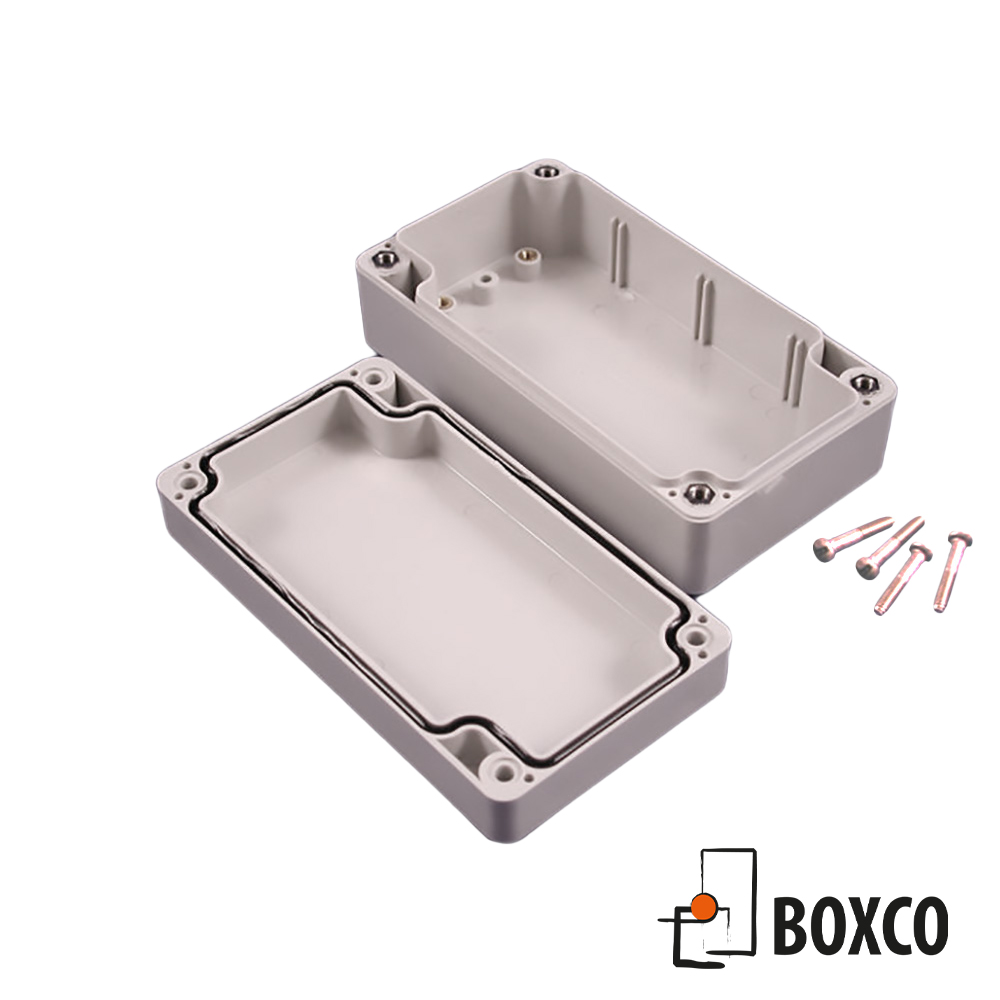

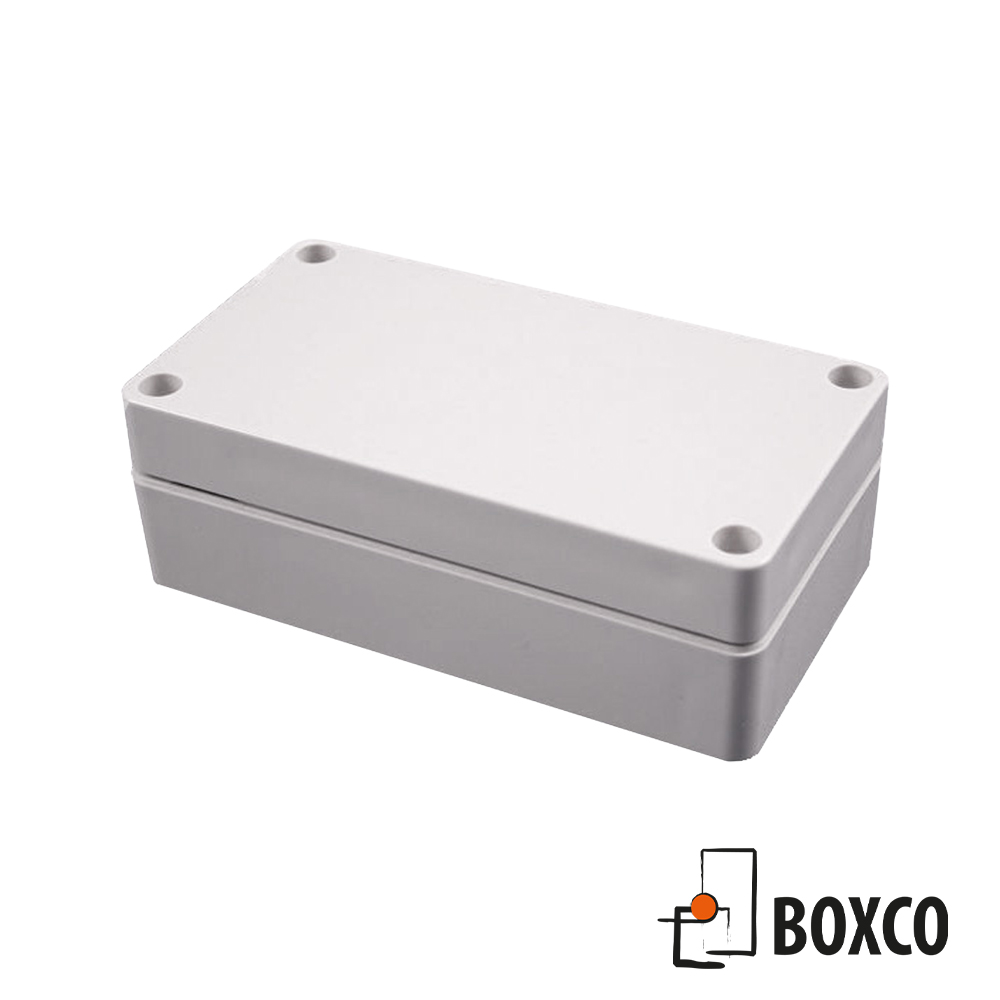

Kopplings och elektronik kapsling i ABS eller PC material från Hammond.

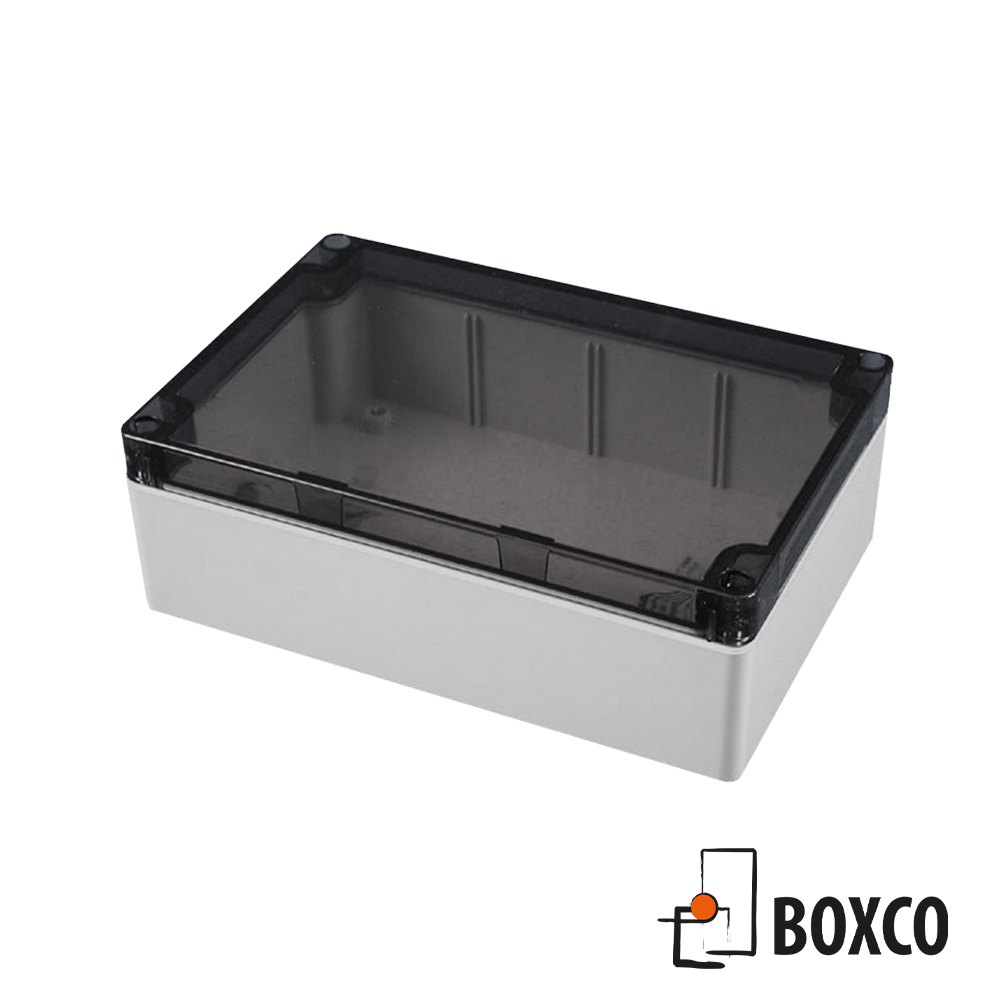

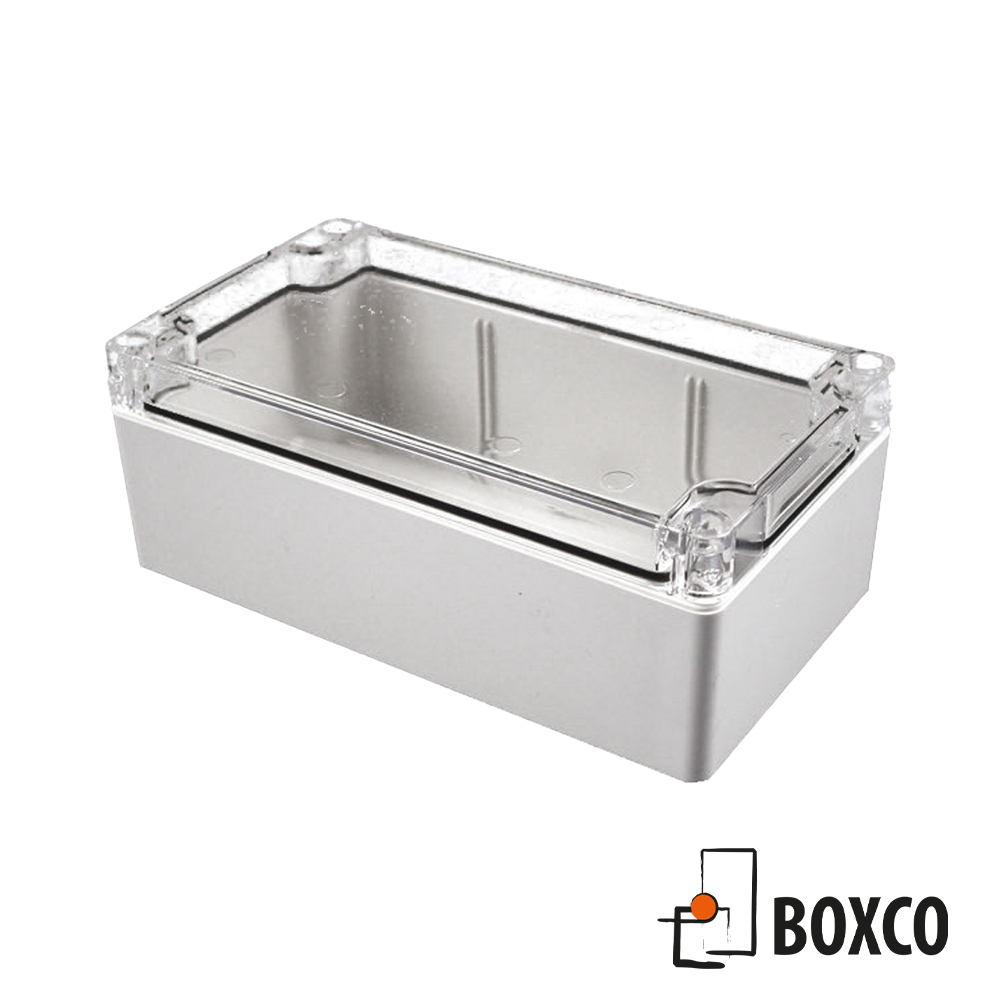

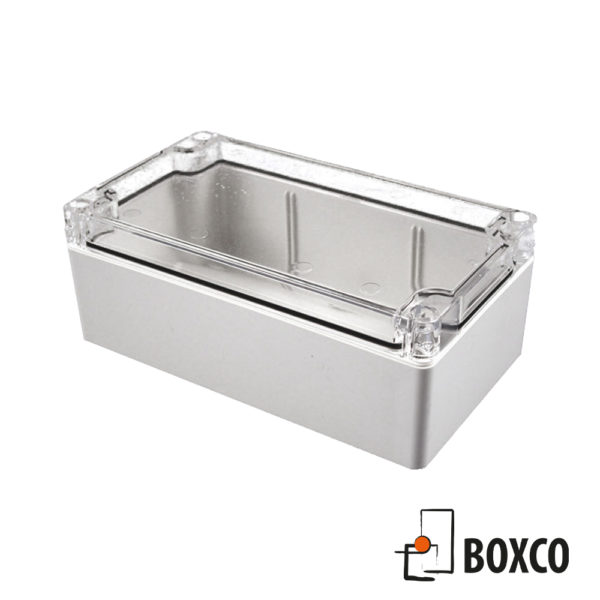

Finns i PC med såväl transparent lock som rökfärgat transparent.
Designad för att möta kapslingsklass IP66 & NEMA 4 (4X, 12 & 13).
Finns i många storlekar från 65x65x40mm till 240x160x90mm.
Kategori: ABS-Polykarbonat
Ladda ner produktkatalog | ||||
|---|---|---|---|---|
| art.nr | L (mm) | W (mm) | H (mm) | CAD |
| (mm) | (mm) | (mm) | ||
| 1554BGY | 65 | 65 | 40 | download |
| 1554EGY | 90 | 90 | 60 | download |
| 1554CGY | 120 | 65 | 40 | download |
| 1554DGY | 120 | 65 | 60 | download |
| 1554FGY | 120 | 90 | 60 | download |
| 1554GGY | 120 | 90 | 80 | download |
| 1554NGY | 120 | 120 | 60 | download |
| 1554PGY | 120 | 120 | 80 | download |
| 1554JGY | 160 | 90 | 60 | download |
| 1554KGY | 160 | 90 | 90 | download |
| 1554RGY | 160 | 160 | 60 | download |
| 1554SGY | 160 | 160 | 90 | download |
| 1554HGY | 180 | 120 | 60 | download |
| 1554TGY | 180 | 120 | 90 | download |
| 1554UGY | 200 | 120 | 90 | download |
| 1554VGY | 240 | 160 | 90 | download |
| ||||
|---|---|---|---|---|
| art.nr | L (mm) | W (mm) | H (mm) | CAD |
| (mm) | (mm) | (mm) | ||
| 1554B2GY | 65 | 65 | 40 | download |
| 1554E2GY | 90 | 90 | 60 | download |
| 1554C2GY | 120 | 65 | 40 | download |
| 1554D2GY | 120 | 65 | 60 | download |
| 1554F2GY | 120 | 90 | 60 | download |
| 1554G2GY | 120 | 90 | 80 | download |
| 1554N2GY | 120 | 120 | 60 | download |
| 1554P2GY | 120 | 120 | 80 | download |
| 1554J2GY | 160 | 90 | 60 | download |
| 1554K2GY | 160 | 90 | 90 | download |
| 1554R2GY | 160 | 160 | 60 | download |
| 1554S2GY | 160 | 160 | 90 | download |
| 1554H2GY | 180 | 120 | 60 | download |
| 1554T2GY | 180 | 120 | 90 | download |
| 1554U2GY | 200 | 120 | 90 | download |
| 1554V2GY | 240 | 160 | 90 | download |
| ||||
|---|---|---|---|---|
| art.nr | L (mm) | W (mm) | H (mm) | CAD |
| (mm) | (mm) | (mm) | ||
| 1554B2GYCL | 65 | 65 | 40 | download |
| 1554E2GYCL | 90 | 90 | 60 | download |
| 1554C2GYCL | 120 | 65 | 40 | download |
| 1554D2GYCL | 120 | 65 | 60 | download |
| 1554F2GYCL | 120 | 90 | 60 | download |
| 1554G2GYCL | 120 | 90 | 80 | download |
| 1554N2GYCL | 120 | 120 | 60 | download |
| 1554P2GYCL | 120 | 120 | 80 | download |
| 1554J2GYCL | 160 | 90 | 60 | download |
| 1554K2GYCL | 160 | 90 | 90 | download |
| 1554R2GYCL | 160 | 160 | 60 | download |
| 1554S2GYCL | 160 | 160 | 90 | download |
| 1554H2GYCL | 180 | 120 | 60 | download |
| 1554T2GYCL | 180 | 120 | 90 | download |
| 1554U2GYCL | 200 | 120 | 90 | download |
| 1554V2GYCL | 240 | 160 | 90 | download |
| ||||
|---|---|---|---|---|
| art.nr | L (mm) | W (mm) | H (mm) | CAD |
| (mm) | (mm) | (mm) | ||
| 1554B2GYSL | 65 | 65 | 40 | download |
| 1554E2GYSL | 90 | 90 | 60 | download |
| 1554C2GYSL | 120 | 65 | 40 | download |
| 1554D2GYSL | 120 | 65 | 60 | download |
| 1554F2GYSL | 120 | 90 | 60 | download |
| 1554G2GYSL | 120 | 90 | 80 | download |
| 1554N2GYSL | 120 | 120 | 60 | download |
| 1554P2GYSL | 120 | 120 | 80 | download |
| 1554J2GYSL | 160 | 90 | 60 | download |
| 1554K2GYSL | 160 | 90 | 90 | download |
| 1554R2GYSL | 160 | 160 | 60 | download |
| 1554S2GYSL | 160 | 160 | 90 | download |
| 1554H2GYSL | 180 | 120 | 60 | download |
| 1554T2GYSL | 180 | 120 | 90 | download |
| 1554U2GYSL | 200 | 120 | 90 | download |
| 1554V2GYSL | 240 | 160 | 90 | download |
