technoBOX

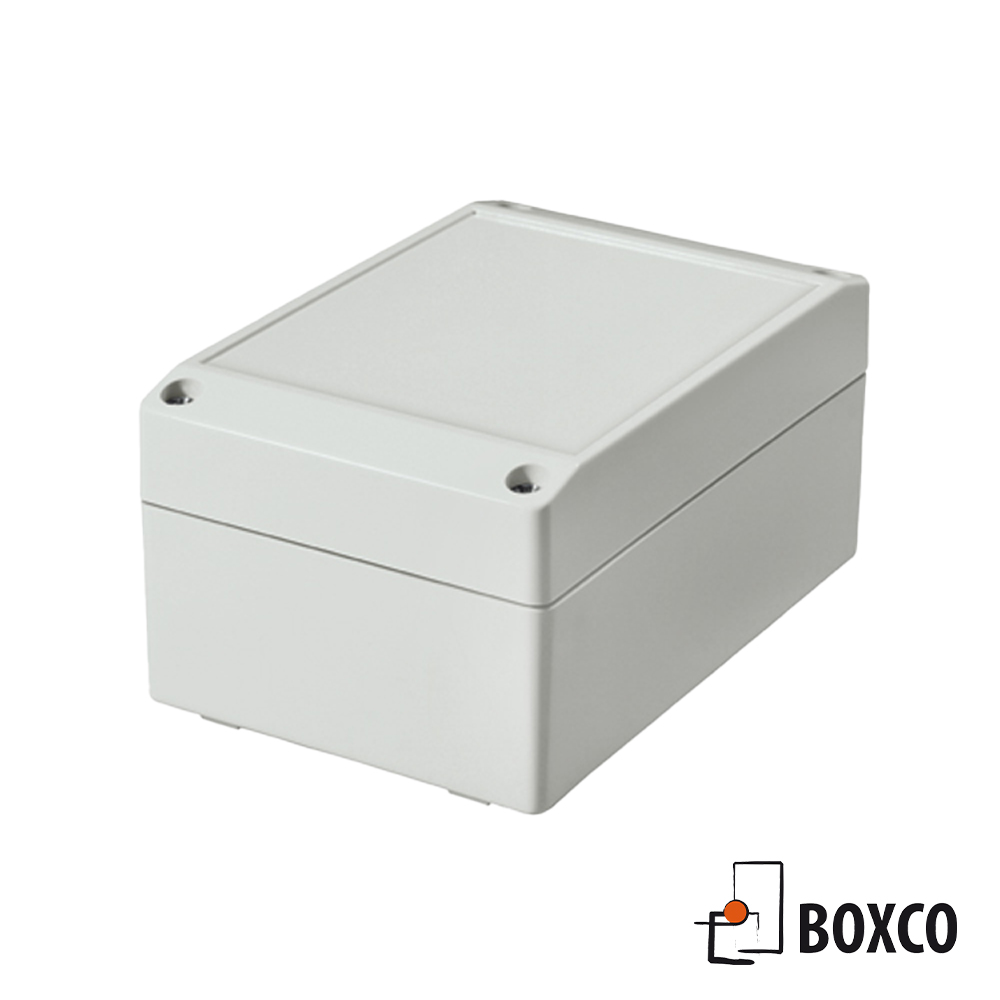

Modern design av ABS kapsling. Kompatibla infästningsmått med aluKOM och polyKOM. Tillgänglig i 10 storlekar.

Kategori: ABS-Polykarbonat

ABS-Gehaeuse-technoBOX-Rolec_TitleImageWide_TitleImageWide


Egenskaper

Modern and attractive enclosures technoBOX
for Electronic and electrical equipment

  • Durable ABS enclosures in a useful range
    of 10 industry standard sizes

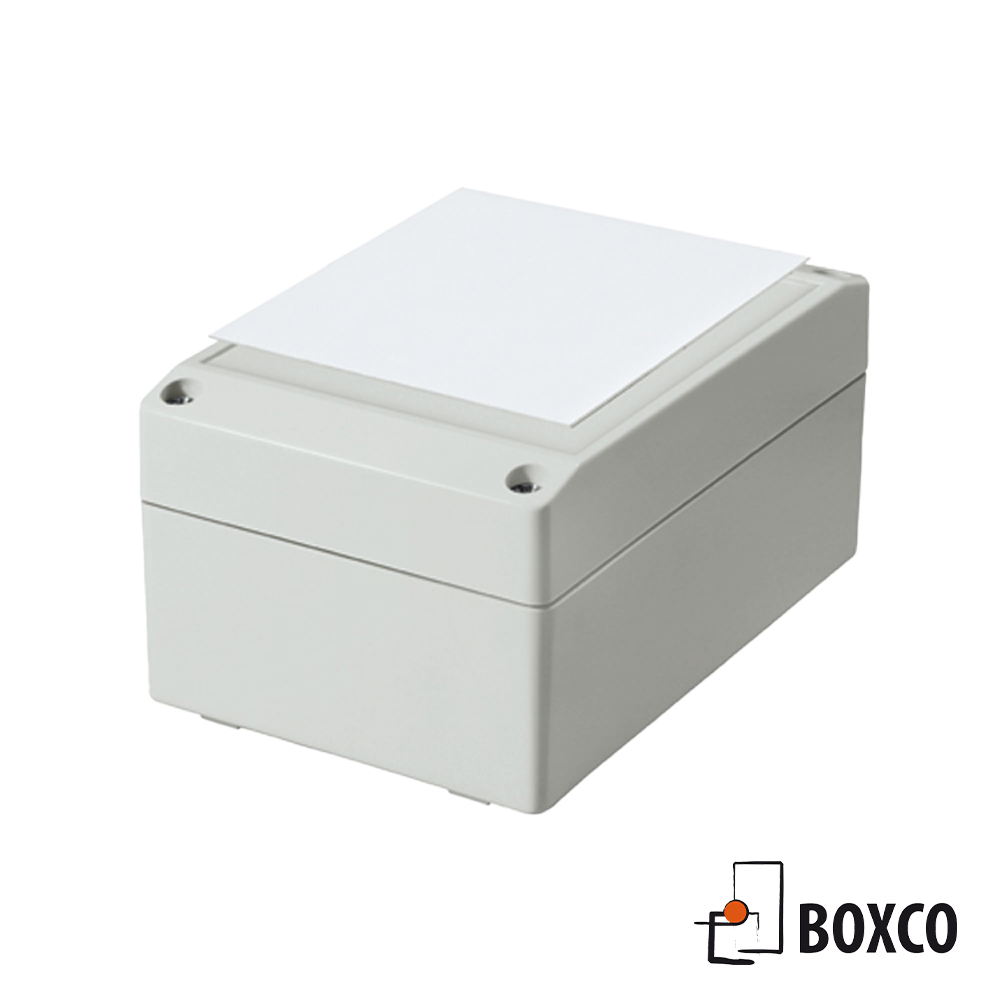

  • Recessed lid for secure fitting of a membrane
    keypad or product label (not TBA 060)
  • Captured lid fixing screws
  • Screw bosses in base and lid for mounting components

Teknisk data

IP rating:
IP66 / EN 60529
Material:
ABS (halogen free)
1° mould slope for moulding ejection
See material specifications for more information
Combustion behaviour:
UL 94 HB
Surface resistance:
ABS 4 x 1014 Ohm
Insulation:
Fully insulated VDE 0100
Colour:
Light grey, RAL 7035
Special colours on request
Lid gasket:
Moulded TPE gasket, silicon free
EMC Shielding: Option code: EMV: Enclosures supplied with EMC conductive gasket and internal EMC conductive coating
Lid screws:
Captured stainless steel screws
Mounting:
Separate screw ports outside of the enclosure interior
Certification:
GOST R (Russian Standards)
Technical Notes:
Technical specifications for the products on this page may be subject to change at any time without prior notice. Please check any critical specifications or criteria by contacting our sales team before ordering your products. No liability is accepted for typographical or any other errors.




Certifieringar


MontageplattaDIN skenaSjälvhäftande frontplattaYttre montagefötterGångjärnFötterEMC avskärmningLadda ner ritning
Typeart.nrL (mm)W (mm)H (mm)DEVikt (g)MTFASTFEMCCAD
TBA 060220.060.000665135533850closecheckclosecheckclosecheckcheckdownload
TBA 080220.080.0008381607050170checkcheckcheckcheckclosecheckcheckdownload
TBA 082220.082.000121816010850220checkcheckcheckcheckcheckcheckcheckdownload
TBA 084220.084.000161816014850220checkcheckcheckcheckcheckcheckcheckdownload
TBA 102220.102.0001511016013870230checkcheckcheckcheckcheckcheckcheckdownload
TBA 104220.104.0002011016018870300checkcheckcheckcheckcheckcheckcheckdownload
TBA 120220.120.0001231218011090240checkcheckcheckcheckcheckcheckcheckdownload
TBA 122220.122.0002011218018890400checkcheckcheckcheckcheckcheckcheckdownload
TBA 160220.160.00016116180148130450checkcheckcheckcheckcheckcheckcheckdownload
TBA 162220.162.00024116180228130650checkcheckcheckcheckcheckcheckcheckdownload
