technoPLUS

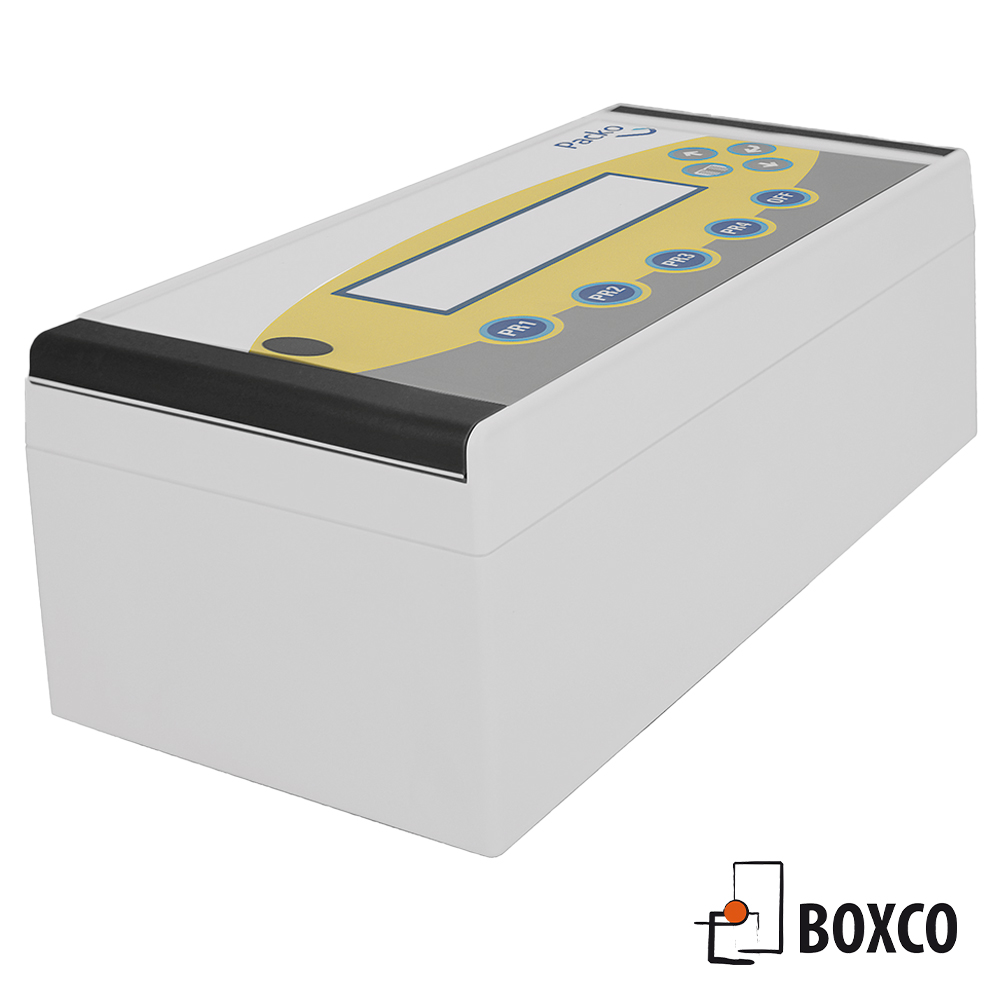

Rolec släpper en ny plastkapsling i materialet Luran, ett mycket tåligt material jämfört med ABS-plast.
Tillänglig i 5 storlekar.

Man använder sig av den senaste designen med täcklock för skruvarna precis som på aluPLUS

Kategori: ABS-Polykarbonat

Ladda ner produktkatalog

ABS-Gehaeuse-technoPLUS-Rolec_TitleImageWide_TitleImageWide


Egenskaper

Advanced enclosures moulded in UV stable plastic for outdoor electronics equipment

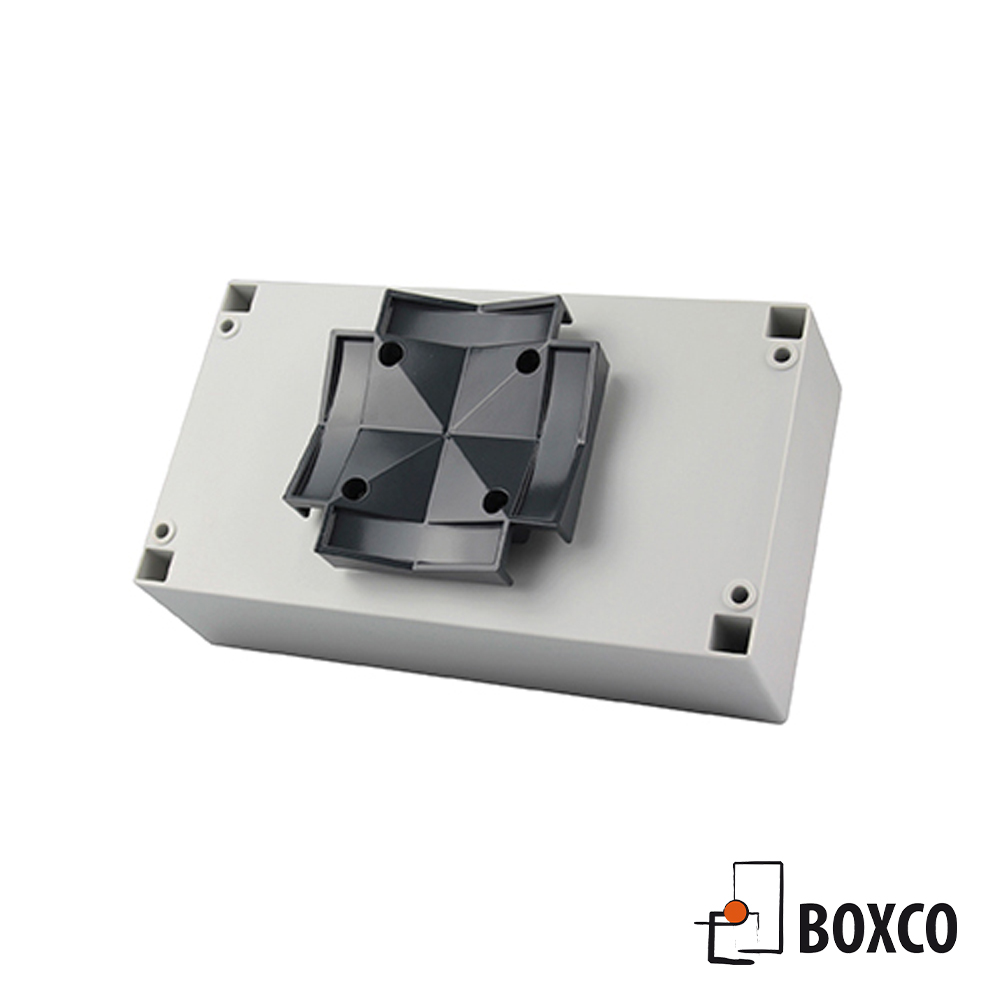

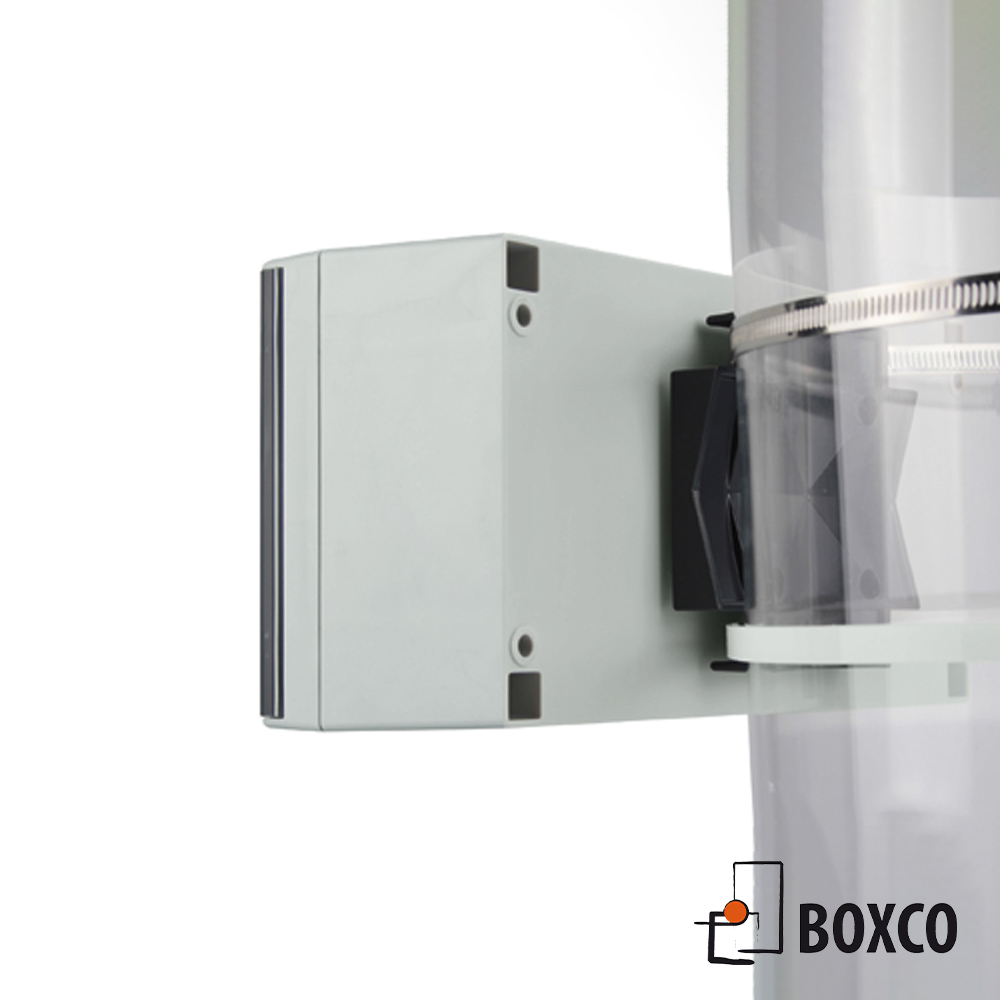

  • Standard fixings on the outside for the accessory pole/mast attachment

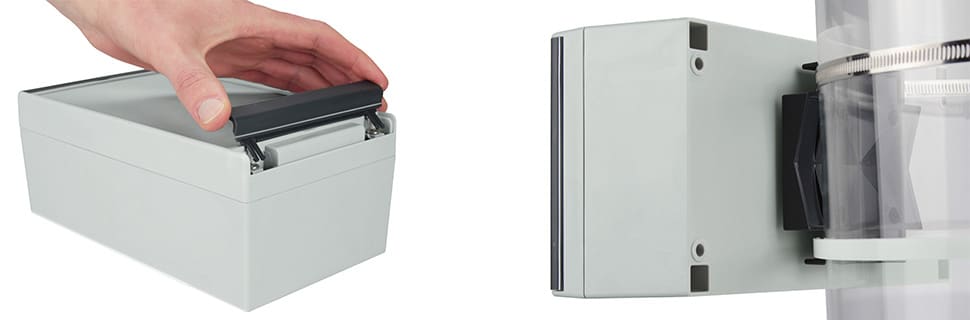

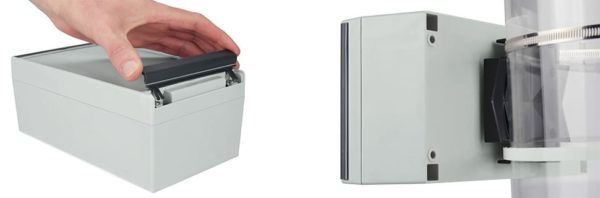

  • Hinged lid trims hide all of the enclosure fixing screws for added security

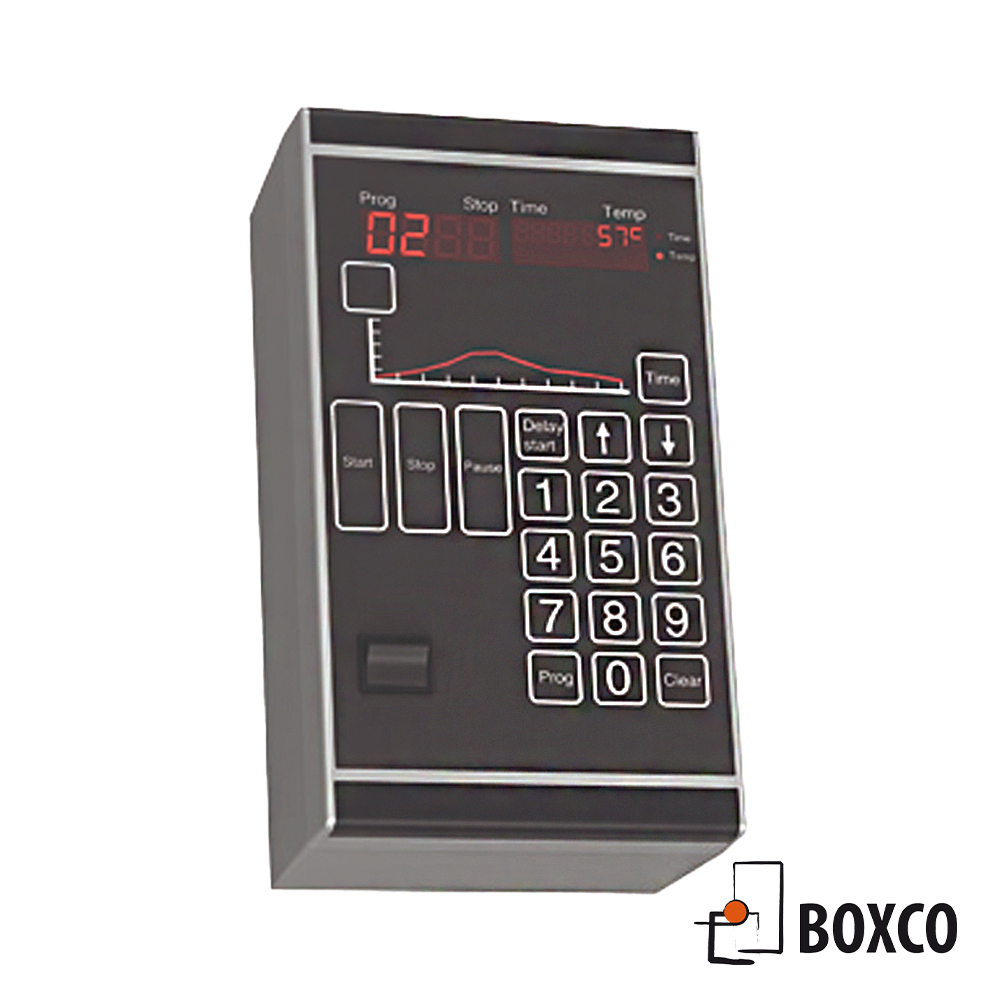

  • Recessed area in the lid for mounting a membrane keypad or product label
  • Captured lid fixing screws
  • Screw bosses in base and lid for mounting components
  • Lid retaining straps hold the lid in place
    when it is opened

Teknisk data

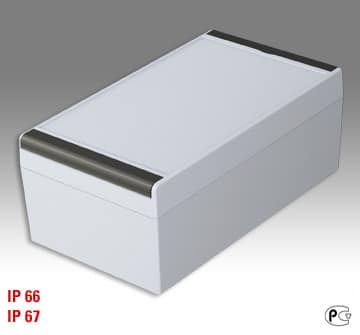

  • IP rating:

    IP 66 / EN 60529
    IP 67 / EN 60529 (Optional)

    Enclosure:
    ASA LURAN, UV stabilised
    2° mould slope for casting ejection, internal measures
    diminishing circulatory towards enclosure bottom by 2°.
    Lid straps:
    PP (polypropylene). RAL 7040, Window grey
    Lid trims:
    Plastic POM (polyoxymethylene) RAL 7030, stone grey
    Pole/mast
    attachment:
    ASA LURAN, UV stabilized: RAL 7030, stone grey
    Combustion behaviour:
    UL94 HB
    Insulation:
    Fully insulated VDE 0100
    Enclosure
    Colour:
    Light grey, RAL 7035
    Special colours on request
    Lid gasket:
    Silicone gasket (-50°C up to +140°C)
    EMC gasket:
    Optional EMC-Gasket (-55°C to +160°C)
    Lid screws:
    Captured stainless steel screws 1.4567 (V2A)
    Mounting:
    Separate screw ports outside of the enclosure interior
    Certification:
    GOST R (Russian Standards)
    Technical Notes:
    Technical specifications for the products on this page may be subject to change at any time without prior notice. Please check any critical specifications or criteria by contacting our sales team before ordering your products. No liability is accepted for typographical or any other errors.

Certifieringar


Part No. Rolec Type L W H D E Weight

290.090.000

 TP 090 130 90 70 112 44 260g
290.092.000  TP 092 180 90 70 162 44 330g
290.112.000  TP 112 160 110 70 142 64 340g
290.132.000  TP 132 230 130 90 212 84 580g
290.172.000  TP 172 270 170 90 252 124 760g
