Ladda ner produktkatalog| ADR-150 / ADR-150TW | Testmetod | Typiskt värde |
| Temperaturområde | IEC 216 | -75°C till +150°C |
| Minsta krymptemperatur | 175°C | |
| Draghållfasthet | ASTM D 2671 | > 13 MPa |
| Töjbarhet | ASTM D 2671 | > 500% |
| Töjbarhet vid åldring 160°C/168 tim | > 220% | |
| Värmebeständighet 215°C/4 tim | Ej sprickbildning, droppfri | |
| Flexibilitet | ASTM D 882 | < 50 Mpa |
| Volymresistens | ASTM D 876 | > 10^9Ω cm |
| Flammskydd | ASTM D 2671 | Självsläckande inom 15 sek |
| Draghållfasthet i bränsle | ISO 37 (Diesel, Olja, Smörjmedel) | > 10 MPa |
| Töjbarhet i bränsle | ISO 37 (Diesel, Olja, Smörjmedel) | > 300% |
Material : Crosslinked modified elastomer
Features : Operation temp.: -65°C to +150°C • High flame retardant
High abrasion and cut resistance • Excellent diesel,
hydraulic fl uids resistance • Shrink ration: 2:1
Meets: SAE-AMS-DTL-23053/16
Colors : Black
| Properties | Test method | Typical data |
| Tensile strength | ASTM D 2671 | 12 Mpa Min. |
| Elongation at break | ASTM D 2671 | 300% Min. |
| Tensile strength after ageing | 158°C 168hours | 8 Mpa Min. |
| Elongation at break after ageing | 158°C 168hours | 200% Min. |
| Dieslectric strenght | ASTM D 150 | 17.5kV/mm |
| Volume resistance | ASTM D 2671 | 109.Ω·cm Min. |
| Flammability | ASTM D 2671 | Self-extinguish in 15 sec. |
| Fuilds resistance tensile strength/ Fluid resistance elongation |
ISO 37, 24hrs (diesel 70°C, Hydraulic 70°C, Lubricant 100°C) |
10 Mpa Min./ 200% Min. |

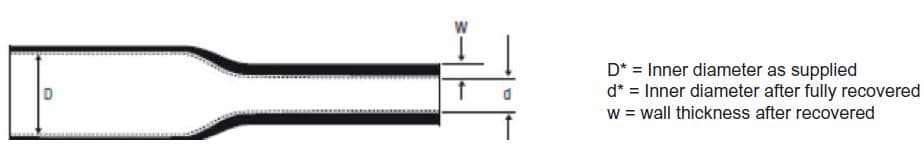

| Dimensioner: | ||||
| Part. No | D/mm Min | d/mm Max | W/mm | wire/cable diameter mm |
| A DR-25-1/8-0 | 3,2 | 1,6 | 1,76+/-0,15 | 1,9-2,9 |
| A DR-25-3/16-0 | 4,8 | 2,4 | 0.85+/-0.15 | 2.9-4.3 |
| A DR-25-1/4-0 | 6,4 | 3,2 | 0.90+/-0.15 | 3.8-5.8 |
| A DR-25-3/8-0 | 9,5 | 4,8 | 1.02+/-0.15 | 5.7-8.5 |
| A DR-25-1/2-0 | 12,7 | 5,4 | 1.22+/-0.20 | 7.7-11.5 |
| A DR-25-3/4-0 | 19,1 | 9,5 | 1.45+/-0.25 | 11.4-17.0 |
| A DR-25-1-0 | 25,4 | 12,7 | 1.78+/-0.25 | 15.2-23.0 |
| A DR-25-1-1/2 | 38,1 | 19,1 | 2.41+/-0.40 | 23.0-34.0 |
| A DR-25-2-0 | 50,8 | 25,4 | 2.80+/-0.40 | 31.0-45.0 |
| A DR-25-3-0 | 76,2 | 38,1 | 3.15+/-0.50 | 46.0-68.0 |
| A DR-25-4-0 | 101,6 | 50 | 3.50+/-0.50 | 61.0-91.0 |
