DES – Ramar för kabelgenomföring

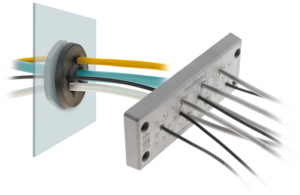

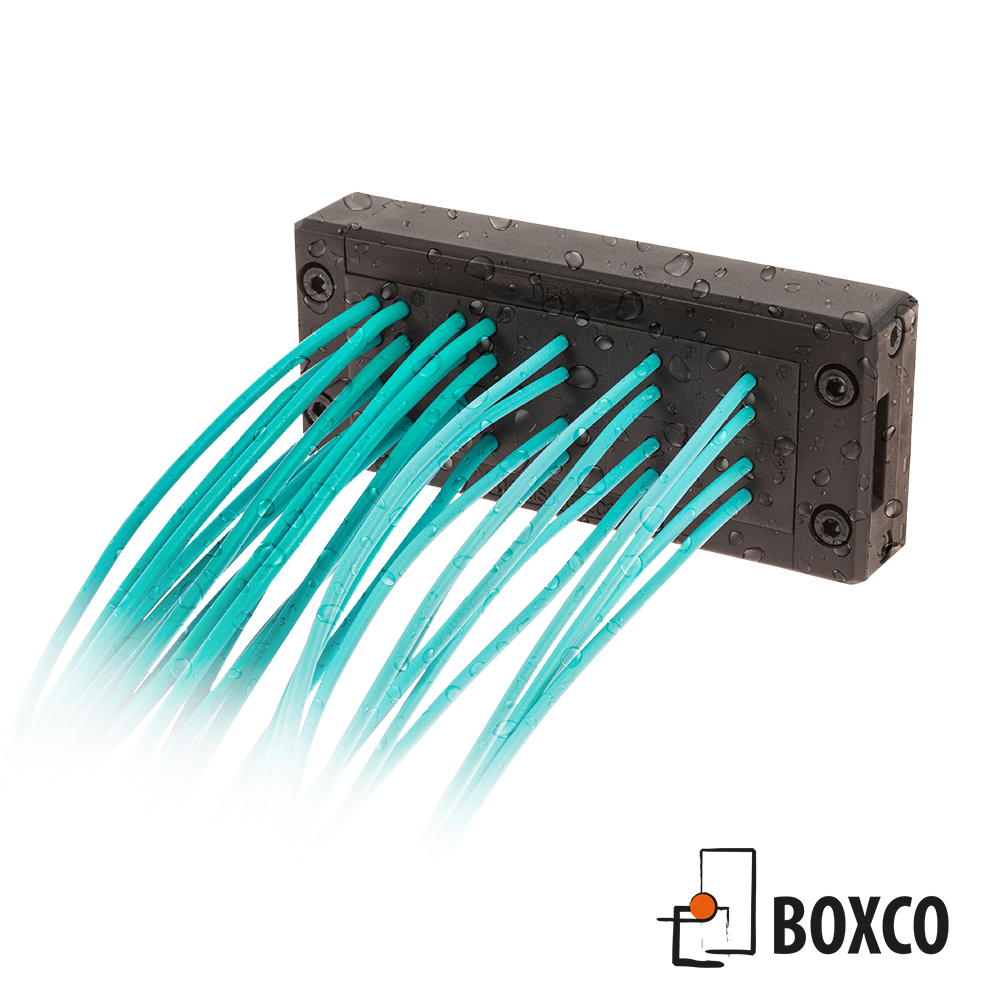

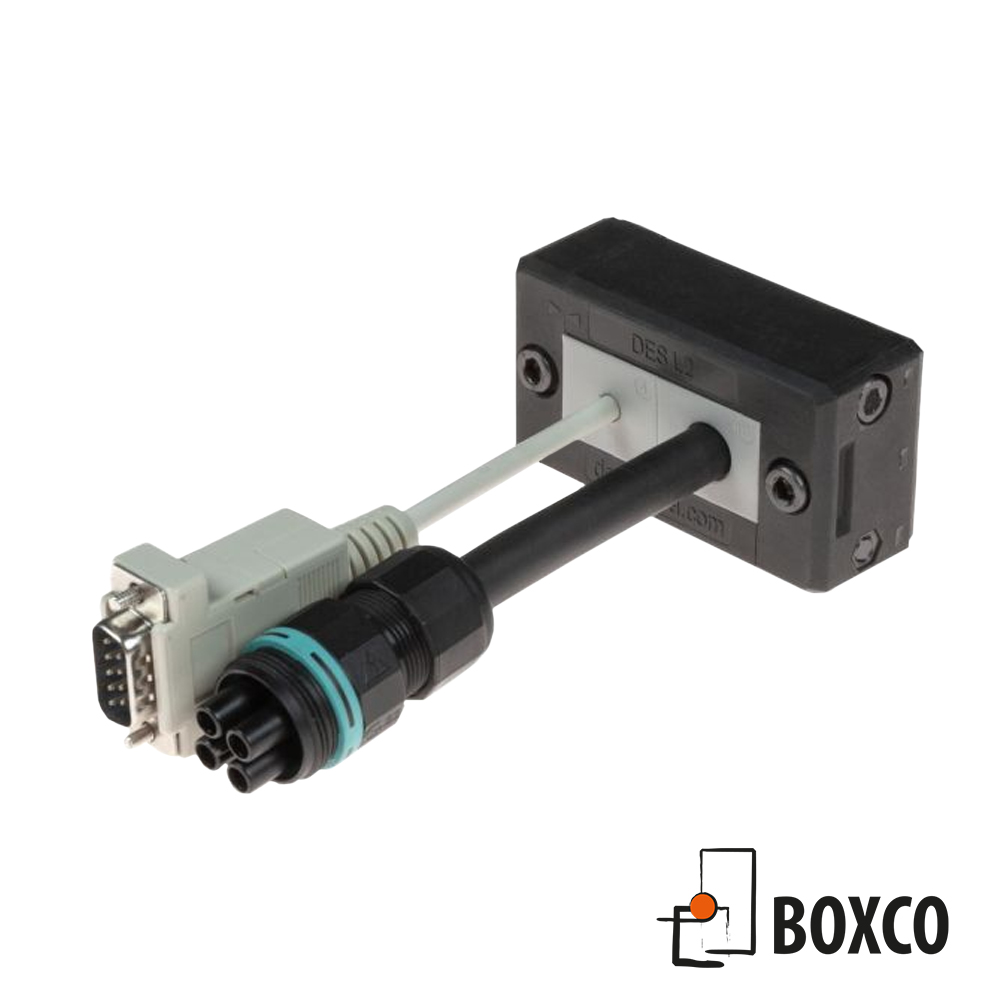

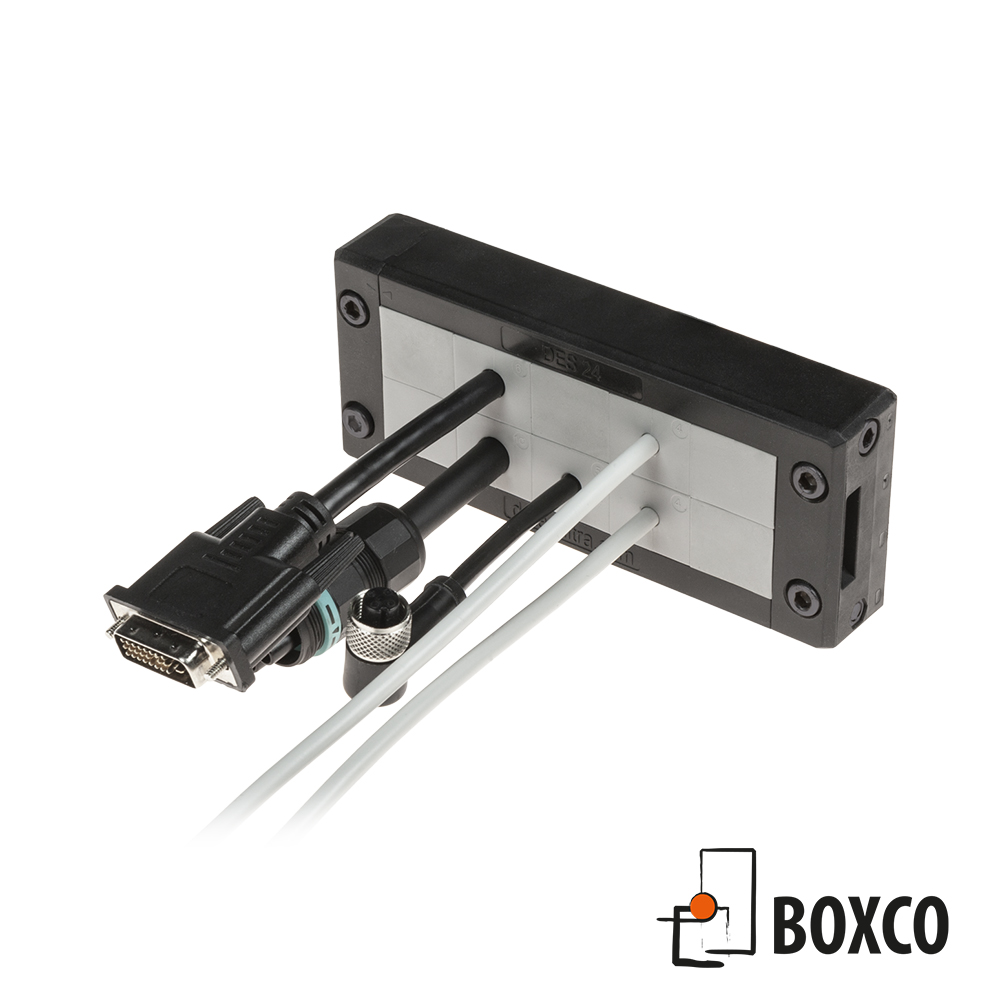

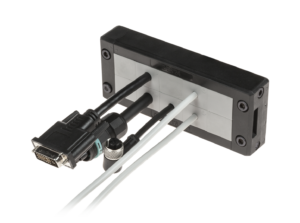

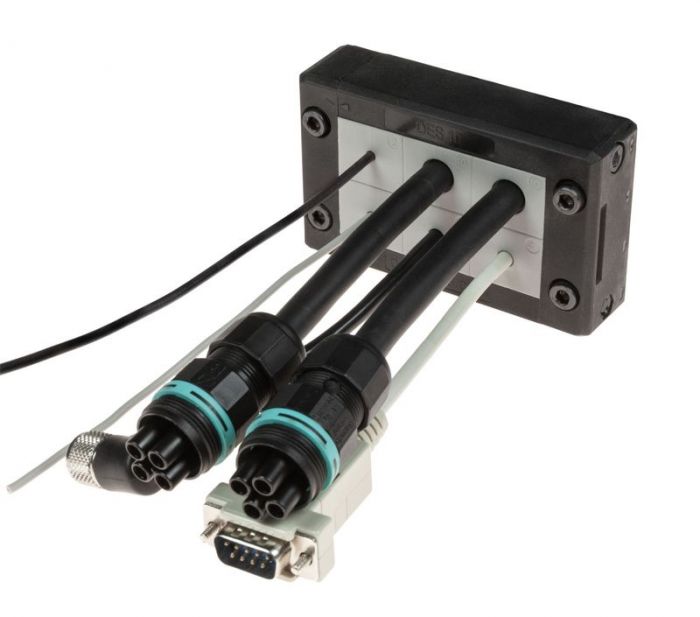

The divisible DES frame allows the passage of cables, both with or without connectors, with diameters ranging from 2 to 35 mm
thanks to the various cable holders available. The lateral closure of the frame provides strain relief and water protection.

The opening grommets can be freely positioned within the frame.
IP66 or NEMA 4X protection can be achieved with any combination of grommets (single, double, quadruple, breakout, large).

The moulded seal and therefore the complete V0 self-extinguishing nature of the system make the DES series a unique product.

Kategori: Delbara Kabelgenomföringar

Ladda ner produktkatalog

Egenskaper

Multiple configurations in the same frame and highest water protection with all the combinations of grommets.
Integrated gasket
ATEX version on request
Threaded inserts version on request

Teknisk data

Frame screws in AISI304 Stainless Steel
IP66 certified, Nema 4X* with any combination of grommets
Strain relief according to EN 62444
Robust construction IK10

*4X for indoor use only
