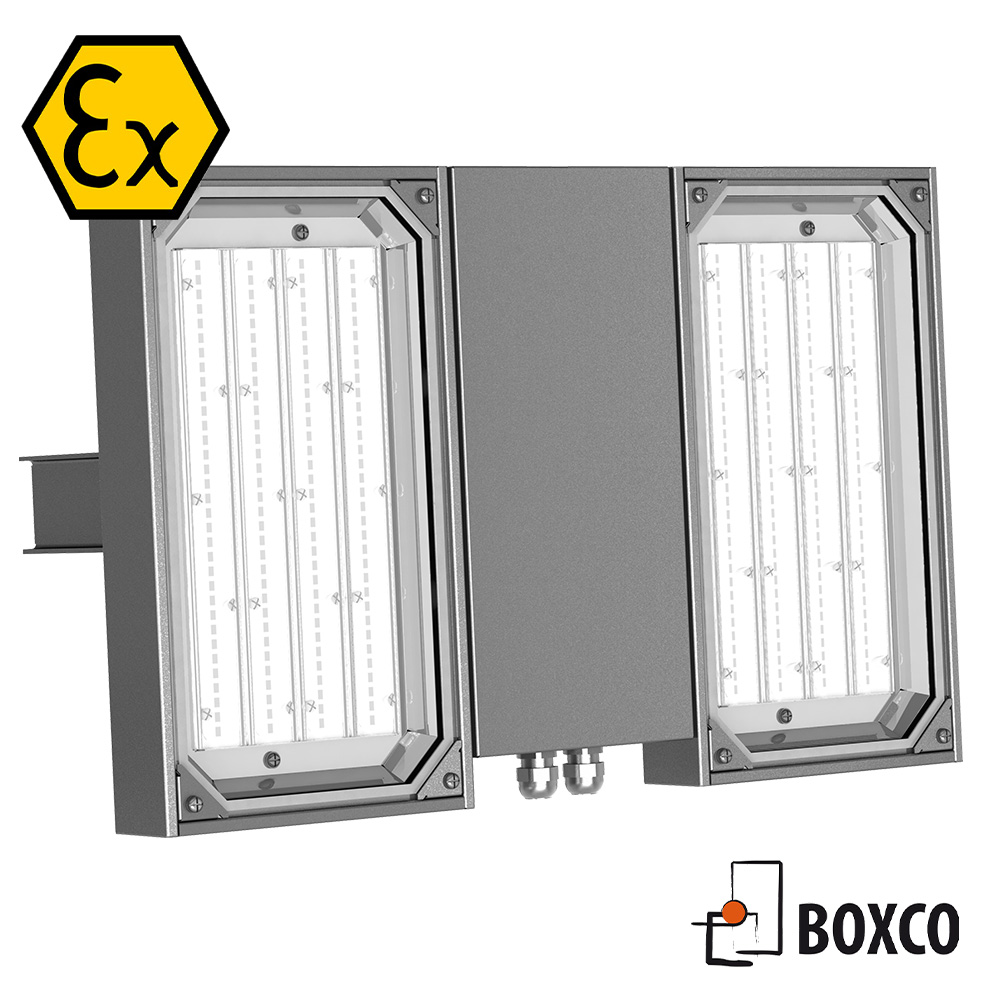

EXL380LED (Zon 21, 2, 22)

EXL380LED

Explosionproof light fitting floodlight with LED modules and special optics.
Designed to use in zones 21 and 2,22 of gas and steam of flammables liquids, as well as combustible dusts and fibres explosion hazard areas.

Download manual here…

Kategori: Belysning EX

Ladda ner produktkatalog

Egenskaper

CONSTRUCTION:
Housing: stainless steel
Diffuser: tempered glass

MOUNTING:
Light fitting for direct installation with use of bracket.

ELECTRICAL UNIT:
Voltage: 230V, 0/50-60Hz
Terminal block: 3x2,5 mm2 (L, PE, N) or 5x2.5 mm2 (L1, L2, L3, PE, N)

CERTIFICATE:
KDB 15ATEX0049X
IECEx KDB 20.0003X
II 3G Ex ec op is IIC T4 Gc
II 2D Ex tb op is IIC T70°C or T80°C Db

Teknisk data

Light source: LED modules
Protection class: I
Protection degree: IP65
CRI: >80
Power factor:  >0,97
Long lifetime:  >70 000 hours L80B10
Colour temperature: 4000K
Ambient temperature: od -40°C do +40°C


Certifieringar


Type Length in mm Width in mm

Luminous
Flux(lm)

Power Consumption
(W)
Wide Beam
EXL380LED-045-E4 405 386 6570 53
EXL380LED-090-E8 642 386 13244 98
EXL380LED-130-E12 885 386 19215 146
Narrow Beam
EXL380LED-045-E4 405 386 7423 53
EXL380LED-090-E8 642 386 13299 98
EXL380LED-130-E12 885 386 20748 146
