Egenskaper:
Metalladapter hexagonal rundad och tandad eller rundad slät. För övergång mellan M till Pg, M till NPT, Pg till M, Pg till NPT och Gas till Pg gänga. Tillverkare är HUGRO.
Kategori: Adapter-Övergång
Ladda ner produktkatalog| Material | Nickelpläterad mässing |
Fler storlekar finns vid förfrågan.
 | ||||||
|---|---|---|---|---|---|---|

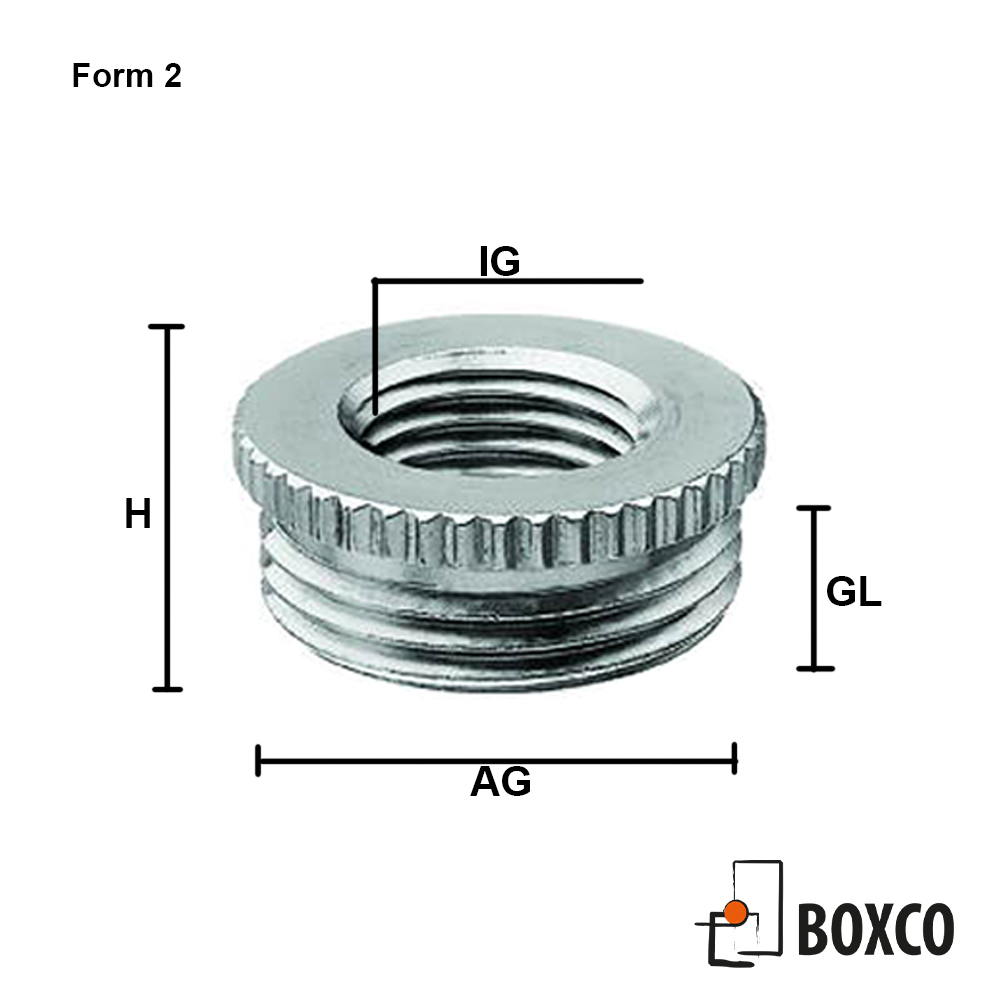

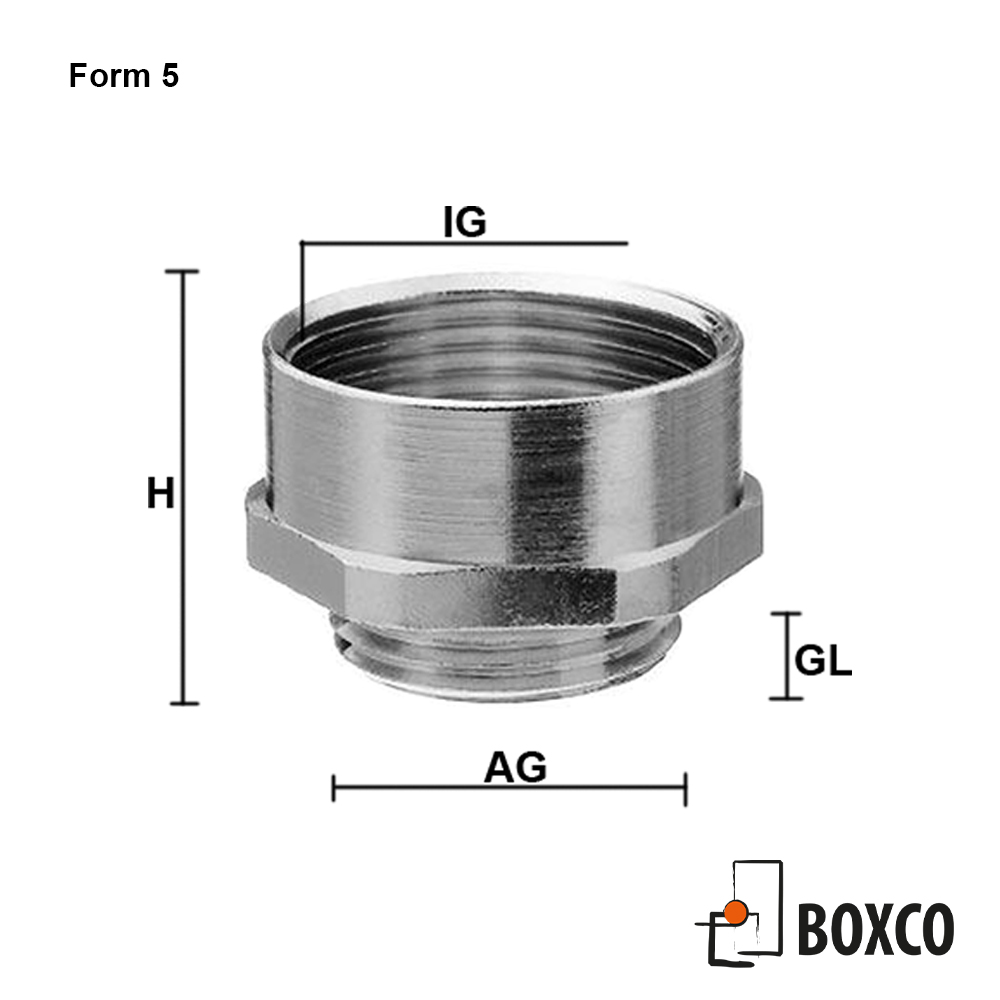

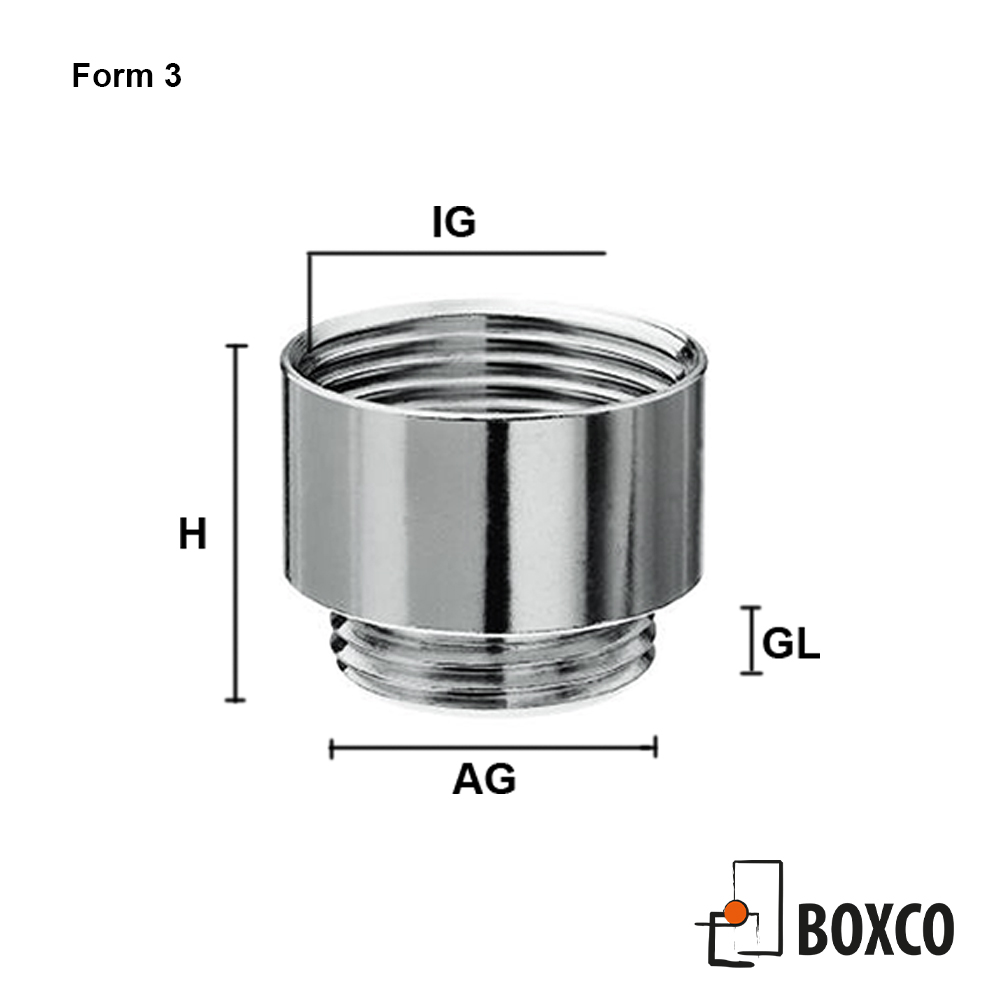

| art.nr | Yttergänga | Innergänga | Nyckelvidd mm | H mm | GL mm | Form |
| 531.1707.20 | M 16 x 1.5 | Pg 7 | 18 | 7.5 | 5 | 2 |
| 531.2009.20 | M 20 x 1.5 | Pg 9 | 22 | 9 | 6 | 2 |
| 531.2511.20 | M 25 x 1.5 | Pg 11 | 27 | 10 | 7 | 2 |
| 531.2513.20 | M 25 x 1.5 | Pg 13.5 | 27 | 10 | 7 | 2 |
| 531.2516.20 | M 25 x 1.5 | Pg 16 | 27 | 10 | 7 | 2 |
| 531.3216.20 | M 32 x 1.5 | Pg 16 | 34 | 11 | 8 | 2 |
| 531.3221.20 | M 32 x 1.5 | Pg 21 | 34 | 11 | 8 | 2 |
| 531.4021.20 | M 40 x 1.5 | Pg 21 | 43 | 11.5 | 8 | 2 |
| 531.5029.20 | M 50 x 1.5 | Pg 29 | 53 | 12.5 | 9 | 2 |
| 531.6342.20 | M 63 x 1.5 | Pg 42 | 66 | 14 | 10 | 2 |
| 531.1507.30 | M 12 x 1.5 | Pg 7 | 14 | 15 | 5 | 3 |
| 531.1709.30 | M 16 x 1.5 | Pg 9 | 18 | 15.5 | 5 | 3 |
| 531.2011.30 | M 20 x 1.5 | Pg 11 | 22 | 17 | 6 | 3 |
| 531.2013.30 | M 20 x 1.5 | Pg 13.5 | 22 | 18.5 | 6 | 3 |
| 531.2016.30 | M 20 x 1.5 | Pg 16 | 24 | 19.5 | 6 | 3 |
| 531.2516.30 | M 25 x 1.5 | Pg 16 | 28 | 19 | 6.5 | 3 |
| 531.2521.30 | M 25 x 1.5 | Pg 21 | 30 | 22 | 7 | 3 |
| 531.3229.30 | M 32 x 1.5 | Pg 29 | 39 | 24.5 | 8 | 3 |
| 531.4036.30 | M 40 x 1.5 | Pg 36 | 50 | 27.5 | 8 | 3 |
| 531.5042.30 | M 50 x 1.5 | Pg 42 | 57 | 31 | 9 | 3 |
| 531.6348.30 | M 63 x 1.5 | Pg 48 | 68 | 33 | 10 | 3 |
| 531.1719.50 | M 16 x 1.5 | NPT 1/2 | 24 | 23 | 6 | 5 |
| 531.2019.50 | M 20 x 1.5 | NPT 1/2 | 27 | 22.5 | 6 | 5 |
| 531.2519.50 | M 25 x 1.5 | NPT 1/2 | 30 | 25 | 7 | 5 |
| 531.2535.50 | M 25 x 1.5 | NPT 3/4 | 32 | 25 | 10 | 5 |
| 531.3275.50 | M 32 x 1.5 | NPT 1 | 40 | 30 | 10 | 5 |
| 531.3276.50 | M 32 x 1.5 | NPT 1 1/4 | 46 | 33 | 8 | 5 |
| 531.1117.10 | Pg 11 | M 16 x 1.5 | 22 | 11 | 7 | 1 |
| 531.1620.10 | Pg 16 | M 20 x 1.5 | 24 | 9.5 | 6.5 | 1 |
| 531.2125.10 | Pg 21 | M 25 x 1.5 | 30 | 10.5 | 7 | 1 |
| 531.1620.20 | Pg 16 | M 20 x 1.5 | 24 | 9.5 | 6.5 | 2 |
| 531.2120.20 | Pg 21 | M 20 x 1.5 | 30 | 10 | 7 | 2 |
| 531.2125.20 | Pg 21 | M 25 x 1.5 | 30 | 10 | 7 | 2 |
| 531.2925.20 | Pg 29 | M 25 x 1.5 | 39 | 11.5 | 8 | 2 |
| 531.0917.30 | Pg 9 | M 16 x 1.5 | 20 | 16.5 | 6 | 3 |
| 531.1120.30 | Pg 11 | M 20 x 1.5 | 22 | 19 | 6.5 | 3 |
| 531.1320.30 | Pg 13.5 | M 20 x 1.5 | 22 | 19 | 6.5 | 3 |
| 531.1625.30 | Pg 16 | M 25 x 1.5 | 27 | 21 | 6.5 | 3 |
| 531.1119.50 | Pg 11 | NPT 1/2 | 27 | 20.5 | 6 | 5 |
| 531.1319.50 | Pg 13.5 | NPT 1/2 | 27 | 22.5 | 8 | 5 |
| 531.1619.50 | Pg 16 | NPT 1/2 | 27 | 22.8 | 8 | 5 |
| 531.2119.50 | Pg 21 | NPT 1/2 | 30 | 25 | 7 | 5 |
| 531.2135.50 | Pg 21 | NPT 3/4 | 32 | 25 | 10 | 5 |
| 531.2975.50 | Pg 29 | NPT 1 | 40 | 30 | 10 | 5 |
| 531.3811.30 | G 3/8 | Pg 11 | 20 | 31 | 14 | 3 |
| 531.1211.30 | G 1/2 | Pg 11 | 22 | 25.5 | 6.5 | 3 |
| 531.1216.30 | G 1/2 | Pg 16 | 24 | 26.5 | 14.5 | 3 |
