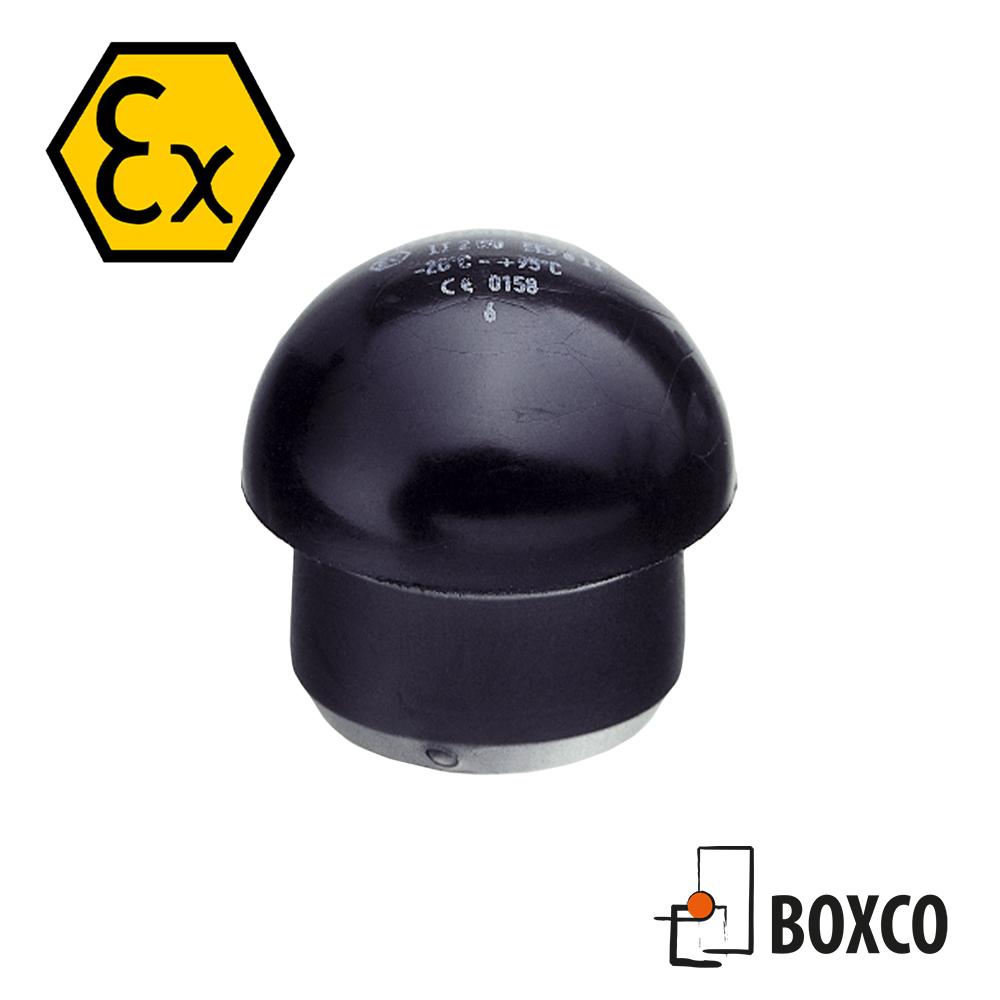

Artikeldata
| art.nr | Gänga | Metall | Plast | D mm | D mm | H mm | L mm |
|---|---|---|---|---|---|---|---|
| 684.07.11 | M 12 + Pg 7 | 14 | 15 | 9.5 | 6.3 | 11.5 | 7 |
| 684.09.11 | M 16 + Pg 9 + 3/8 NPT | 17 | 19 | 11 | 7.8 | 13.5 | 8 |
| 684.11.11 | M 16 + Pg 11 + 3/8 NPT | 20 | 22 | 13.5 | 9.8 | 14.5 | 9 |
| 684.13.11 | M 20 + Pg 13.5 + 1/2 NPT | 22 | 24 | 16 | 11.8 | 18 | 10 |
| 684.16.11 | M 20 + Pg 16 + 1/2 NPT | 24 | 27 | 18.5 | 13.8 | 19 | 10 |
| 684.21.11 | M 25 + Pg 21 + 3/4 NPT | 30 | 33 | 22 | 17.8 | 22 | 11 |
| 684.29.11 | M 32 + Pg 29 + 1 + 1 1/4 | 40 | 42 | 29 | 25 | 25 | 15 |
| 684.36.11 | M 40 + Pg 36 + 1 1/2 NPT | 50 | 53 | 38 | 32 | 28 | 17 |
| 684.42.11 | M 50 + Pg 42 | 57 | 60 | 43 | 38 | 30 | 18 |
| 684.48.11 | M 63 + Pg 48 | 68 + 64 | 68 + 65 | 49 | 44 | 30 | 18 |
