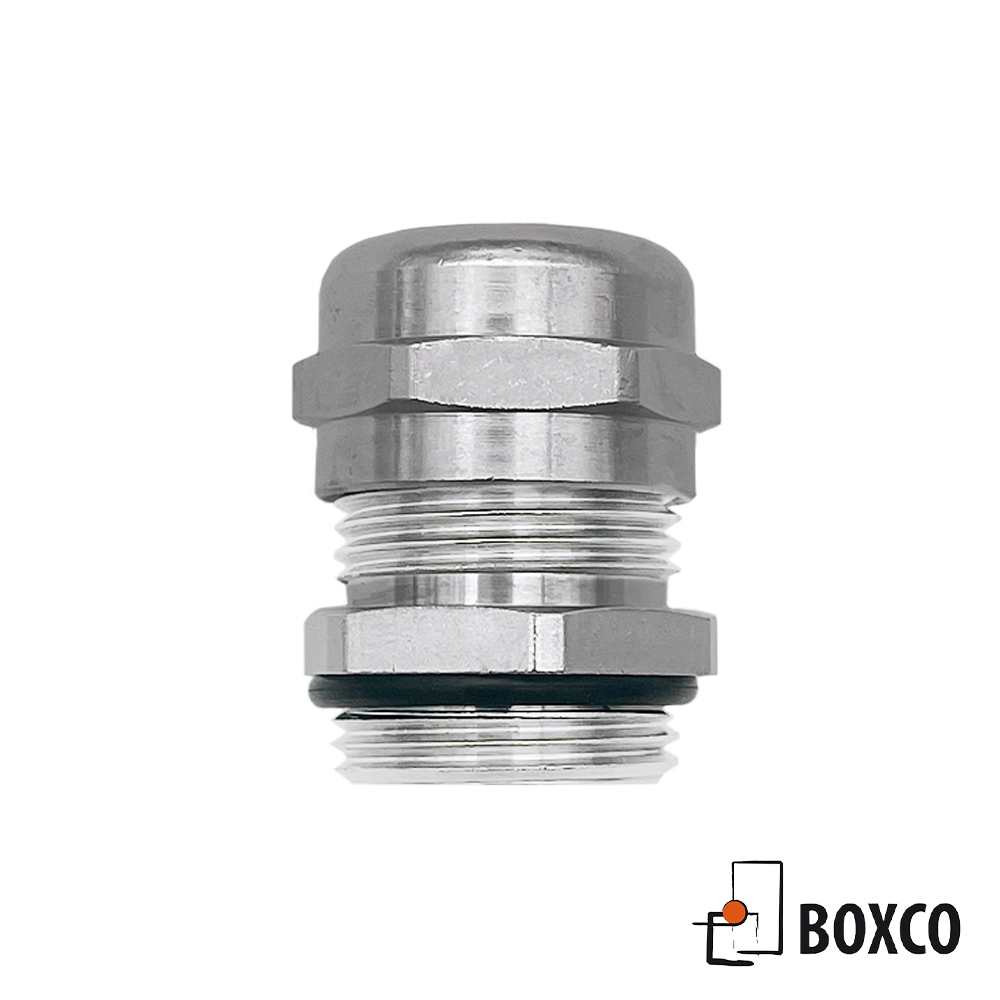

Metallförskruvning - Serie 151.SK / 151.SL hos Boxco AB

Artikeldata
Egenskaper

Material	Nickelpläterad mässing
Kläminsats:	PA
Innerpackning	CR
O-ring	NBR
Temperaturområde	-25°C till 100°C
Skyddsklass	IP 68


art.nr	Gänga	Kabel Ø mm	Nyckelvidd mm	H mm	GL Kort mm
151.1505.SK	M 12x1.5	1.5-5	14	20	5
151.1507.SK	M 12x1.5	2.5-6.5	14	20	5
151.1707.SK	M 16x1.5	2.5-7	17	23	5
151.1710.SK	M 16x1.5	4-9.5	17	23	5
151.2010.SK	M 20x1.5	4-10	22	26	6
151.2013.SK	M 20x1.5	7-13	22	26	6
151.2513.SK	M 25x1.5	5-13	27	28	7
151.2516.SK	M 25x1.5	8-16	27	28	7
151.3217.SK	M 32x1.5	7-17	34	30	8
151.3221.SK	M 32x1.5	11-21	34	30	8
151.4022.SK	M 40x1.5	10-22	42	33	8
151.4027.SK	M 40x1.5	15-27	42	33	8
151.5029.SK	M 50x1.5	17-29	55	37	9
151.5035.SK	M 50x1.5	22-35	55	37	9
151.6340.SK	M 63x1.5	28-40	65	44	10
151.6348.SK	M 63x1.5	35-48	65	44	10
Artikelnummer	Gänga	Kabel Ø mm	Nyckelvidd mm	H mm	GL Lång mm
151.1505.SL	M 12x1.5	1.5-5	14	20	15
151.1507.SL	M 12x1.5	2.5-6.5	14	20	15
151.1707.SL	M 16x1.5	2.5-7	17	23	15
151.1710.SL	M 16x1.5	4-9.5	17	23	15
151.2010.SL	M 20x1.5	4-10	22	26	15
151.2013.SL	M 20x1.5	7-13	22	26	15
151.2513.SL	M 25x1.5	5-13	27	28	15
151.2516.SL	M 25x1.5	8-16	27	28	15
151.3217.SL	M 32x1.5	7-17	34	30	15
151.3221.SL	M 32x1.5	11-21	34	30	15
151.4022.SL	M 40x1.5	10-22	42	33	15
151.4027.SL	M 40x1.5	15-27	42	33	15
151.5029.SL	M 50x1.5	17-29	55	37	15
151.5035.SL	M 50x1.5	22-35	55	37	15
151.6340.SL	M 63x1.5	28-40	65	44	15
151.6348.SL	M 63x1.5	35-48	65	44	15
Artikelnummer	Gänga	Kabel Ø mm	Nyckelvidd mm	H mm	GL Kort mm
151.0705.SK	Pg 7	1.5-5	14	20	5
151.0707.SK	Pg 7	2.5-6.5	14	20	5
151.0907.SK	Pg 9	2.5-7	17	23	6
151.0910.SK	Pg 9	4-9.5	17	23	6
151.1109.SK	Pg 11	3-8.5	20	24	6
151.1112.SK	Pg 11	6-11.5	20	24	6
151.1310.SK	Pg 13.5	4-10	22	26	6.5
151.1313.SK	Pg 13.5	7-13	22	26	6.5
151.1612.SK	Pg 16	5-12	24	28	6.5
151.1615.SK	Pg 16	8-15	24	28	6.5
151.2116.SK	Pg 21	8-16	30	28	7
151.2119.SK	Pg 21	11-19	30	28	7
151.2921.SK	Pg 29	11-21	40	30	8
151.2926.SK	Pg 29	16-26	40	30	8
151.3628.SK	Pg 36	16-28	50	33	9
151.3635.SK	Pg 36	22-34.5	50	33	9
151.4234.SK	Pg 42	22-34	58	37	10
151.4240.SK	Pg 42	27-40	58	37	10
151.4840.SK	Pg 48	28-40	65	44	10
151.4848.SK	Pg 48	35-48	65	44	10
Artikelnummer	Gänga	Kabel Ø mm	Nyckelvidd mm	H mm	GL Lång mm
151.0705.SL	Pg 7	1.5-5	14	20	15
151.0707.SL	Pg 7	2.5-6.5	14	20	15
151.0907.SL	Pg 9	2.5-7	17	23	15
151.0910.SL	Pg 9	4-9.5	17	23	15
151.1109.SL	Pg 11	3-8.5	20	24	15
151.1112.SL	Pg 11	6-11.5	20	24	15
151.1310.SL	Pg 13.5	4-10	22	26	15
151.1313.SL	Pg 13.5	7-13	22	26	15
151.1612.SL	Pg 16	5-12	24	28	15
151.1615.SL	Pg 16	8-15	24	28	15
151.2116.SL	Pg 21	8-16	30	28	15
151.2119.SL	Pg 21	11-19	30	28	15
151.2921.SL	Pg 29	11-21	40	30	15
151.2926.SL	Pg 29	16-26	40	30	15
151.3628.SL	Pg 36	16-28	50	33	15
151.3635.SL	Pg 36	22-34.5	50	33	15
151.4234.SL	Pg 42	22-34	58	37	15
151.4240.SL	Pg 42	27-40	58	37	15
151.4840.SL	Pg 48	28-40	65	44	15
151.4848.SL	Pg 48	35-48	65	44	15
