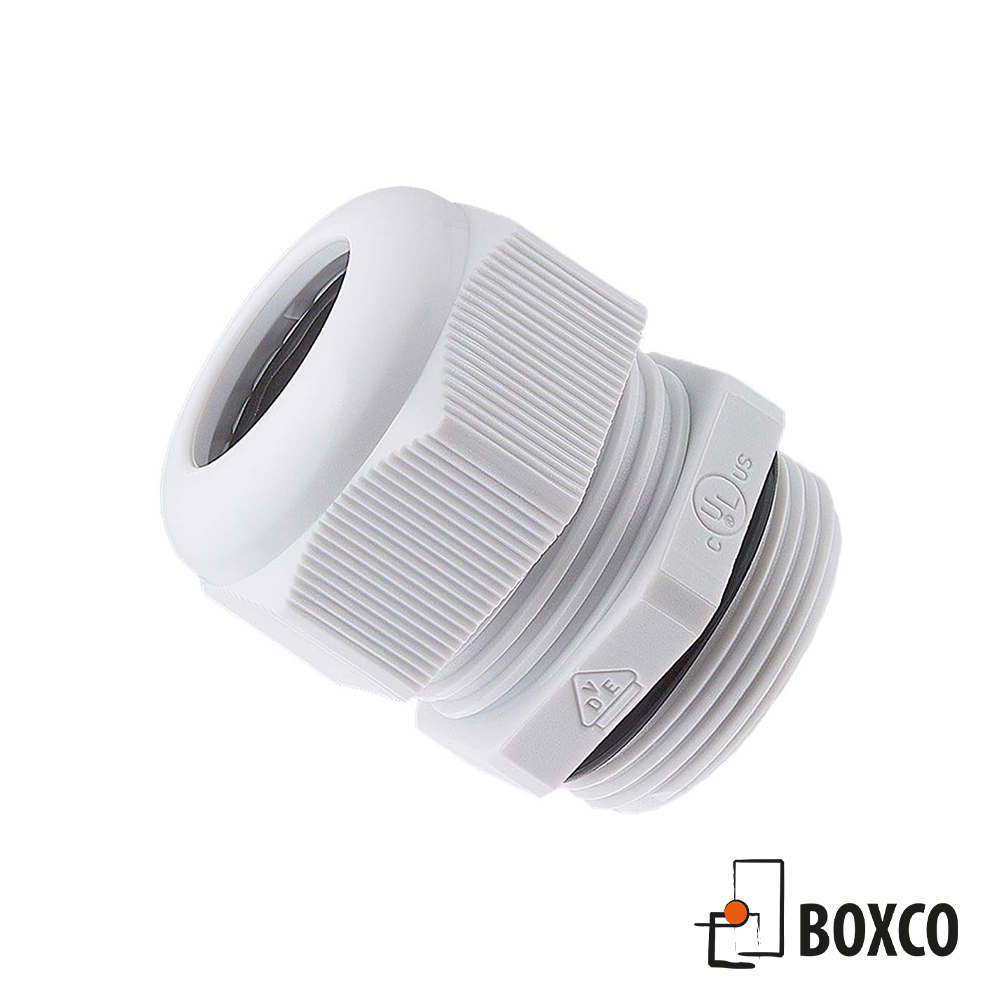

En prisvärd plastförskruvning till standard applikationer.
Testa vår nya plastförskruvning i PA6 som passar till 99% av era applikationer som,
Maskinbyggnationer, Automationssystem, Solcellssystem, Robotindustri, Apparatskåp, Instrument,
Fartygsindustri, Kopplingsboxar och mycket mycket mer…
Kategori: Standard
Ladda ner produktkatalogGood clamping range,
halogen free, sulphur free, phosphorus free,
UL 94 V2 flame retardancy, high mechanical strength,
easy installation, high strain relief, best grade material.
Material : POLYAMIDE 6
Seal : TPV
Protection Class : IP68 / 5 BAR
Working Temperature : -20°C / +100°C (static) , -30°C / +150°C ( dynamic )
Flammability Class : UL94 V2
Connection thread M : EN 60423
Connection thread PG : DIN 40430
Standards : EN 62444 / TS EN 50262
| Type no. Grey (RAL 7035) | Type.no Black (RAL 9005) | Thread | Cable Ø mm | Thread length mm | Key width mm | Packing unit |
| TMO-0SA.G | TMO-0SS | M12x1,5 | 3,0 - 6,5 | 8 | 15 | 100 |
| TMO-01A.G | TMO-01S | M16x1,5 | 5,0 - 10,0 | 10 | 22 | 50 |
| TMO-02A.G | TMO-02S | M20x1,5 | 6,0 - 12,0 | 10 | 24 | 50 |
| TMO-05A.G | TMO-05S | M25x1,5 | 13,0 - 18,0 | 10 | 33 | 25 |
| TMO-07A.G | TMO-07S | M32x1,5 | 18,0 - 25,0 | 18 | 42 | 20 |
| TMO-08A.G | TMO-08S | M40x1,5 | 22,0 - 32,0 | 18 | 53 | 10 |
| TMO-09A.G | TMO-09S | M50x1,5 | 30,0 - 38,0 | 18 | 60 | 10 |
| TMO-10A.G | TMO-10S | M63x1,5 | 34,0 - 44,0 | 18 | 65 | 10 |
