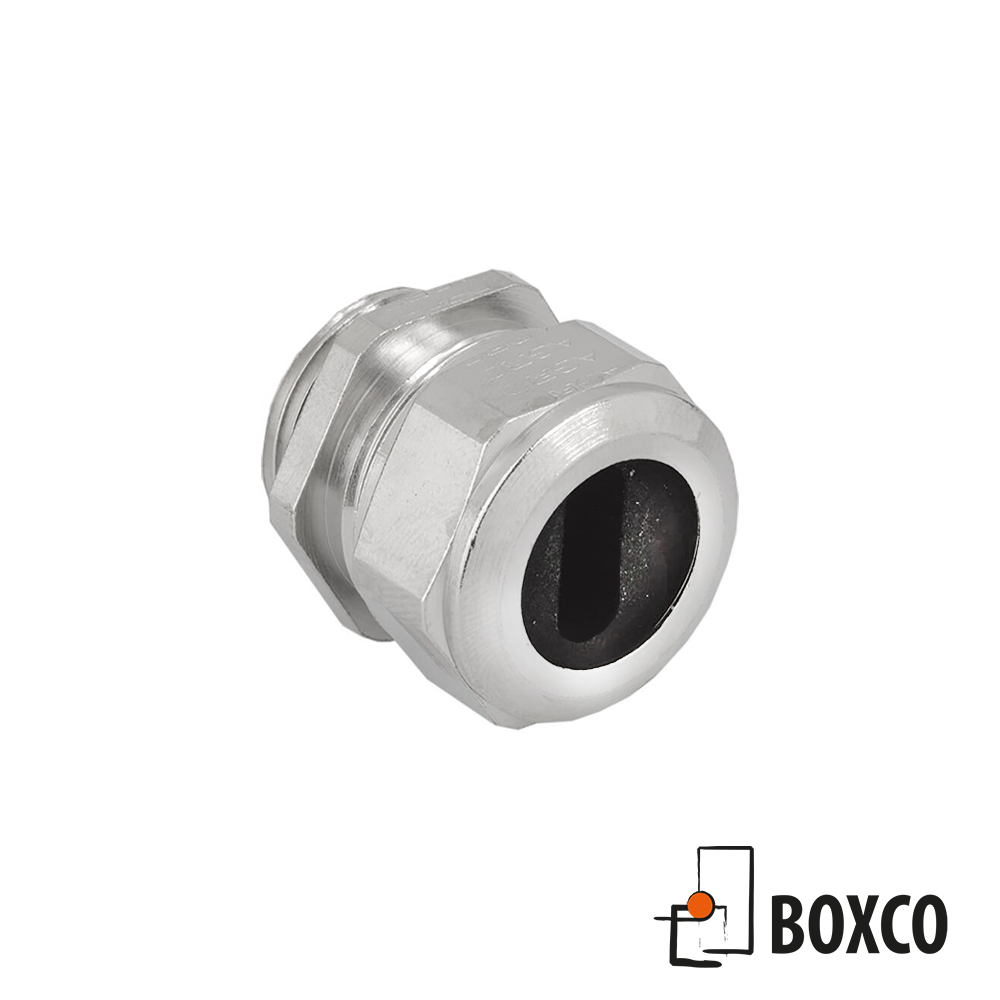

M gänga
| art.nr | Gänga | Max Bredd & Höjd | Min Bredd & Höjd | Nyckelvidd mm | H mm | GL mm | CAD |
| 136.1701.00 | M 16 x 1.5 | 9.0 – 4.2 | 7.3 – 2.5 | 18 | 22 | 5 | Download |
| 136.2001.00 | M 20 x 1.5 | 13.0 – 5.0 | 10.5 – 2.5 | 24 | 23 | 6 | Download |
| 136.2002.00 | M 20 x 1.5 | 15.0 – 5.0 | 12.5 – 2.5 | 24 | 23 | 6 | Download |
| 136.2501.00 | M 25 x 1.5 | 19.0 – 7.0 | 16.0 – 4.0 | 30 | 28 | 7 | Download |
| 136.3202.00 | M 32 x 1.5 | 22.0 – 6.0 | 19.0 – 3.0 | 36 | 28 | 8 | Download |
| 136.3203.00 | M 32 x 1.5 | 22.0 – 8.0 | 19.0 – 5.0 | 36 | 28 | 8 | Download |
| 136.4001.00 | M 40 x 1.5 | 26.0 – 7.0 | 23.0 – 4.0 | 46 | 31 | 8 | Download |
| 136.4002.00 | M 40 x 1.5 | 26.5 – 9.0 | 23.5 – 6.0 | 46 | 31 | 8 | Download |
| 136.4003.00 | M 40 x 1.5 | 28.0 – 6.0 | 25.0 – 3.0 | 46 | 31 | 8 | Download |
| 136.4004.00 | M 40 x 1.5 | 30.0 – 10.0 | 27.0 – 7.0 | 46 | 31 | 8 | Download |
| 136.4005.00 | M 40 x 1.5 | 32.0 – 9.0 | 29.0 – 6.0 | 46 | 31 | 8 | Download |
| 136.4006.00 | M 40 x 1.5 | 33.0 – 6.5 | 30.0 – 3.5 | 46 | 31 | 8 | Download |
| 136.5001.00 | M 50 x 1.5 | 34.0 – 11.5 | 31.0 – 8.5 | 55 | 34 | 9 | Download |
| 136.5002.00 | M 50 x 1.5 | 37.0 – 7.0 | 34.0 – 4.0 | 55 | 34 | 9 | Download |
| 136.5003.00 | M 50 x 1.5 | 40.0 – 6.0 | 36.5 – 2.5 | 55 | 34 | 9 | Download |
| 136.5004.00 | M 50 x 1.5 | 40.0 – 13.5 | 36.5 – 10.0 | 55 | 34 | 9 | Download |
| 136.5005.00 | M 50 x 1.5 | 42.0 – 14.0 | 38.5 – 10.5 | 55 | 34 | 9 | Download |
| 136.6301.00 | M 63 x 1.5 | 46.0 – 14.0 | 42.0 – 10.0 | 70 | 37 | 10 | Download |
| 136.6302.00 | M 63 x 1.5 | 46.5 – 6.0 | 42.5 – 2.0 | 70 | 37 | 10 | Download |
| art.nr | Gänga | Max Bredd & Höjd | Min Bredd & Höjd | Nyckelvidd mm | H mm | GL mm | CAD |
| 136.1701.20 | M 16 x 1.5 | 9.0 – 4.2 | 7.3 – 2.5 | 18 | 22 | 10 | Download |
| 136.2001.20 | M 20 x 1.5 | 13.0 – 5.0 | 10.5 – 2.5 | 24 | 23 | 10 | Download |
| 136.2002.20 | M 20 x 1.5 | 15.0 – 5.0 | 12.5 – 2.5 | 24 | 23 | 10 | Download |
| 136.2501.20 | M 25 x 1.5 | 19.0 – 7.0 | 16.0 – 4.0 | 30 | 28 | 11 | Download |
| 136.3202.20 | M 32 x 1.5 | 22.0 – 6.0 | 19.0 – 3.0 | 36 | 28 | 13 | Download |
| 136.3203.20 | M 32 x 1.5 | 22.0 – 8.0 | 19.0 – 5.0 | 36 | 28 | 13 | Download |
| 136.4001.20 | M 40 x 1.5 | 26.0 – 7.0 | 23.0 – 4.0 | 46 | 31 | 13 | Download |
| 136.4002.20 | M 40 x 1.5 | 26.5 – 9.0 | 23.5 – 6.0 | 46 | 31 | 13 | Download |
| 136.4003.20 | M 40 x 1.5 | 28.0 – 6.0 | 25.0 – 3.0 | 46 | 31 | 13 | Download |
| 136.4004.20 | M 40 x 1.5 | 30.0 – 10.0 | 27.0 – 7.0 | 46 | 31 | 13 | Download |
| 136.4005.20 | M 40 x 1.5 | 32.0 – 9.0 | 29.0 – 6.0 | 46 | 31 | 13 | Download |
| 136.4006.20 | M 40 x 1.5 | 33.0 – 6.5 | 30.0 – 3.5 | 46 | 31 | 13 | Download |
| 136.5001.20 | M 50 x 1.5 | 34.0 – 11.5 | 31.0 – 8.5 | 55 | 34 | 14 | Download |
| 136.5002.20 | M 50 x 1.5 | 37.0 – 7.0 | 34.0 – 4.0 | 55 | 34 | 14 | Download |
| 136.5003.20 | M 50 x 1.5 | 40.0 – 6.0 | 36.5 – 2.5 | 55 | 34 | 14 | Download |
| 136.5004.20 | M 50 x 1.5 | 40.0 – 13.5 | 36.5 – 10.0 | 55 | 34 | 14 | Download |
| 136.5005.20 | M 50 x 1.5 | 42.0 – 14.0 | 38.5 – 10.5 | 55 | 34 | 14 | Download |
| 136.6301.20 | M 63 x 1.5 | 46.0 – 14.0 | 42.0 – 10.0 | 70 | 37 | 14 | Download |
| 136.6302.20 | M 63 x 1.5 | 46.5 – 6.0 | 42.5 – 2.0 | 70 | 37 | 14 | Download |
