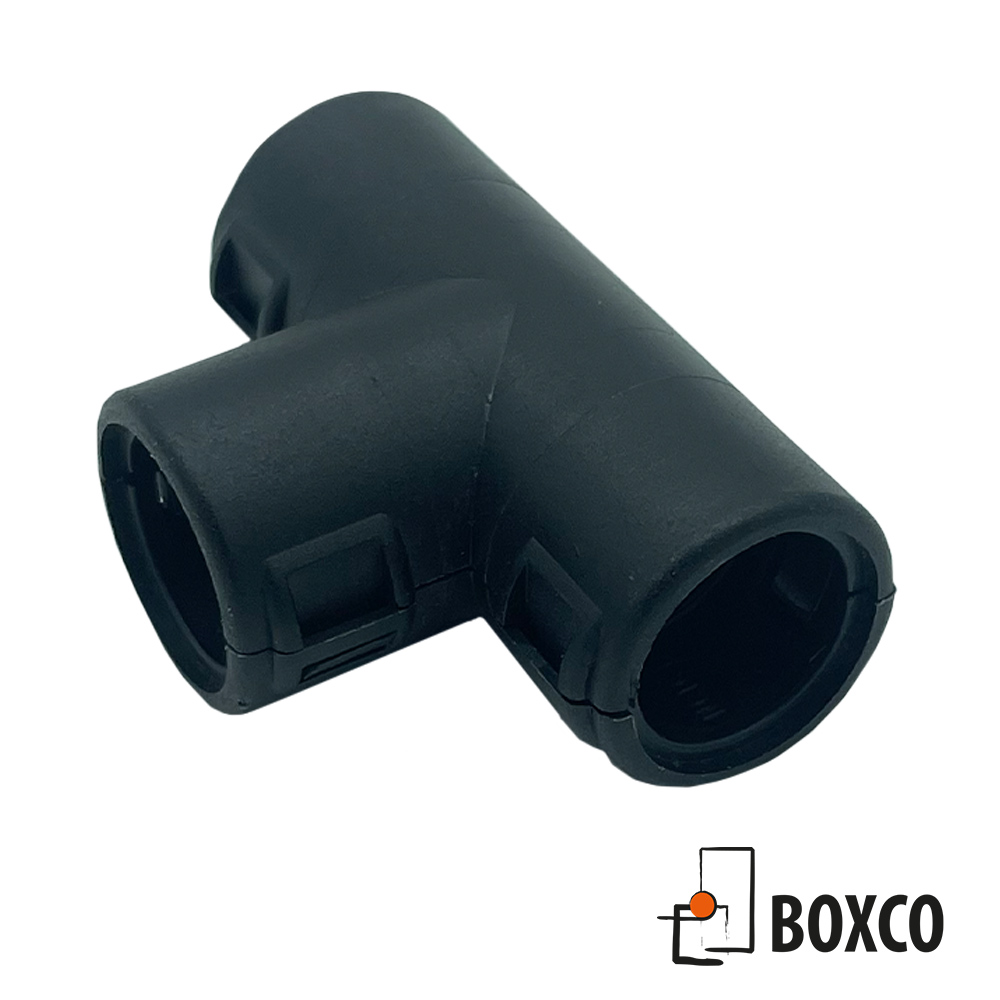

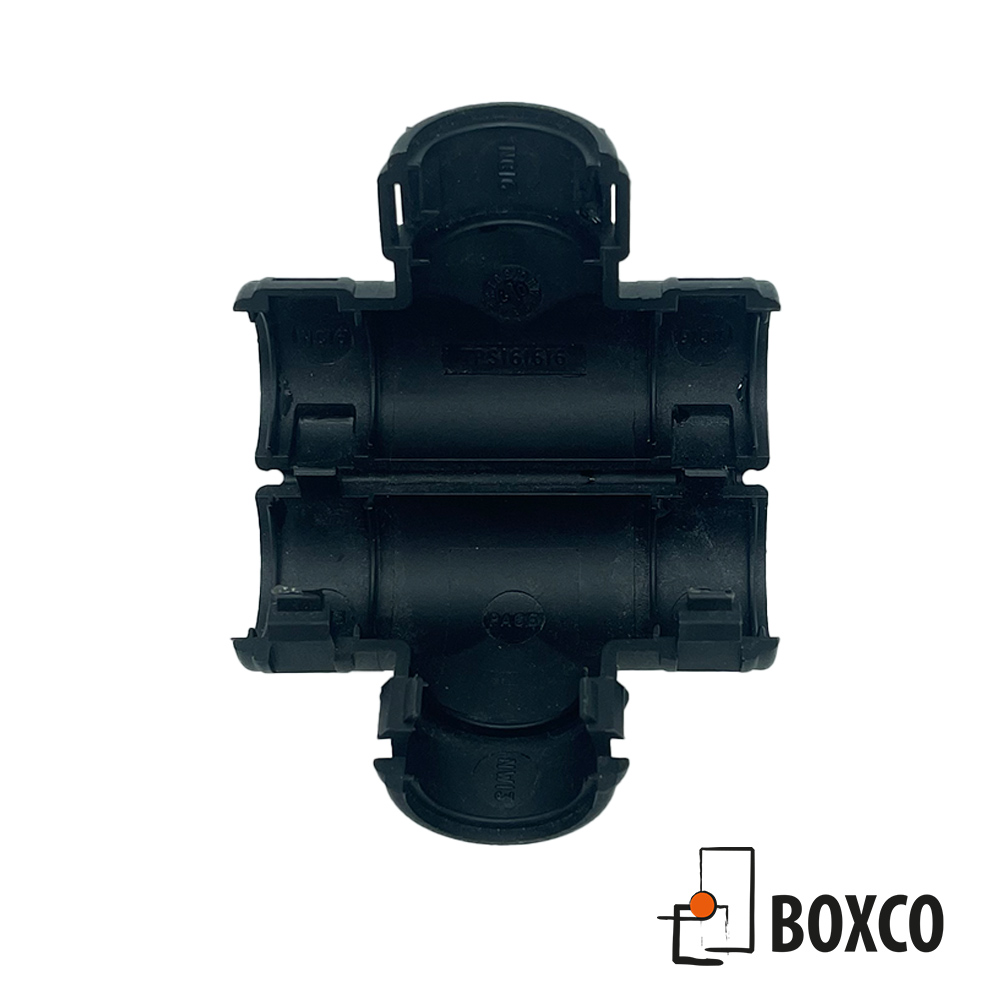

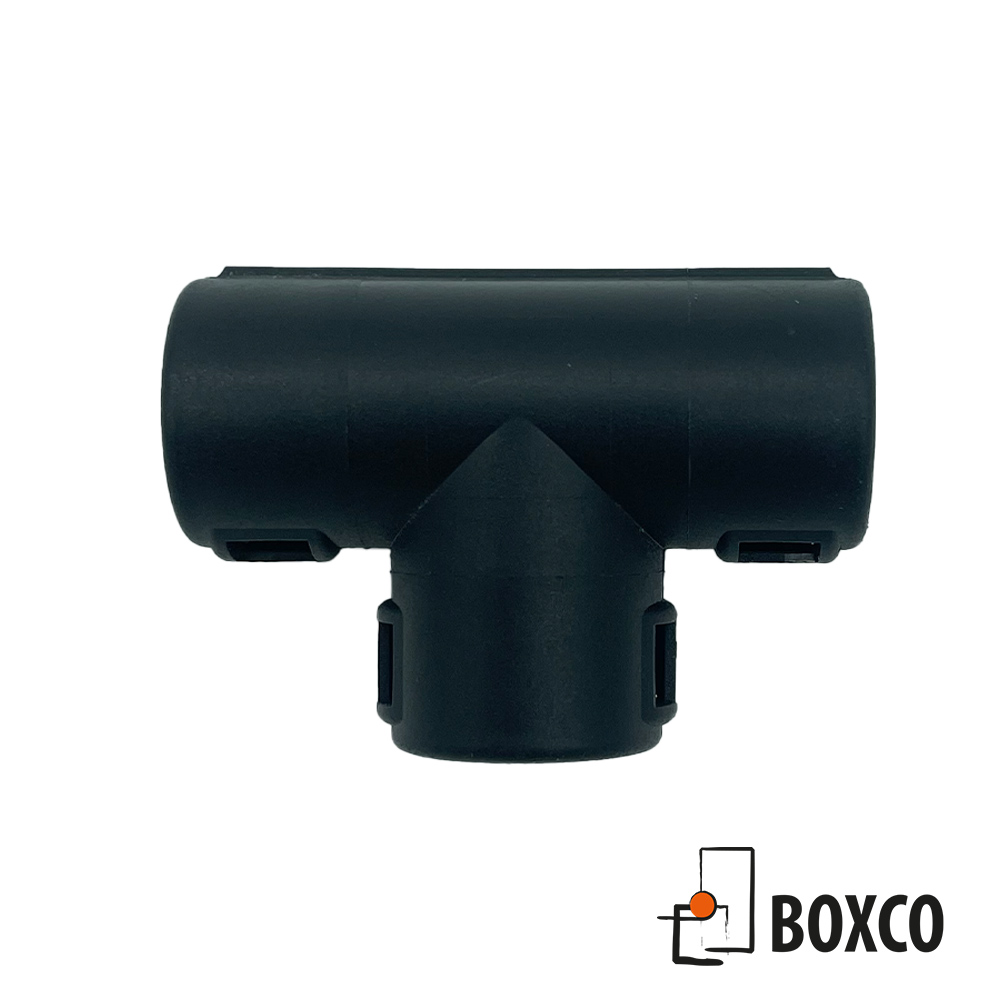

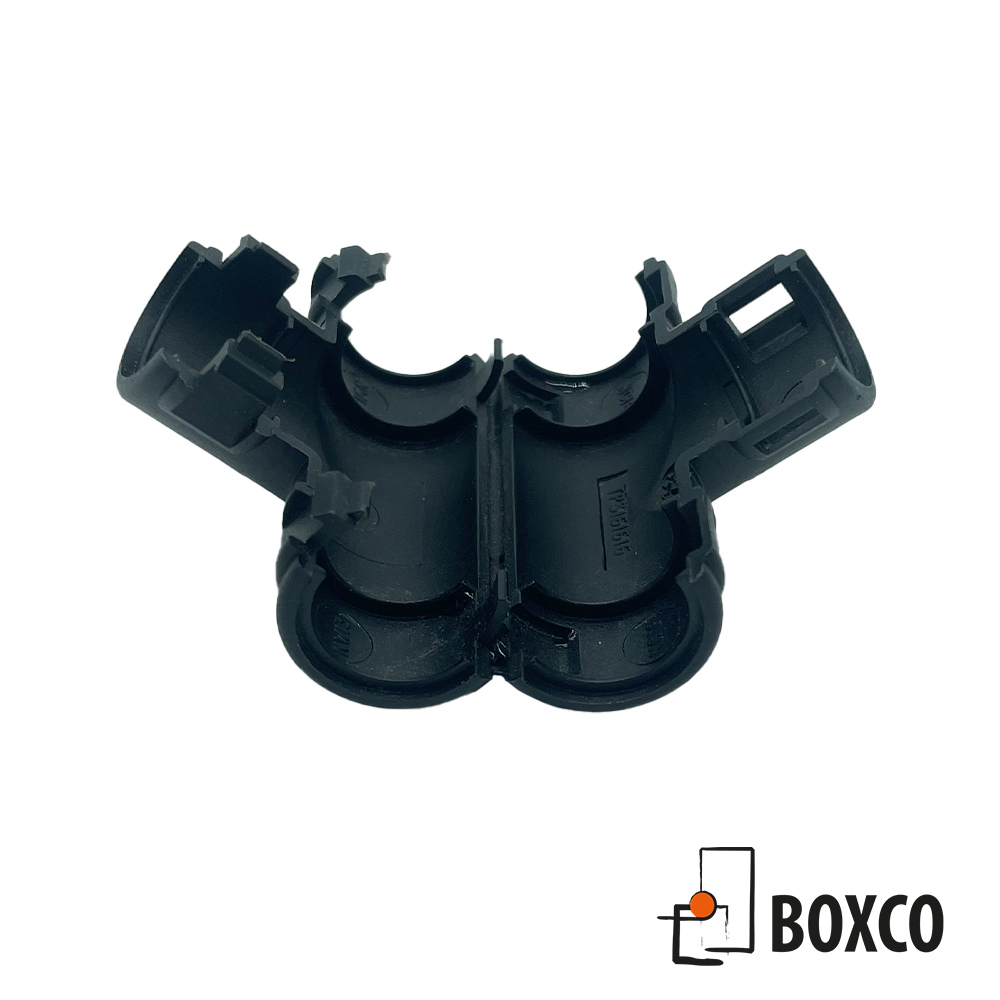

T-koppling för förgrening
Används för att ansluta och förgrena korrugerad skyddsslang i samma eller olika storlekar.
Kategori: T- och Y-Koppling
Ladda ner produktkatalog| Material | Polyamid 66 (Nylon) |
| Färg: | Svart (BK) |
| Temperaturområde | Rörliga applikationer: -5°C till +120°C |
| Statiska applikationer: -40°C till +120°C | |
| ------------------------------ | ------------------------------ |
| Skyddsklass | Använd följande skyddsslang: |
| IP40: | PA, PI och PR |
| ------------------------------ | ------------------------------ |
| Egenskaper: | Snäppfäste |
|
Adaptaflex conduit size |
NW |
|
|
|
|
10mm |
7,5 |
|
11mm |
8,5 |
|
13mm |
10 |
|
16mm |
13 |
|
21mm |
17 |
|
25mm |
22 |
|
28mm |
23 |
|
34mm |
29 |
|
42mm |
36 |
|
54mm |
48 |
T10

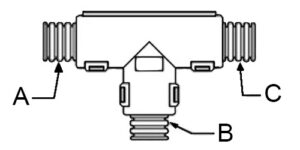

| Part No | Size (mm) | Colour | Pack |
| T101010/BL | 10 10 10 | Black | 10 |
| T101310/BL | 10 13 10 | Black | 10 |
| T101613/BL | 10 16 13 | Black | 10 |
T13
| Part No | Size (mm) | Colour | Pack |
| T131010/BL | 13 10 10 | Black | 10 |
| T131013/BL | 13 10 13 | Black | 10 |
| T131310/BL | 13 13 10 | Black | 10 |
| T131313/BL | 13 13 13 | Black | 10 |
| T131613/BL | 13 16 13 | Black | 10 |
T16
| Part No | Size (mm) | Colour | Pack |
| T161013/BL | 16 10 13 | Black | 10 |
| T161313/BL | 16 13 13 | Black | 10 |
| T161316/BL | 16 13 16 | Black | 10 |
| T161613/BL | 16 16 13 | Black | 10 |
| T161616/BL | 16 16 16 | Black | 10 |
| T162113/BL | 16 21 13 | Black | 10 |
| T162116/BL | 16 21 16 | Black | 10 |
T21
| Part No | Size (mm) | Colour | Pack |
| T211016/BL | 21 10 16 | Black | 10 |
| T211021/BL | 21 10 21 | Black | 10 |
| T211316/BL | 21 13 16 | Black | 10 |
| T211321/BL | 21 13 21 | Black | 10 |
| T211613/BL | 21 16 13 | Black | 10 |
| T211616/BL | 21 16 16 | Black | 10 |
| T211621/BL | 21 16 21 | Black | 10 |
| T212113/BL | 21 21 13 | Black | 10 |
| T212116/BL | 21 21 16 | Black | 10 |
| T212121/BL | 21 21 21 | Black | 10 |
T28
| Part No | Size (mm) | Colour | Pack |
| T281021/BL | 28 10 21 | Black | 10 |
| T281028/BL | 28 10 28 | Black | 10 |
| T281321/BL | 28 13 21 | Black | 10 |
| T281328/BL | 28 13 28 | Black | 10 |
| T281621/BL | 28 16 21 | Black | 10 |
| T281628/BL | 28 16 28 | Black | 10 |
| T282121/BL | 28 21 21 | Black | 10 |
| T282128/BL | 28 21 28 | Black | 10 |
| T282828/BL | 28 28 28 | Black | 10 |
T34
| Part No | Size (mm) | Colour | Pack |
| T341634/BL | 34 16 34 | Black | 10 |
| T342128/BL | 34 21 28 | Black | 10 |
| T342134/BL | 34 21 34 | Black | 10 |
| T343434/BL | 34 34 34 | Black | 10 |
