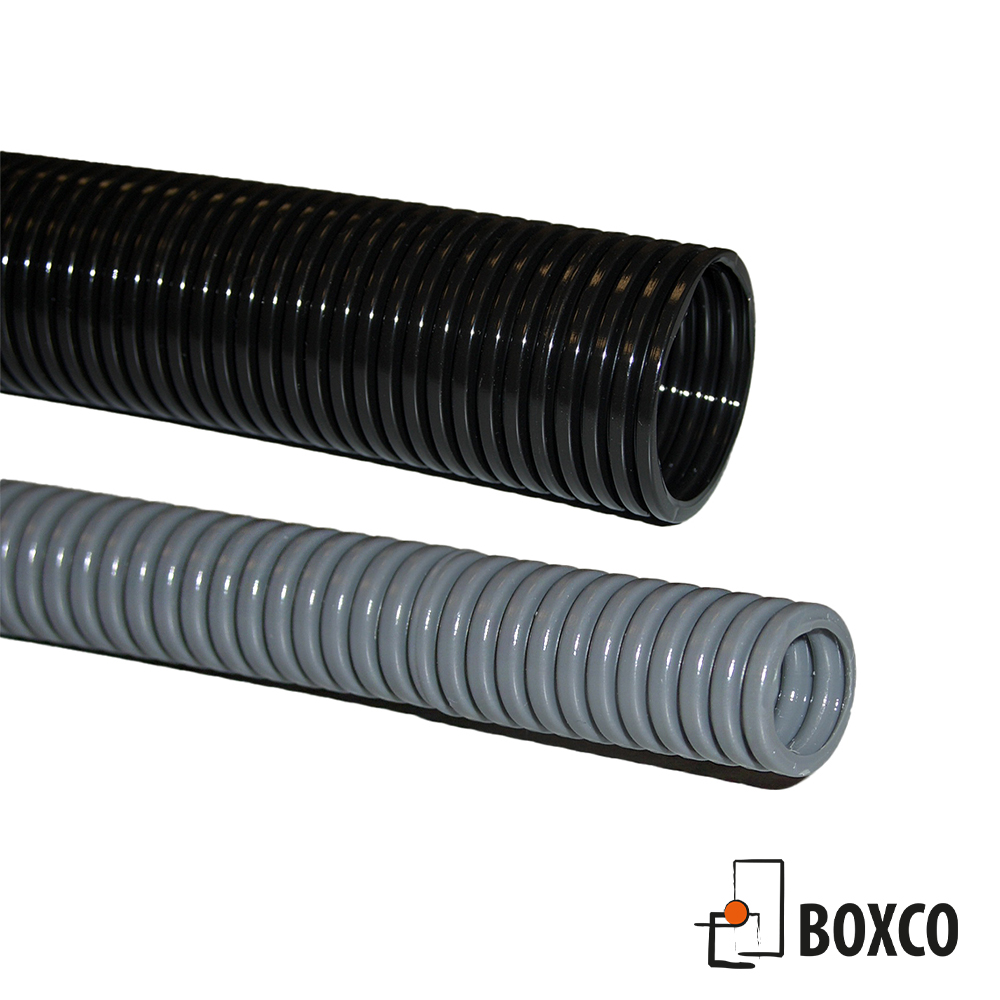

Polyamid 6 V0-korrugerad slang består av modifierad Polyamid 6, denna slang är modifierad med värmestabilisator för att hantera en hög värmeledningstemperatur och uppfyller UL94_Vo standarden vad gäller självslocknande material. -40 – +140 kontinuerligt, peak upp till +160 grader.
UW-PA V0-korrugerad slang är både halogen- kadmiumfri och UV-resistent.
Kategori: Polyamid
Ladda ner produktkatalogChemical stabilities (in direct contact)
Gasolines with 23°C well steadily
Brake fluids with 23°C well steadily
Antifreeze (+H2Ò) with 23°C well steadily
Cleaning agent with 23°C well steadily
Lubricant and fat with 23°C well steadily
Acids (strongly diluted) moderately steadily
Acids generally inconstantly
| Part.no | NW inner (mm) | Profile f = fine, c = course |
Fittings | Ø A mm |
Ø I mm |
a mm |
b mm |
s mm |
Standard lenght ring (m) |
Standard lenght Box (m) |
| 803 045 01 | 4.5 | f | x | 7.1 | 5 | 2.2 | 1.2 | 0.15 | 100 | 10000 |
| 803 006 01 | 6.0 S | f | x | 9.1 | 6.9 | 2.7 | 1.5 | 0.2 | 100 | 5000 |
| 803 065 01 | 6.5 b | c | Pg7/M10 | 9.9 | 6.9 | 3.1 | 2.2 | 0.2 | 100 | 5000 |
| 803 075 01 | 7.5 | f | Pg7/M10 | 10 | 6.8 | 2.7 | 1.8 | 0.15 | 100 | 5000 |
| 803 085 01 | 8.5 | f | Pg7/M10 | 11.7 | 8.5 | 2.4 | 1.5 | 0.2 | 100 | 3300 |
| 803 100 01 | 10 | f | Pg9/M12 | 13 | 10 | 2.7 | 1.8 | 0.25 | 100 | 3000 |
| 803 110 01 | 11 | f | x | 13.7 | 10.5 | 3.1 | 2.2 | 0.3 | 100 | 3000 |
| 803 120 01 | 12 | f | Pg11/M16 | 15.7 | 12.1 | 3.1 | 2.2 | 0.3 | 100 | 2000 |
| 803 130 01 | 13 | f | Pg11/M16 | 15.8 | 12.8 | 2.7 | 1.8 | 0.3 | 100 | 2000 |
| 803 140 01 | 14 | f | Pg13.5/M20 | 18.5 | 14.3 | 3.3 | 2.3 | 0.3 | 100 | 2000 |
| 803 160 21 | 16 b | c | Pg16/M20 | 21 | 17.2 | 2.9 | 1.9 | 0.3 | 100 | 2000 |
| 803 170 01 | 17 | f | Pg16/M20 | 21.2 | 16.7 | 3.3 | 2.3 | 0.3 | 100 | 1600 |
| 803 180 01 | 18 | f | x | 22.6 | 18 | 3.1 | 2.1 | 0.35 | 100 | 1200 |
| 803 190 01 | 19 | f | x | 23.9 | 19.3 | 3.5 | 2.3 | 0.35 | 100 | 1200 |
| 803 210 21 | 21 b | c | Pg21/M25 | 28.3 | 22.6 | 4 | 3.4 | 0.4 | 100 | 1200 |
| 803 220 01 | 22 | f | Pg21/M25 | 25.4 | 21.4 | 3.1 | 2.2 | 0.4 | 100 | 1000 |
| 803 230 01 | 23 | f | Pg21/M25 | 28.3 | 23.3 | 3.4 | 2.3 | 0.4 | 100 | 1000 |
| 803 260 01 | 26 | f | x | 31.2 | 25.9 | 3.1 | 2.3 | 0.4 | 50 | 700 |
| 803 290 21 | 29 b | c | Pg29/M32 | 34.3 | 28.6 | 4.00 | 3.4 | 0.4 | 50 | 500 |
| 803 290 01 | 29 | f | Pg29/M32 | 34.5 | 30 | 3.4 | 2.3 | 0.4 | 50 | 500 |
| 803 320 01 | 32 | f | x | 38.4 | 32.6 | 4.00 | 2.00 | 0.4 | 25 | 300 |
| 803 360 01 | 36 b | c | Pg36/M40 | 42.4 | 35.5 | 5.20 | 4.10 | 0.4 | 25 | 250 |
| 803 370 01 | 37 | f | Pg36/M40 | 42.4 | 36.3 | 4.2 | 2.8 | 0.4 | 25 | 250 |
| 803 480 21 | 48 b | c | Pg48/M50 | 54.5 | 46.8 | 5.5 | 4.2 | 0.4 | 25 | 100 |
| 803 500 01 | 50 | f | Pg48/M50 | 54.5 | 47.8 | 4.3 | 2.8 | 0.4 | 25 | 150 |
