Slangkopplingar

Typ SFA – ATS

Rak koppling – Roterbar inre gänga

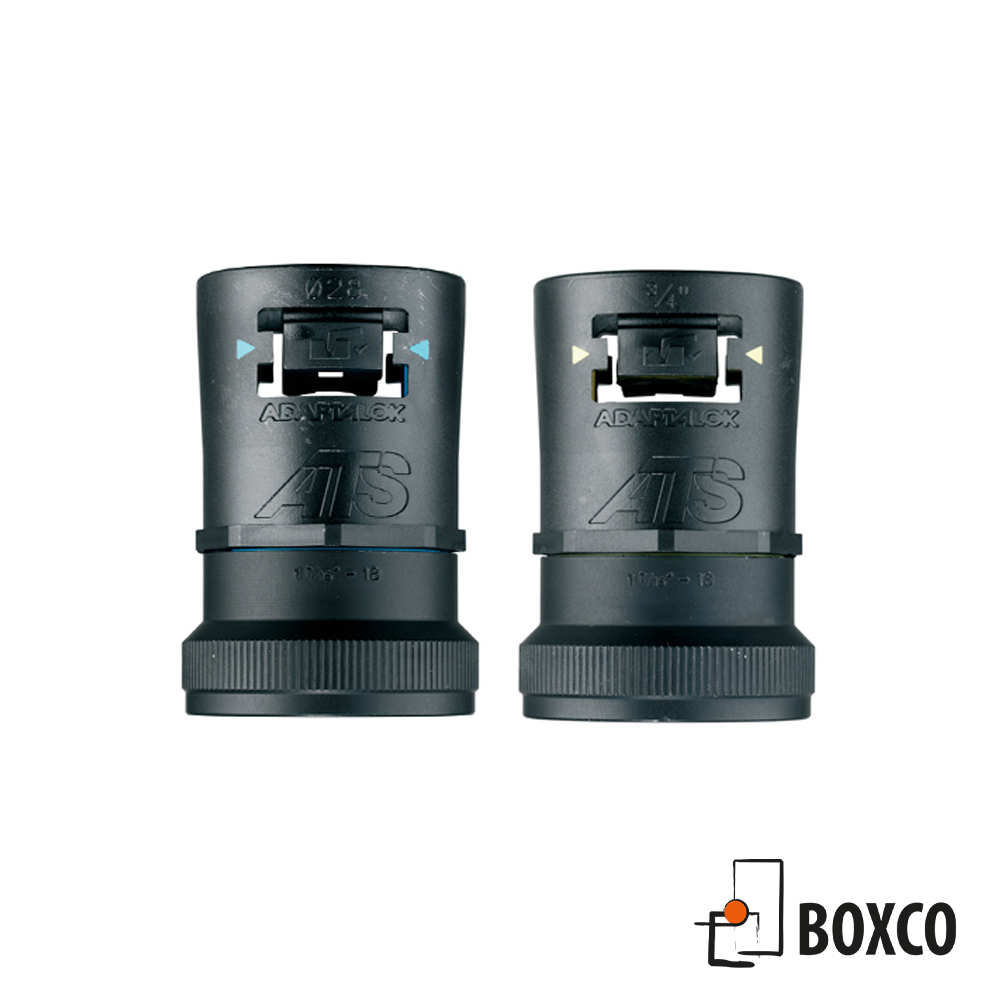

UNEF koppling för cirkulära kontaktdon.

Kategori: UNEF Cirkulära don (MIL C 5015) - ATS

Artikeldata
Egenskaper

Material	Polyamid 66 (Nylon) och Aluminium / TPE
Färg:	Elastomer: Gul (YW), Blå (BE)
	Koppling: Svart (BK), Grå (GY)
Temperaturområde	Statiska applikationer: -50°C till +120°C
	Rörliga applikationer: -45°C till +120°C
----------------------------	------------------------------
Skyddsklass	Använd följande skyddsslang:
IP66:	PA, PI, CP, PR och PADL
IP67:	PA, PI, CP, PR och PADL
IP68:	PA, PI, CP, PR och PADL (4 bar/30 min)
IP69K:	PA, PI, CP, PR och PADL
----------------------------	------------------------------
Egenskaper:	Roterbar gänga
Kommande Godkännanden:	Lloyds Register
	NF F 16-101/102
	DIN5510 (Deutsch Bahn)
	Gul elastomer (IEC61386)
	Blå elastomer (UL1696)
	London Underground Engineering Standard 2-01001-002


art.nr	NW ytter (mm)	UNEF Gänga	Gängor/tum
AT13/U063/SFA-BKY	13	5/8"	24
AT13/U075/SFA-BKY	13	3/4"	20
AT13/U088/SFA-BKY	13	7/8"	20
AT16/U063/SFA-BKY	16	5/8"	24
AT16/U075/SFA-BKY	16	3/4"	20
AT16/U081/SFA-BKY	16	13/16"	20
AT16/U088/SFA-BKY	16	7/8"	20
AT16/U094/SFA-BKY	16	15/16"	20
AT16/U100/SFA-BKY	16	1"	20
AT16/U119/SFA-BKY	16	13/16"	18
AT16/U131/SFA-BKY	16	15/16"	18
AT21/U075/SFA-BKY	21/22	3/4"	20
AT21/U088/SFA-BKY	21/22	7/8"	20
AT21/U094/SFA-BKY	21/22	15/16"	20
AT21/U100/SFA-BKY	21/22	1"	20
AT21/U113/SFA-BKY	21/22	11/8"	18
AT21/U119/SFA-BKY	21/22	13/16"	18
AT21/U131/SFA-BKY	21/22	15/16"	18
AT21/U138/SFA-BKY	21/22	13/8"	18
AT21/U144/SFA-BKY	21/22	17/16"	18
AT21/U175/SFA-BKY	21/22	13/4"	18
AT28/U088/SFA-BKY	28	7/8"	20
AT28/U094/SFA-BKY	28	15/16"	20
AT28/U100/SFA-BKY	28	1"	20
AT28/U119/SFA-BKY	28	13/16"	18
AT28/U138/SFA-BKY	28	13/8"	18
AT28/U144/SFA-BKY	28	17/16"	18
AT28/U175/SFA-BKY	28	13/4"	18
AT28/U200/SFA-BKY	28	2"	18
AT28/U225/SFA-BKY	28	21/4"	18
AT34/U100/SFA-BKY	34	1"	20
AT34/U119/SFA-BKY	34	13/16"	18
AT34/U144/SFA-BKY	34	17/16"	18
AT34/U175/SFA-BKY	34	13/4"	18
AT34/U200/SFA-BKY	34	2"	18
AT42/U175/SFA-BKY	42	13/4"	18
AT42/U200/SFA-BKY	42	2"	18


art.nr	NW ytter (mm)	UNEF Gänga	Gängor/tum
AT13/U063/SFA-BKB	13	5/8"	24
AT13/U075/SFA-BKB	13	3/4"	20
AT13/U088/SFA-BKB	13	7/8"	20
AT16/U063/SFA-BKB	16	5/8"	24
AT16/U075/SFA-BKB	16	3/4"	20
AT16/U081/SFA-BKB	16	13/16"	20
AT16/U088/SFA-BKB	16	7/8"	20
AT16/U094/SFA-BKB	16	15/16"	20
AT16/U100/SFA-BKB	16	1"	20
AT16/U119/SFA-BKB	16	1 3/16"	18
AT16/U131/SFA-BKB	16	1 5/16"	18
AT21/U075/SFA-BKB	21/22	3/4"	20
AT21/U088/SFA-BKB	21/22	7/8"	20
AT21/U094/SFA-BKB	21/22	15/16"	20
AT21/U100/SFA-BKB	21/22	1"	20
AT21/U113/SFA-BKB	21/22	1 1/8"	18
AT21/U119/SFA-BKB	21/22	1 3/16"	18
AT21/U131/SFA-BKB	21/22	1 5/16"	18
AT21/U138/SFA-BKB	21/22	1 3/8"	18
AT21/U144/SFA-BKB	21/22	1 7/16"	18
AT21/U175/SFA-BKB	21/22	1 3/4"	18
AT28/U088/SFA-BKB	28	7/8"	20
AT28/U094/SFA-BKB	28	15/16"	20
AT28/U100/SFA-BKB	28	1"	20
AT28/U119/SFA-BKB	28	1 3/16"	18
AT28/U138/SFA-BKB	28	1 3/8"	18
AT28/U144/SFA-BKB	28	1 7/16"	18
AT28/U175/SFA-BKB	28	1 3/4"	18
AT28/U200/SFA-BKB	28	2"	18
AT28/U225/SFA-BKB	28	2 1/4"	18
AT34/U100/SFA-BKB	34	1"	20
AT34/U119/SFA-BKB	34	1 3/16"	18
AT34/U144/SFA-BKB	34	1 7/16"	18
AT34/U175/SFA-BKB	34	1 3/4"	18
AT34/U200/SFA-BKB	34	2"	18
AT42/U175/SFA-BKB	42	1 3/4"	18
AT42/U200/SFA-BKB	42	2"	18
