WAZU (M), (Pg), (NPT)Plastförskruvning – Serie 184.00 / 184.01 / 184.04 / 184.20 / 184.21 / 184.24

Egenskaper:
Snygg standardförskruvning från Hummel – Serie HSK-K som finns i flera färger. Enkel och säker att installera. Kort och lång M/Pg gänga. Finns i IP 69K.

Kategori: Wazu

Ladda ner produktkatalog
MaterialPA (Nylon), V0 enl. UL94
Färg:Grå / Svart / Blå
InnerpackningNBR
Temperaturområde-40°C till 100°C
SkyddsklassIP68

Metrisk gänga: Dragavlastning enligt EN 50262, version A.



GängaKabel Ø mmNyckelvidd mmLadda ner ritning
art.nrGängaKabel Ø mmNyckelvidd mmH mmGL mmFärgCAD

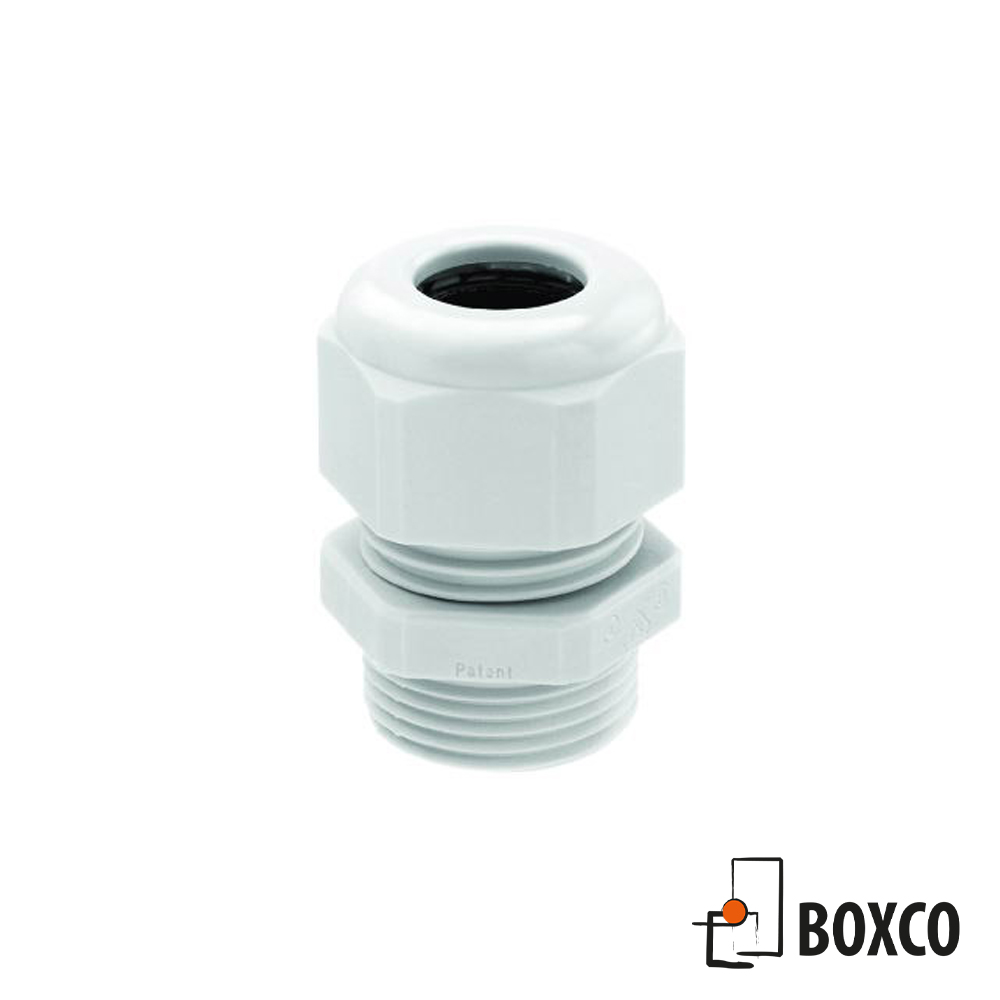

Kort anslutningsgänga
184.1505M 12 x 1.52 - 515208Grå RAL 7035download
184.1507M 12 x 1.53 - 6.515208Grå RAL 7035download
184.1706M 16 x 1.52 - 619228Grå RAL 7035download
184.1708M 16 x 1.54 - 819228Grå RAL 7035download
184.1710M 16 x 1.55 - 1022248Grå RAL 7035download
184.2009M 20 x 1.55 - 924279Grå RAL 7035download
184.2012M 20 x 1.56 - 1224279Grå RAL 7035download
184.2014M 20 x 1.510 - 1427289Grå RAL 7035download
184.2516M 25 x 1.59 - 16333011Grå RAL 7035download
184.2518M 25 x 1.513 - 18333011Grå RAL 7035download
184.3220M 32 x 1.513 - 20423811Grå RAL 7035download
184.3225M 32 x 1.518 - 25423811Grå RAL 7035download
184.4026M 40 x 1.520 - 26534513Grå RAL 7035download
184.4032M 40 x 1.522 - 32534513Grå RAL 7035download
184.5031M 50 x 1.525 - 31604713Grå RAL 7035download
184.5038M 50 x 1.532 - 38604713Grå RAL 7035download
184.6335M 63 x 1.529 - 35684714Grå RAL 7035download
184.6344M 63 x 1.537 - 44684714Grå RAL 7035download
ArtikelnummerGängaKabel Ø mm Nyckelvidd mmH mmGL mmFärg3D Ritning
184.1505.01M 12 x 1.52 - 515208Svart RAL 9005download
184.1507.01M 12 x 1.53 - 6.515208Svart RAL 9005download
184.1706.01M 16 x 1.52 - 619228Svart RAL 9005download
184.1708.01M 16 x 1.54 - 819228Svart RAL 9005download
184.1710.01M 16 x 1.55 - 1022248Svart RAL 9005download
184.2009.01M 20 x 1.55 - 924279Svart RAL 9005download
184.2012.01M 20 x 1.56 - 1224279Svart RAL 9005download
184.2014.01M 20 x 1.510 - 1427289Svart RAL 9005download
184.2516.01M 25 x 1.59 - 16333011Svart RAL 9005download
184.2518.01M 25 x 1.513 - 18333011Svart RAL 9005download
184.3220.01M 32 x 1.513 - 20423811Svart RAL 9005download
184.3225.01M 32 x 1.518 - 25423811Svart RAL 9005download
184.4026.01M 40 x 1.520 - 26534513Svart RAL 9005download
184.4032.01M 40 x 1.522 - 32534513Svart RAL 9005download
184.5031.01M 50 x 1.525 - 31604713Svart RAL 9005download
184.5038.01M 50 x 1.532 - 38604713Svart RAL 9005download
184.6335.01M 63 x 1.529 - 35684714Svart RAL 9005download
184.6344.01M 63 x 1.537 - 44684714Svart RAL 9005download
ArtikelnummerGängaKabel Ø mm Nyckelvidd mmH mmGL mmFärg3D Ritning
184.1505.04M 12 x 1.52 - 515208Blå RAL 5012download
184.1507.04M 12 x 1.53 - 6.515208Blå RAL 5012download
184.1706.04M 16 x 1.52 - 619228Blå RAL 5012download
184.1708.04M 16 x 1.54 - 819228Blå RAL 5012download
184.1710.04M 16 x 1.55 - 1022248Blå RAL 5012download
184.2009.04M 20 x 1.55 - 924279Blå RAL 5012download
184.2012.04M 20 x 1.56 - 1224279Blå RAL 5012download
184.2014.04M 20 x 1.510 - 1427289Blå RAL 5012download
184.2516.04M 25 x 1.59 - 16333011Blå RAL 5012download
184.2518.04M 25 x 1.513 - 18333011Blå RAL 5012download
184.3220.04M 32 x 1.513 - 20423811Blå RAL 5012download
184.3225.04M 32 x 1.518 - 25423811Blå RAL 5012download
184.4026.04M 40 x 1.520 - 26534513Blå RAL 5012download
184.4032.04M 40 x 1.522 - 32534513Blå RAL 5012download
184.5031.04M 50 x 1.525 - 31604713Blå RAL 5012download
184.5038.04M 50 x 1.532 - 38604713Blå RAL 5012download
184.6335.04M 63 x 1.529 - 35684714Blå RAL 5012download
184.6344.04M 63 x 1.537 - 44684714Blå RAL 5012download
ArtikelnummerGängaKabel Ø mm Nyckelvidd mmH mmGL mmFärg3D Ritning

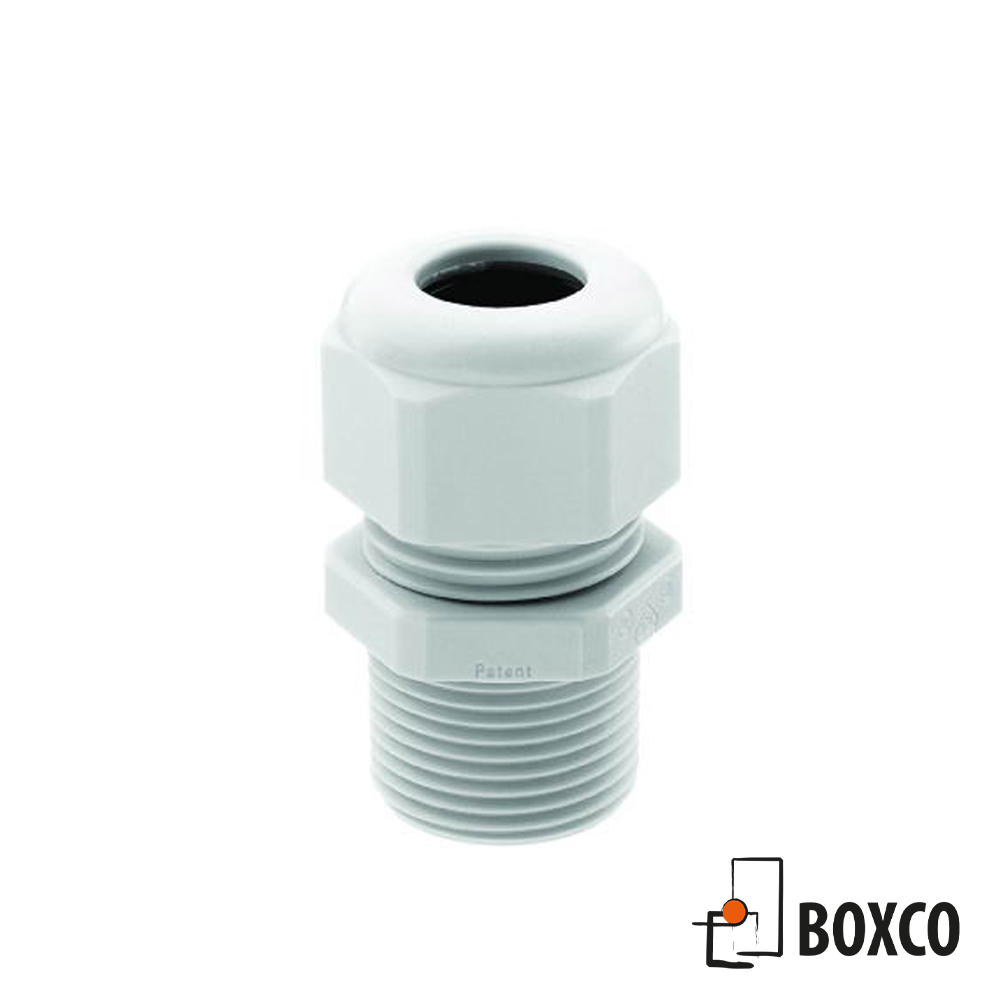

Lång anslutningsgänga
184.1505.20M 12 x 1.52 - 5152015Grå RAL 7035download
184.1507.20M 12 x 1.53 - 6.5152015Grå RAL 7035download
184.1706.20M 16 x 1.52 - 6192215Grå RAL 7035download
184.1708.20M 16 x 1.54 - 8192215Grå RAL 7035download
184.1710.20M 16 x 1.55 - 10222415Grå RAL 7035download
184.2009.20M 20 x 1.55 - 9242715Grå RAL 7035download
184.2012.20M 20 x 1.56 - 12242715Grå RAL 7035download
184.2014.20M 20 x 1.510 - 14272815Grå RAL 7035download
184.2516.20M 25 x 1.59 - 16333015Grå RAL 7035download
184.2518.20M 25 x 1.513 - 18333015Grå RAL 7035download
184.3220.20M 32 x 1.513 - 20423815Grå RAL 7035download
184.3225.20M 32 x 1.518 - 25423815Grå RAL 7035download
184.4026.20M 40 x 1.520 - 26534518Grå RAL 7035download
184.4032.20M 40 x 1.522 - 32534518Grå RAL 7035download
184.5031.20M 50 x 1.525 - 31604718Grå RAL 7035download
184.5038.20M 50 x 1.532 - 38604718Grå RAL 7035download
184.6335.20M 63 x 1.529 - 35684718Grå RAL 7035download
184.6344.20M 63 x 1.537 - 44684718Grå RAL 7035download
ArtikelnummerGängaKabel Ø mm Nyckelvidd mmH mmGL mmFärg3D Ritning
184.1505.21M 12 x 1.52 - 5152015Svart RAL 9005download
184.1507.21M 12 x 1.53 - 6.5152015Svart RAL 9005download
184.1706.21M 16 x 1.52 - 6192215Svart RAL 9005download
184.1708.21M 16 x 1.54 - 8192215Svart RAL 9005download
184.1710.21M 16 x 1.55 - 10222415Svart RAL 9005download
184.2009.21M 20 x 1.55 - 9242715Svart RAL 9005download
184.2012.21M 20 x 1.56 - 12242715Svart RAL 9005download
184.2014.21M 20 x 1.510 - 14272815Svart RAL 9005download
184.2516.21M 25 x 1.59 - 16333015Svart RAL 9005download
184.2518.21M 25 x 1.513 - 18333015Svart RAL 9005download
184.3220.21M 32 x 1.513 - 2042/173815Svart RAL 9005download
184.3225.21M 32 x 1.518 - 2542/173815Svart RAL 9005download
184.4026.21M 40 x 1.520 - 2653/224518Svart RAL 9005download
184.4032.21M 40 x 1.522 - 3253/224518Svart RAL 9005download
184.5031.21M 50 x 1.525 - 31604718Svart RAL 9005download
184.5038.21M 50 x 1.532 - 38604718Svart RAL 9005download
184.6335.21M 63 x 1.529 - 35684718Svart RAL 9005download
184.6344.21M 63 x 1.537 - 44684718Svart RAL 9005download
ArtikelnummerGängaKabel Ø mm Nyckelvidd mmH mmGL mmFärg3D Ritning
184.1505.24M 12 x 1.52 - 5152015Blå RAL 5012download
184.1507.24M 12 x 1.53 - 6.5152015Blå RAL 5012download
184.1706.24M 16 x 1.52 - 6192215Blå RAL 5012download
184.1708.24M 16 x 1.54 - 8192215Blå RAL 5012download
184.1710.24M 16 x 1.55 - 10222415Blå RAL 5012download
184.2009.24M 20 x 1.55 - 9242715Blå RAL 5012download
184.2012.24M 20 x 1.56 - 12242715Blå RAL 5012download
184.2014.24M 20 x 1.510 - 14272815Blå RAL 5012download
184.2516.24M 25 x 1.59 - 16333015Blå RAL 5012download
184.2518.24M 25 x 1.513 - 18333015Blå RAL 5012download
184.3220.24M 32 x 1.513 - 20423815Blå RAL 5012download
184.3225.24M 32 x 1.518 - 25423815Blå RAL 5012download
184.4026.24M 40 x 1.520 - 26534518Blå RAL 5012download
184.4032.24M 40 x 1.522 - 32534518Blå RAL 5012download
184.5031.24M 50 x 1.525 - 31604718Blå RAL 5012download
184.5038.24M 50 x 1.532 - 38604718Blå RAL 5012download
184.6335.24M 63 x 1.529 - 35684718Blå RAL 5012download
184.6344.24M 63 x 1.537 - 44684718Blå RAL 5012download
GängaKabel Ø mmNyckelvidd mmLadda ner ritning
art.nrGängaKabel Ø mmNyckelvidd mmH mmGL Kort mmFärgCAD
Kort anslutningsgänga
184.0705Pg 72 - 515208Grå RAL 7035download
184.0707Pg 73 - 6.515208Grå RAL 7035download
184.0906Pg 92 - 619228Grå RAL 7035download
184.0908Pg 94 - 819228Grå RAL 7035download
184.1107Pg 113 - 722248Grå RAL 7035download
184.1110Pg 115 - 1022248Grå RAL 7035download
184.1309Pg 13.55 - 924279Grå RAL 7035download
184.1312Pg 13.56 - 1224279Grå RAL 7035download
184.1612Pg 167 - 12272810Grå RAL 7035download
184.1614Pg 1610 - 14272810Grå RAL 7035download
184.2116Pg 219 - 16333011Grå RAL 7035download
184.2118Pg 2113 - 18333011Grå RAL 7035download
184.2920Pg 2913 - 20423811Grå RAL 7035download
184.2925Pg 2918 - 25423811Grå RAL 7035download
184.3626Pg 3620 - 26534513Grå RAL 7035download
184.3632Pg 3622 - 32534513Grå RAL 7035download
184.4231Pg 4225 - 31604713Grå RAL 7035download
184.4238Pg 4232 - 38604713Grå RAL 7035download
184.4835Pg 4829 - 35654714Grå RAL 7035download
184.4844Pg 4837 - 44654714Grå RAL 7035download
ArtikelnummerGängaKabel Ø mmNyckelvidd mmH mmGL Kort mmFärg3D Ritning
184.0705.01Pg 72 - 515208Svart RAL 9005download
184.0707.01Pg 73 - 6.515208Svart RAL 9005download
184.0906.01Pg 92 - 619228Svart RAL 9005download
184.0908.01Pg 94 - 819228Svart RAL 9005download
184.1107.01Pg 113 - 722248Svart RAL 9005download
184.1110.01Pg 115 - 1022248Svart RAL 9005download
184.1309.01Pg 13.55 - 924279Svart RAL 9005download
184.1312.01Pg 13.56 - 1224279Svart RAL 9005download
184.1612.01Pg 167 - 12272810Svart RAL 9005download
184.1614.01Pg 1610 - 14272810Svart RAL 9005download
184.2116.01Pg 219 - 16333011Svart RAL 9005download
184.2118.01Pg 2113 - 18333011Svart RAL 9005download
184.2920.01Pg 2913 - 20423811Svart RAL 9005download
184.2925.01Pg 2918 - 25423811Svart RAL 9005download
184.3626.01Pg 3620 - 26534513Svart RAL 9005download
184.3632.01Pg 3622 - 32534513Svart RAL 9005download
184.4231.01Pg 4225 - 31604713Svart RAL 9005download
184.4238.01Pg 4232 - 38604713Svart RAL 9005download
184.4835.01Pg 4829 - 35654714Svart RAL 9005download
184.4844.01Pg 4837 - 44654714Svart RAL 9005download
ArtikelnummerGängaKabel Ø mmNyckelvidd mmH mmGL Kort mmFärg3D Ritning
184.0705.04Pg 72 - 515208Blå RAL 5012download
184.0707.04Pg 73 - 6.515208Blå RAL 5012download
184.0906.04Pg 92 - 619228Blå RAL 5012download
184.0908.04Pg 94 - 819228Blå RAL 5012download
184.1107.04Pg 113 - 722248Blå RAL 5012download
184.1110.04Pg 115 - 1022248Blå RAL 5012download
184.1309.04Pg 13.55 - 924279Blå RAL 5012download
184.1312.04Pg 13.56 - 1224279Blå RAL 5012download
184.1612.04Pg 167 - 12272810Blå RAL 5012download
184.1614.04Pg 1610 - 14272810Blå RAL 5012download
184.2116.04Pg 219 - 16333011Blå RAL 5012download
184.2118.04Pg 2113 - 18333011Blå RAL 5012download
184.2920.04Pg 2913 - 20423811Blå RAL 5012download
184.2925.04Pg 2918 - 25423811Blå RAL 5012download
184.3626.04Pg 3620 - 26534513Blå RAL 5012download
184.3632.04Pg 3622 - 32534513Blå RAL 5012download
184.4231.04Pg 4225 - 31604713Blå RAL 5012download
184.4238.04Pg 4232 - 38604713Blå RAL 5012download
184.4835.04Pg 4829 - 35654714Blå RAL 5012download
184.4844.04Pg 4837 - 44654714Blå RAL 5012download
ArtikelnummerGängaKabel Ø mmNyckelvidd mmH mmGL Lång mmFärg3D Ritning
Lång anslutningsgänga
184.0705.20Pg 72 - 5152015Grå RAL 7035download
184.0707.20Pg 73 - 6.5152015Grå RAL 7035download
184.0906.20Pg 92 - 6192215Grå RAL 7035download
184.0908.20Pg 94 - 8192215Grå RAL 7035download
184.1107.20Pg 113 - 7222415Grå RAL 7035download
184.1110.20Pg 115 - 10222415Grå RAL 7035download
184.1309.20Pg 13.55 - 9242715Grå RAL 7035download
184.1312.20Pg 13.56 - 12242715Grå RAL 7035download
184.1612.20Pg 167 - 12272815Grå RAL 7035download
184.1614.20Pg 1610 - 14272815Grå RAL 7035download
184.2016.20Pg 219 - 16333015Grå RAL 7035download
184.2018.20Pg 2113 - 18333015Grå RAL 7035download
184.2920.20Pg 2913 - 20423815Grå RAL 7035download
184.2925.20Pg 2918 - 25423815Grå RAL 7035download
184.3626.20Pg 3620 - 26534518Grå RAL 7035download
184.3632.20Pg 3622 - 32534518Grå RAL 7035download
184.4231.20Pg 4225 - 31604718Grå RAL 7035download
184.4238.20Pg 4232 - 38604718Grå RAL 7035download
184.4835.20Pg 4829 - 35654718Grå RAL 7035download
184.4844.20Pg 4837 - 44654718Grå RAL 7035download
ArtikelnummerGängaKabel Ø mmNyckelvidd mmH mmGL Lång mmFärg3D Ritning
184.0705.21Pg 72 - 5152015Svart RAL 9005download
184.0707.21Pg 73 - 6.5152015Svart RAL 9005download
184.0906.21Pg 92 - 6192215Svart RAL 9005download
184.0908.21Pg 94 - 8192215Svart RAL 9005download
184.1107.21Pg 113 - 7222415Svart RAL 9005download
184.1110.21Pg 115 - 10222415Svart RAL 9005download
184.1309.21Pg 13.55 - 9242715Svart RAL 9005download
184.1312.21Pg 13.56 - 12242715Svart RAL 9005download
184.1612.21Pg 167 - 12272815Svart RAL 9005download
184.1614.21Pg 1610 - 14272815Svart RAL 9005download
184.2116.21Pg 219 - 16333015Svart RAL 9005download
184.2118.21Pg 2113 - 18333015Svart RAL 9005download
184.2920.21Pg 2913 - 20423815Svart RAL 9005download
184.2925.21Pg 2918 - 25423815Svart RAL 9005download
184.3626.21Pg 3620 - 26534518Svart RAL 9005download
184.3632.21Pg 3622 - 32534518Svart RAL 9005download
184.4231.21Pg 4225 - 31604718Svart RAL 9005download
184.4238.21Pg 4232 - 38604718Svart RAL 9005download
184.4835.21Pg 4829 - 35654718Svart RAL 9005download
184.4844.21Pg 4837 - 44654718Svart RAL 9005download
ArtikelnummerGängaKabel Ø mmNyckelvidd mmH mmGL Lång mmFärg3D Ritning
184.0705.24Pg 72 - 5152015Blå RAL 5012download
184.0707.24Pg 73 - 6.5152015Blå RAL 5012download
184.0906.24Pg 92 - 6192215Blå RAL 5012download
184.0908.24Pg 94 - 8192215Blå RAL 5012download
184.1107.24Pg 113 - 7222415Blå RAL 5012download
184.1110.24Pg 115 - 10222415Blå RAL 5012download
184.1309.24Pg 13.55 - 9242715Blå RAL 5012download
184.1312.24Pg 13.56 - 12242715Blå RAL 5012download
184.1612.24Pg 167 - 12272815Blå RAL 5012download
184.1614.24Pg 1610 - 14272815Blå RAL 5012download
184.2116.24Pg 219 - 16333015Blå RAL 5012download
184.2118.24Pg 2113 - 18333015Blå RAL 5012download
184.2920.24Pg 2913 - 20423815Blå RAL 5012download
184.2925.24Pg 2918 - 25423815Blå RAL 5012download
184.3626.24Pg 3620 - 26534518Blå RAL 5012download
184.3632.24Pg 3622 - 32534518Blå RAL 5012download
184.4231.24Pg 4225 - 31604718Blå RAL 5012download
184.4238.24Pg 4232 - 38604718Blå RAL 5012download
184.4835.24Pg 4829 - 35654718Blå RAL 5012download
184.4844.24Pg 4837 - 44654718Blå RAL 5012download
GängaKabel Ø mmNyckelvidd mmLadda ner ritning
art.nrGängaKabel Ø mmNyckelvidd mmH mmGL mmFärgCAD
184.39063/8" NPT2 - 622/ 192215Grå RAL 7035download
184.39083/8" NPT4 - 822/ 192215Grå RAL 7035download
184.19091/2" NPT5 - 9242713Grå RAL 7035download
184.19121/2" NPT6 - 12242713Grå RAL 7035download
184.19141/2" NPT10 - 14272813Grå RAL 7035download
184.35163/4" NPT9 - 16333014Grå RAL 7035download
184.35183/4" NPT13 - 18333014Grå RAL 7035download
184.75201" NPT13 - 20423819Grå RAL 7035download
184.75251" NPT18 - 25423819Grå RAL 7035download
184.76201 1/4" NPT13 - 2046/ 423816Grå RAL 7035download
184.76251 1/4" NPT18 - 2546/ 423816Grå RAL 7035download
184.77261 1/2" NPT20 - 26534520Grå RAL 7035download
184.77321 1/2" NPT22 - 32534520Grå RAL 7035download
ArtikelnummerGängaKabel Ø mm Nyckelvidd mmH mmGL mmFärg3D Ritning
184.3906.013/8" NPT2 - 622/ 192215Svart RAL 9005download
184.3908.013/8" NPT4 - 822/ 192215Svart RAL 9005download
184.1909.011/2" NPT5 - 9242713Svart RAL 9005download
184.1912.011/2" NPT6 - 12242713Svart RAL 9005download
184.1914.011/2" NPT10 - 14272813Svart RAL 9005download
184.3516.013/4" NPT9 - 16333014Svart RAL 9005download
184.3518.013/4" NPT13 - 18333014Svart RAL 9005download
184.7520.011" NPT13 - 20423819Svart RAL 9005download
184.7525.011" NPT18 - 25423819Svart RAL 9005download
184.7620.011 1/4" NPT13 - 2046/ 423816Svart RAL 9005download
184.7625.011 1/4" NPT18 - 2546/ 423816Svart RAL 9005download
184.7726.011 1/2" NPT20 - 26534520Svart RAL 9005download
184.7732.011 1/2" NPT22 - 32534520Svart RAL 9005download
ArtikelnummerGängaKabel Ø mm Nyckelvidd mmH mmGL mmFärg3D Ritning
184.3906.043/8" NPT2 - 622/ 192215Blå RAL 5012download
184.3908.043/8" NPT4 - 822/ 192215Blå RAL 5012download
184.1909.041/2" NPT5 - 9242713Blå RAL 5012download
184.1912.041/2" NPT6 - 12242713Blå RAL 5012download
184.1914.041/2" NPT10 - 14272813Blå RAL 5012download
184.3516.043/4" NPT9 - 16333014Blå RAL 5012download
184.3518.043/4" NPT13 - 18333014Blå RAL 5012download
184.7520.041" NPT13 - 20423819Blå RAL 5012download
184.7525.041" NPT18 - 25423819Blå RAL 5012download
184.7620.041 1/4" NPT13 - 2046/ 423816Blå RAL 5012download
184.7625.041 1/4" NPT18 - 2546/ 423816Blå RAL 5012download
184.7726.041 1/2" NPT20 - 26534520Blå RAL 5012download
184.7732.041 1/2" NPT22 - 32534520Blå RAL 5012download
