Kapslingar

aluTWIN

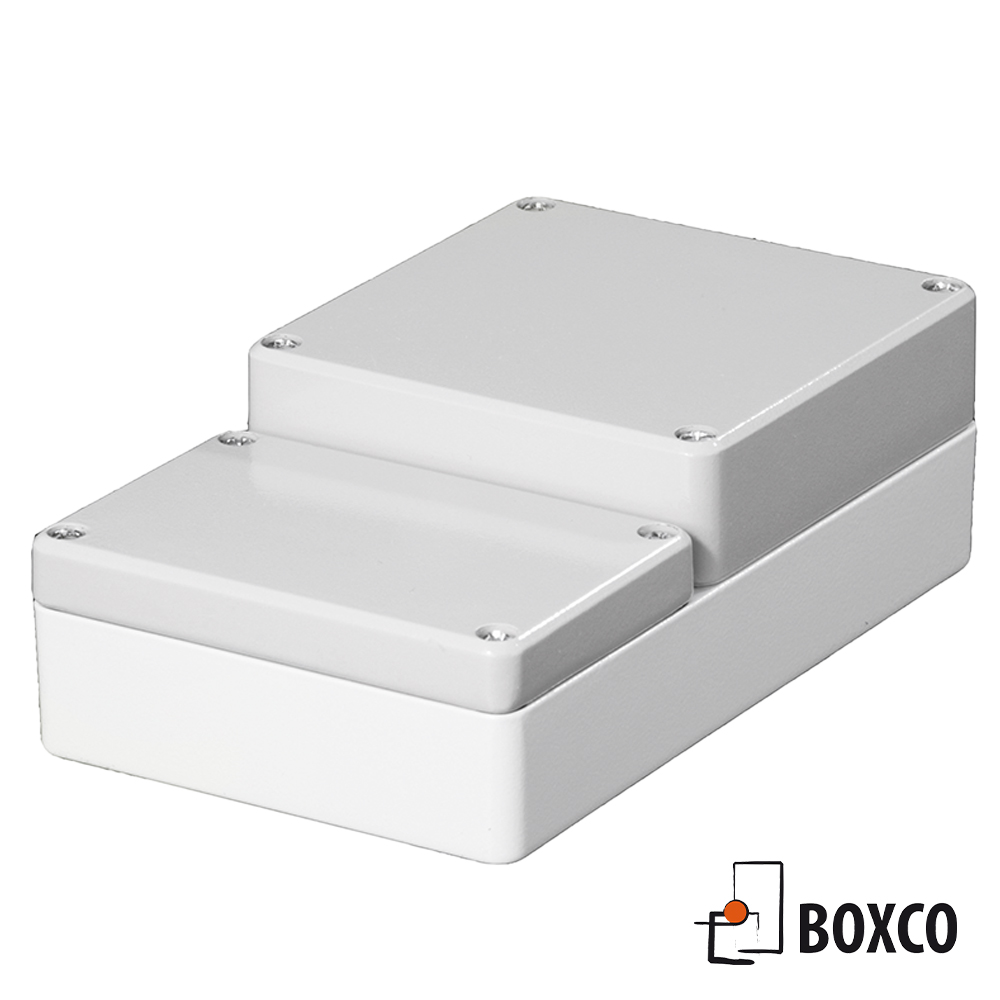

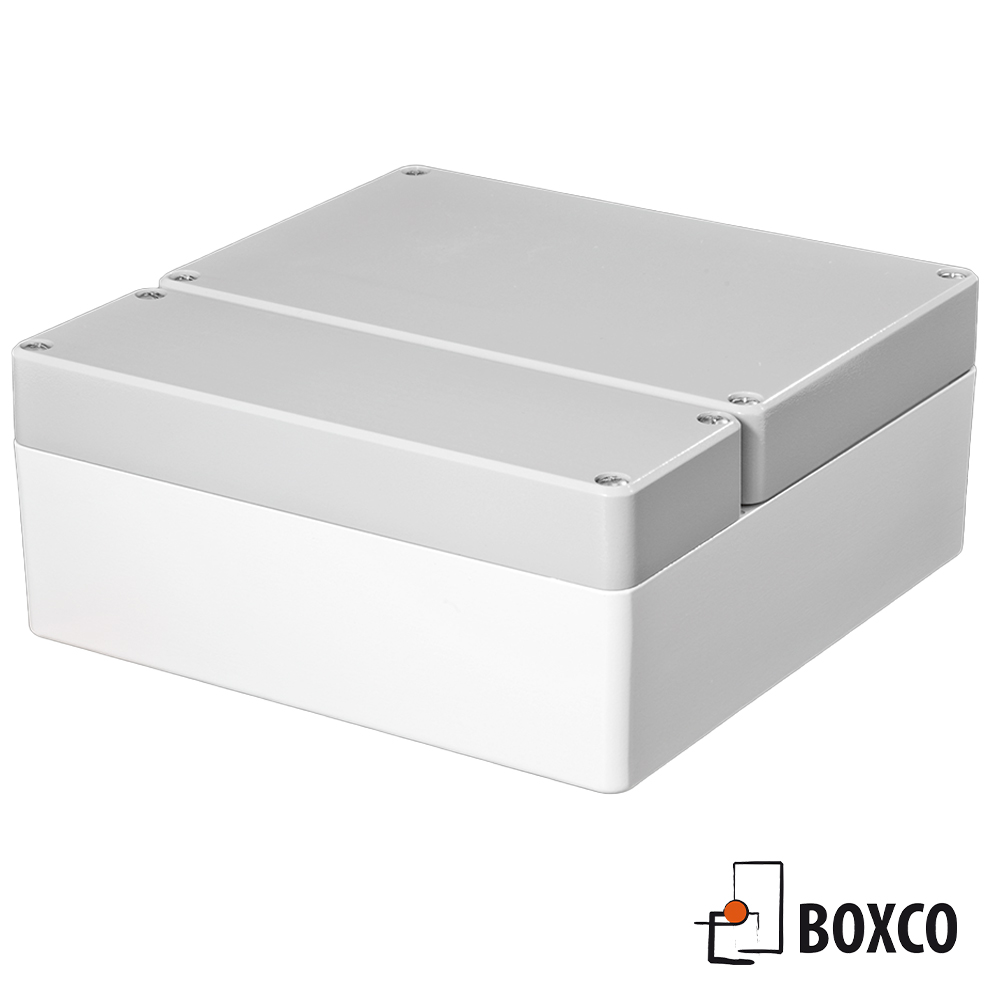

Kraftig 2 – kammar kapsling i aluminium. Separata lock till varje kammare. Tillgänglig i 6 storlekar med olika lockkombinationer.

Kategori: Aluminiumkapslingar

Ladda ner produktkatalog

aluTWIN_TitleImageLarge_TitleImageLarge


Egenskaper

FEATURES

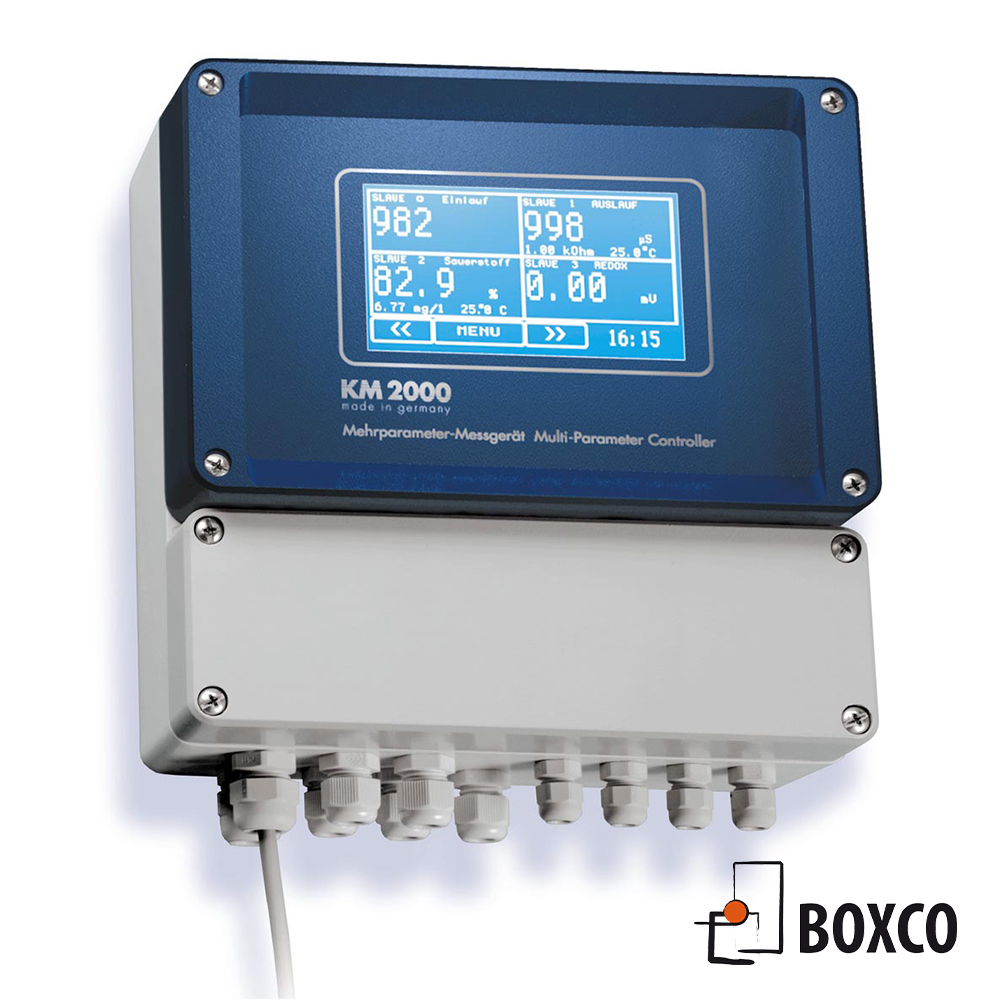

  • High performance dual-chamber aluminium enclosures for heavy duty control equipment

  • Separate sections for the electronics and
    the terminals
  • Slide-in separation panel between the two
    chambers
  • With or without a recessed anodised
    aluminium front panel in the main lid
  • Design based upon our aluNORM series
  • Weatherproof and waterproof
  • Internal screw bosses for mounting
    plates, PCB supports and DIN rails



Teknisk data

TECHNICAL DATA
IP rating:
IP66 / EN 60529
IP67 on request (Option Code. PLUS)
Material:
Die-cast aluminium EN AC-44300 DIN EN 1706 (GD Al Si 12/DIN 1725)
1° mould slope for casting ejection
See material specifications for more information
Finish/colour:
Powder coat paint
Base: light grey, RAL 7035
Lids: Window grey, RAL 7040
Special finish & colours on request
Lid gasket:
Standard: TPE gasket -30°C to +100°C
Option code: PLUS: Neoprene gasket -30°C to +100°C IP 67 (only for types ATF and AT, not type KTE)
Option code: D: Silicon gasket -50°C to +140°C
Option code EMV: EMC conductive gasket IP 66 rated -30°C to +100°C
Lid screws:
Captured stainless steel screws
Certification:
GOST R (Russian Standards)
Mounting:
Common screw ports for external mounting and lid fixing screw, outside the sealed area
Technical Notes:
Technical specifications for the products on this page may be subject to change at any time without prior notice. Please check any critical specifications or criteria by contacting our sales team before ordering your products. No liability is accepted for typographical or any other errors.




Certifieringar


MontageplattaSilikonpackningYttre montagefötterEMC avskärmningKromatiseringKorrosionsskyddDIN skenaGångjärnSkruv med dubbelspårLadda ner ritning

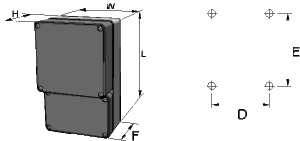

Typeart.nrL (mm)W (mm)H (mm)DEFVikt (g)MDAEMCKLTSDVCAD
ATF 100105.100.00016610055878740730checkcheckclosecheckcheckcheckcheckcloseclosedownload
AT 100104.100.00016510081878740770checkcheckclosecheckcheckcheckcheckcloseclosedownload
AT 160104.160.0002401601031421421032170checkcheckcheckcheckcheckcheckcheckcheckcheckdownload
AT 162104.162.0002402401032221421033900checkcheckcheckcheckcheckcheckcheckcheckcheckdownload
