Ex Kopplingslådor serie QX-V ATEX

Ex Kopplingslådor serie QX-V ATEX

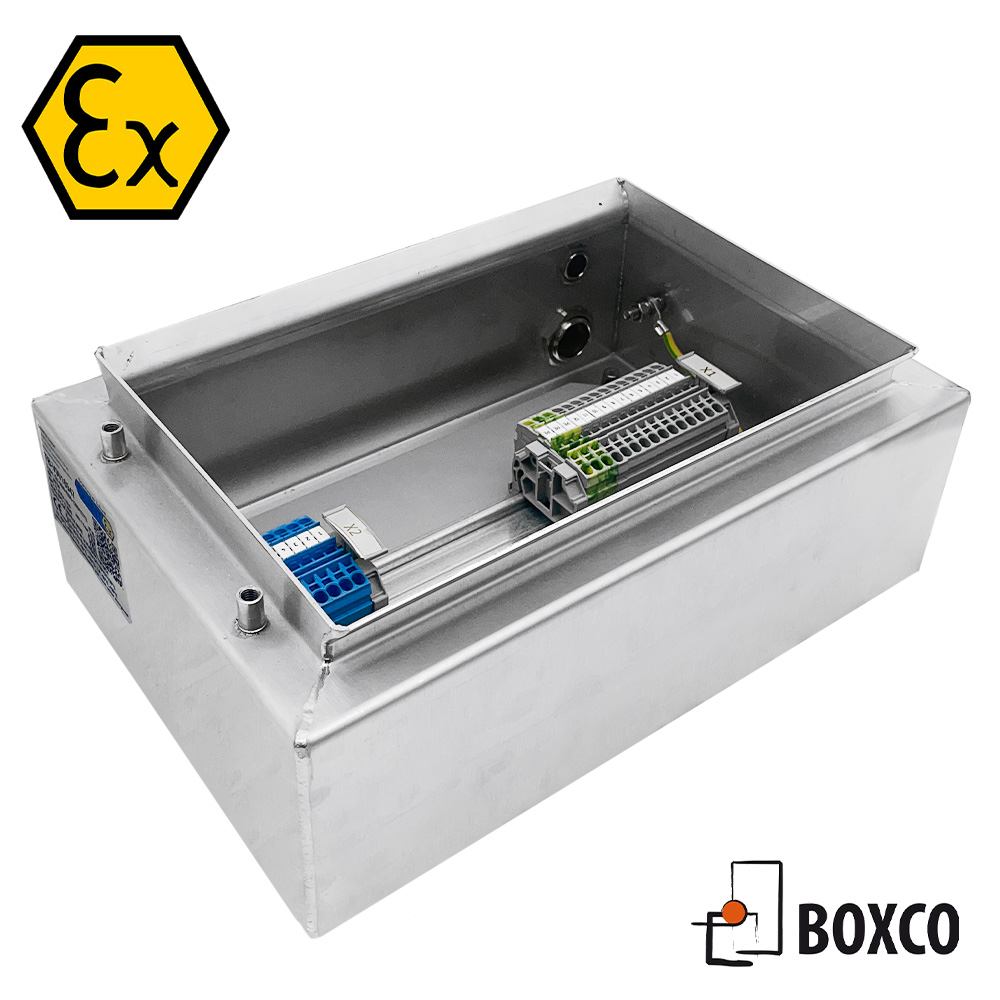

Ex e / Ex i kopplingslådor är gjorda av borstat rostfritt stål eller elektropolerat rostfritt stål 1.4404, AISI 316L är idealiska för användning under tuffa driftsförhållanden.

Med 30 grundstorlekar i olika höjder är de universellt användbara.

Med radplintar upp till 300 mm².

Locket med integrerad silikonpackning lämpar sig för de mest extrema temperaturområdena och gör kapslingen användbar över hela världen.

  • Beständiga kopplingslådor av rostfritt stål
  • Kapslingsklass IP66
  • Extern jordanslutning M6
  • Utförande som skruvlock eller (gångjärn med lås på begäran)

Kategori: Elektronikkapslingar EX

Ladda ner produktkatalog

Egenskaper

Specification for Ex area

Marking according to 2014/34/EU

 II 2 GD

Type of protection

II 2G Ex eb IIC and II 2G Ex ib IIC II 2D Ex tb IIIC

Ambient temperature °C Silicone gasket

Gas temperature class

Dust temperature

MIN

MAX

T*C

°C

-60

50

T6

85

-60

55

T5

100

-60

60

T4

120

Max. temperature range

-60..+120°C

Ingress protection

IP 66

Ex-Zone

1, 2, 21, 22

Applicable at risk of mechanical exposure (Impact resistance)

high (7 Joule)

Gas groups

IIA; IIB; IIC

Certificates

ATEX, IECEx, EAC TC-RU, NEMA 4X

Enclosure specification

Enclosure material

1,2mm stainless steel 1.4404 (316L)

Surface

Stainless steel brushed Option: Stainless steel electro-polished

Lid fixing

Full removable lid with captive M6 stainless steel screws

Gasket

One piece of silicone

Earthing

Earthing bolt internal/external

Mounting

Mounting lugs or rivet nuts M6 from Backside

Options

Mounting plate, zinc plated

MP-VxxI xx = 1-30 (Size of enclosure)

Teknisk data

Kapsling specifikation

Kapslings material

1,2mm rostfritt stål 1.4404 (316L)

Ytbehandling

Rostfritt stål borstad

Tillval: Elektropolerat rostfritt stål

Lock fixering

Helt avtagbart lock med M6-skruvar i rostfritt stål

Packning

En hel silikon bit

Jordning

Jordbult intern/extern

Montering

Monteringsöglor eller nitmuttrar M6 från baksidan

ATEX certifikat

IECEx certifikat

EC deklaration

Manual


Certifieringar


Specification for Ex area

Marking according to 2014/34/EU

 II 2 GD

Type of protection

Skyddsmärkning

II 2G Ex eb IIC and II 2G Ex ib IIC II 2D Ex tb IIIC

Ambient temperature °C Silicone gasket

MIN                                                    MAX

Gas temperature class

T*C

Dust temperature

°C

-60

+50

T6

85

-60

+55

T5

100

-60

+60

T4

120

Max. temperature range

-60..+120°C

Ingress protection

IP 66

Ex-Zone

1, 2, 21, 22

Applicable at risk of mechanical exposure (Impact resistance)

high (7 Joule)

Gas groups

IIA; IIB; IIC

Certificates

ATEX, IECEx, EAC TC-RU, NEMA 4X
