aluCLIC

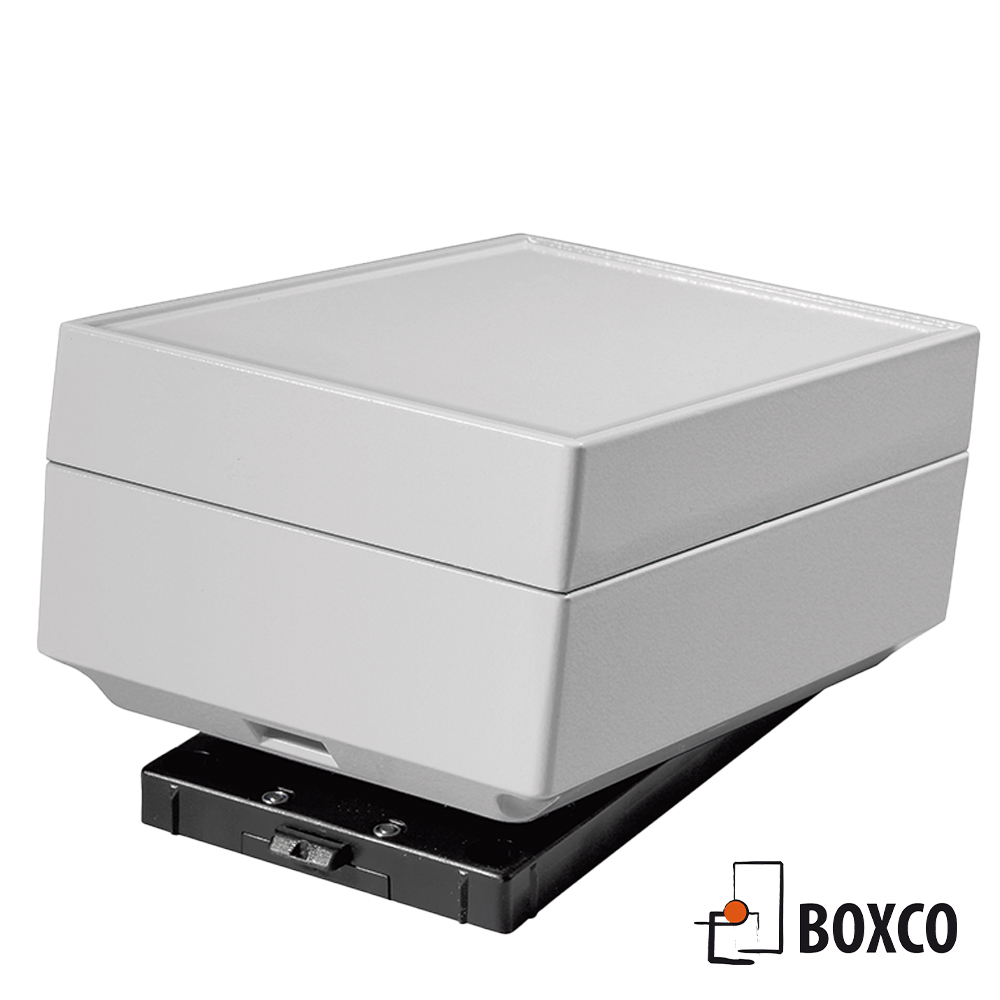

aluCLIC från Rolec är en nyutvecklad formgjuten aluminiumkapsling med en fästplatta i underkant som möjliggör att SEKUNDSNABBT lossa kapslingen för att utföra kalibrering, service, underhåll eller utbyte av t.ex. mätinstrument, styrutrustning eller operatörspaneler.



Kategori: Aluminiumkapslingar

Ladda ner produktkatalog

Egenskaper

FEATURES
  • Modern electronic enclosures designed for fast
    installation and replacement

  • No need to open the lid to wall mount or
    dismount the enclosure
  • The mounting device locates on the underside
    of the enclosure, and a spring loaded latch
    secures the case with a "CLICK"
  • No visible fixings; the lid screws are hidden
    on the underside of the base
  • Recess in the lid for locating a membrane
    keypad or product label
  • Go anywhere: wall, bulkhead, machine etc.
  • Internal screw pillars for mounting PCBs
    and assemblies



Teknisk data

TECHNICAL DATA / OPTIONS
IP rating:
IP67 / EN 60529
IP69K / DIN 40050 (Option code: PLUS69K)
Material:
Die-cast Aluminium: EN AC- 44300 DIN EN 1706 (GD AL Si 12/DIN 1725)
1° die-casting draft for cast ejection
Mounting device - POM plastic
See material specifications for more information
Finish/
colour:
Powder coat, light grey, RAL 7035
Mounting device - black, RAL 9005
Special finish & colours on request
Option code: L - Corrosion proof coating
Lid gasket:
TPE thermoplastic gasket
-40°C to +120°C
EMC Shielding :
Option code: EMV - Enclosure fitted with EMC gasket and interior masked free of paint
Lid screws:
Captured stainless steel screws
Mounting:
Enclosure snaps on to the special mounting device. Spring loaded latch can be
disengaged with a flat screw driver
Mounting Plate:
Option code: M - Order with case
Technical Notes:
Technical specifications for the products on this page may be subject to change at any time without prior notice. Please check any critical specifications or criteria by contacting our sales team before ordering your products. No liability is accepted for typographical or any other errors.




Certifieringar


MontageplattaKromatiseringEMC avskärmningKorrosionsskyddPLUS IP69KLadda ner ritning
Typeart.nrL (mm)W (mm)H (mm)DEVikt (g)MKEMCLPLUS69KCAD
ACL 092240.092.00013090704696610checkcheckcheckcheckcheckdownload
ACL 112240.112.0001601107066116810checkcheckcheckcheckcheckdownload
ACL 132240.132.00020013070861561070checkcheckcheckcheckcheck
