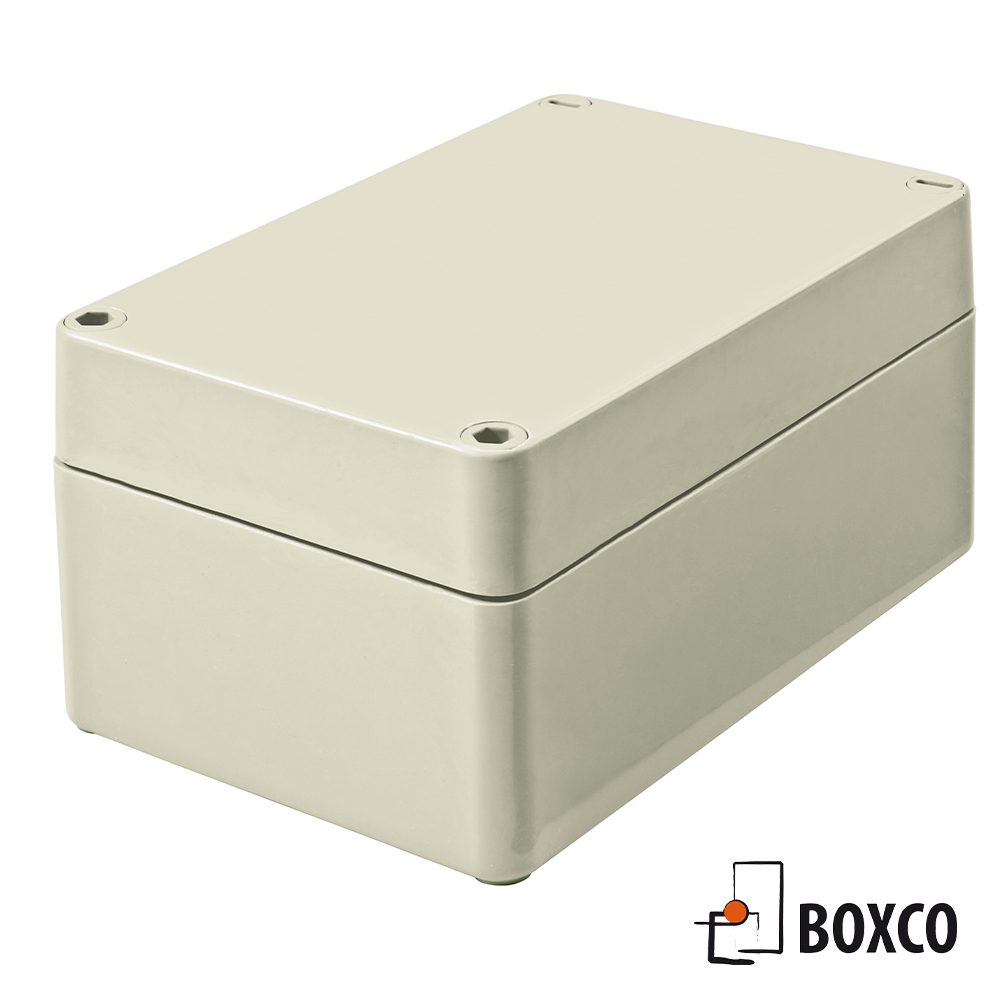

polyTOP
Polyesterkapsling kompatibel med aluNORM. Större inneutrymme pga. ett kombinerat en-kanal system för fastsättning av lock- och fastskruvar. Tillgänglig i 13 storlekar.
Kategori: Polyester
Ladda ner produktkatalogPolyesterkapsling kompatibel med aluNORM. Större inneutrymme pga. ett kombinerat en-kanal system för fastsättning av lock- och fastskruvar. Tillgänglig i 13 storlekar.
Kategori: Polyester
Ladda ner produktkatalogSerie: polyTOP
Skyddsklass: IP 67
Lådstorlek:
13 olika mått från 82 x 82 x 60mm till 404 x 404 x 160mm
Användningsområden:
Kemisk och petrokemisk industri, fordonsteknik, fartygsteknik, utomhusbruk
Lådmaterial
Halogenfri glasfiberförstärkt polyester
Deformationsgrad 1° - Räta innermått minskar 1° mot lådans botten.
Skruvar
Fast monterade och korrosionsfria lockskruvar av polyamid.
Skyddsklass
IP 66 / EN 60529 eller IP 67
Brandtekniskt beteende
V0 självsläckande UL 94.
Isolering
Helt skyddsisolerade enligt VDE 0100.
Packning
Olje- och bensinresistent kloroprenpackning (-30°C till +100°)
På begäran: Silikonpackning (-50°C till +140°C).
Montering
Enkanalslock- och monteringsfäste utanför packningen.
Yttermontering
Ytterfästen i rostfritt stål.
Inbyggnad
Pressmuttrar i lådans botten.
Färg
Grå RAL 7032 eller specialmaterial i svart.
Ytmotstånd
Grå > 109 Ohm
Svart < 109 Ohm
![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Type | art.nr | L (mm) | W (mm) | H (mm) | D | E | Vikt (g) | S | IN | V | W | X | H | M | A | T | PLUS | CAD |
PT 080 | 132.080.000 | 82 | 82 | 60 | 67 | 67 | 240 | close | check | thumbnails | close | close | close | check | check | check | check | download |
PT 082 | 132.082.000 | 122 | 82 | 60 | 107 | 67 | 340 | close | check | thumbnails | close | close | close | check | check | check | check | download |
PT 084 | 132.084.000 | 162 | 82 | 60 | 147 | 67 | 420 | close | check | thumbnails | close | close | close | check | check | check | check | download |
PT 100 | 132.100.000 | 102 | 102 | 81 | 87 | 87 | 520 | check | check | thumbnails | close | close | close | check | check | check | check | download |
PT 102 | 132.102.000 | 152 | 102 | 81 | 137 | 87 | 650 | check | check | thumbnails | close | close | close | check | check | check | check | download |
PT 104 | 132.104.000 | 202 | 102 | 81 | 187 | 87 | 770 | check | check | thumbnails | close | close | close | check | check | check | check | download |
PT 120 | 132.120.000 | 124 | 124 | 100 | 102 | 102 | 800 | check | close | thumbnails | check | check | check | check | check | check | check | download |
PT 122 | 132.122.000 | 184 | 124 | 100 | 162 | 102 | 860 | check | close | thumbnails | check | check | check | check | check | check | check | download |
PT 124 | 132.124.000 | 244 | 124 | 100 | 222 | 102 | 920 | check | close | thumbnails | check | check | check | check | check | check | check | download |
PT 160 | 132.160.000 | 164 | 164 | 100 | 142 | 142 | 820 | check | close | thumbnails | check | check | check | check | check | check | check | download |
PT 162 | 132.162.000 | 244 | 164 | 100 | 222 | 142 | 1100 | check | close | thumbnails | check | check | check | check | check | check | check | download |
PT 164 | 132.164.000 | 324 | 164 | 100 | 302 | 142 | 1340 | check | close | thumbnails | check | check | check | check | check | check | check | download |
PT 400 | 132.400.000 | 404 | 404 | 160 | 382 | 382 | 6500 | check | close | thumbnails | check | check | check | check | check | check | check | download |
