  • Ex_ATEX_Alukapsling

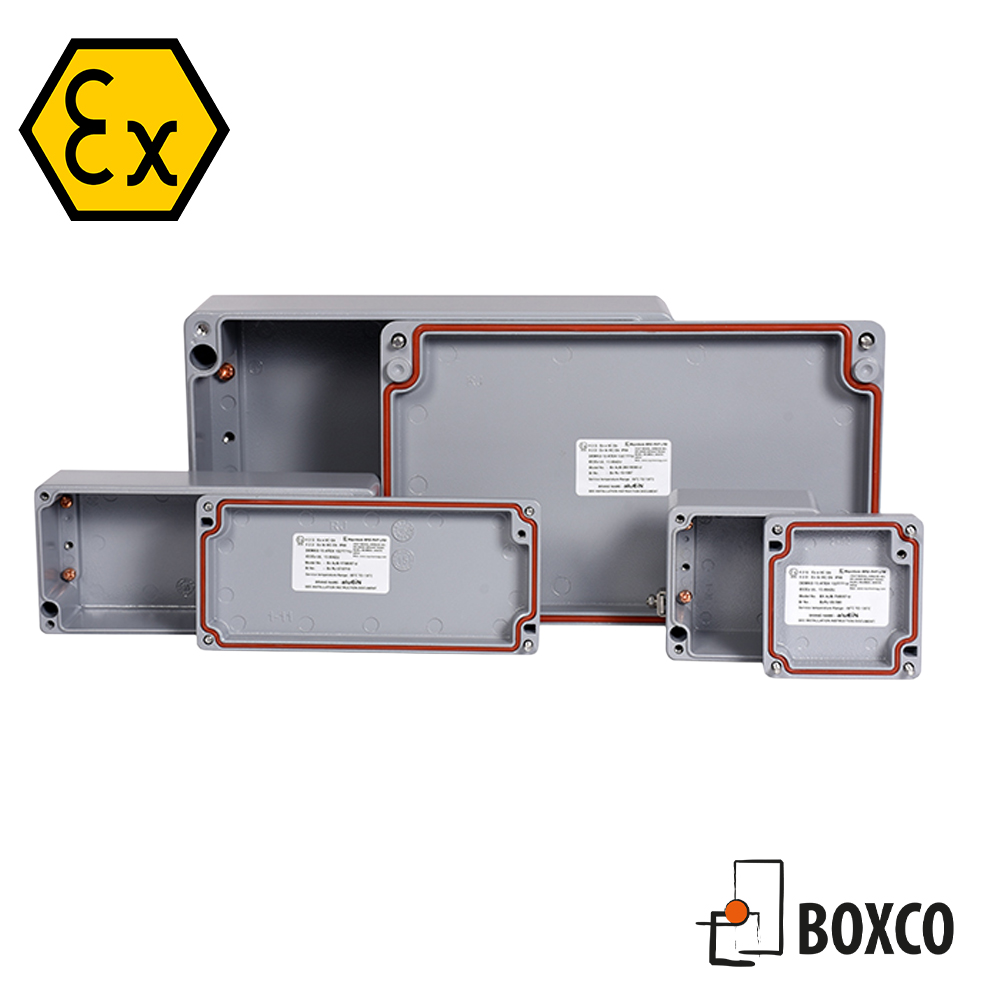

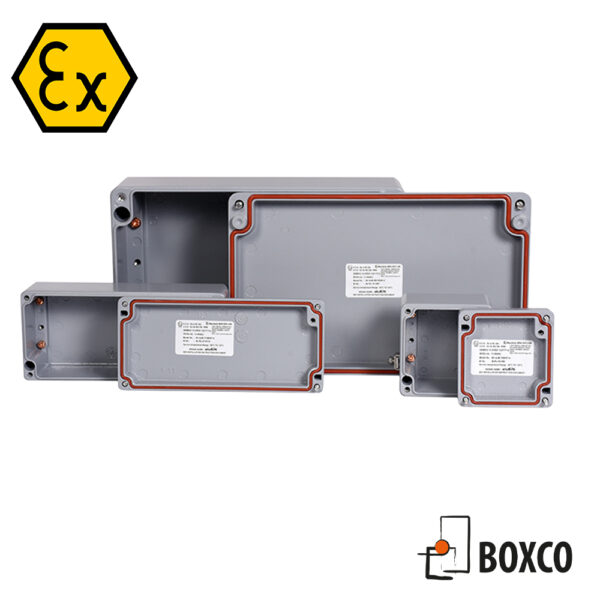

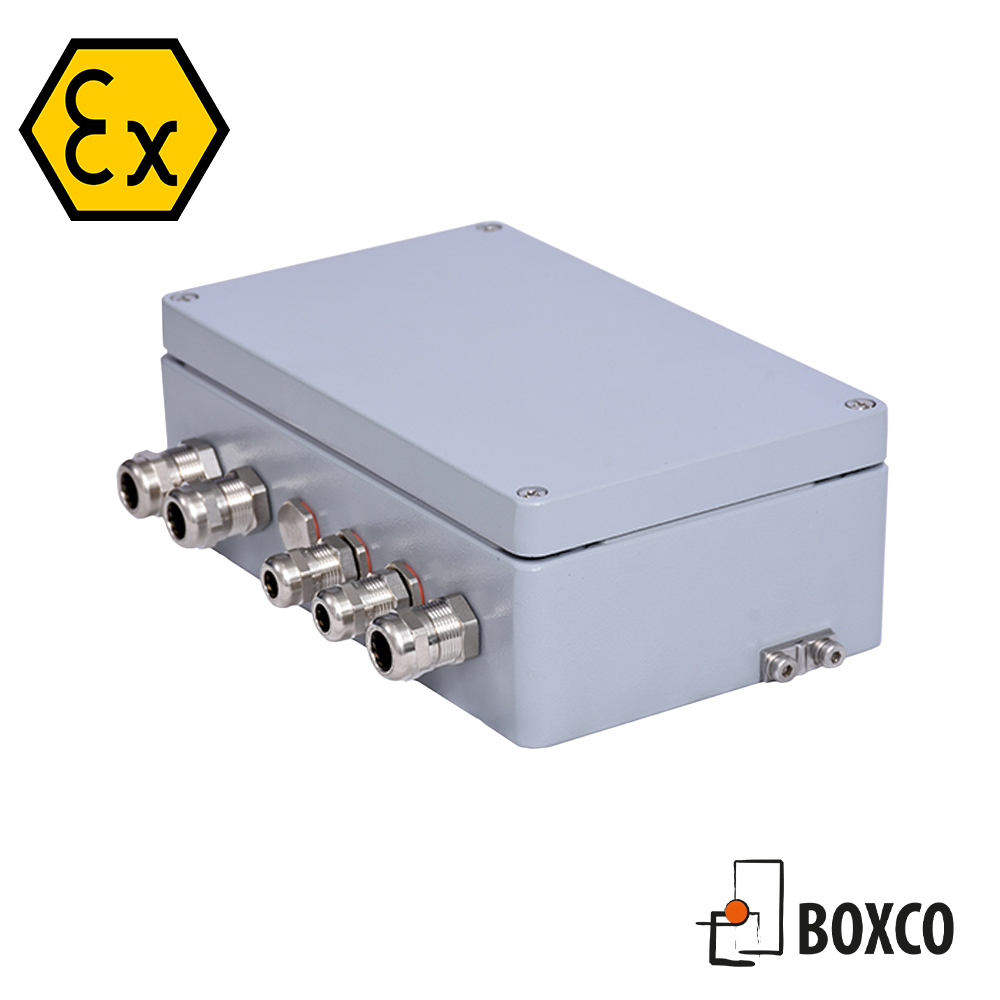

EX RJ – Ex/ATEX Aluminiumkapslingar

Ex/ATEX godkända kapslingar i Aluminium.

Även tillgängliga som bearbetade enligt ritning klara för montage.
Vi har även möjlighet att bestycka kapslingen redan i fabriken samt bereda med godkännande för Ex/ATEX så artikeln bara är att skicka ut för slutmontering.

Kontakta oss så kan vi berätta mer.

Kategori: Kapslingar

Ladda ner produktkatalog

Egenskaper

Component Marking
II 2G Ex eb IIC Gb
II 2D Ex tb IIIC Db IP66
SIRA 18 ATEX 3261U
IECEx SIR 18.0070U

Equipment Marking
II 1GD / II 2GD
Ex eb IIC T6…T4 Gb
Ex eb ia IIC T6…T4 Gb
Ex tb IIIC T85°C, T100°C, T135°C Db
Ex ia IIC T6…T4 Ga
Ex ia IIIC T85°C, T100°C, T135°C Da
SIRA 19 ATEX 3015X
IECEx SIR 19.0020X

Teknisk data

Material : AlSi12
Surface : Plain or Powder Coated
Lid Screw : Stainless Steel, Captive Screw
Tighting Torque : 5 Nm
Service Temperature : -60°C to + 140°C (Silicone)
Mechanical Strength : Accordance With EN/IEC 60079-0, Impact energy > 7 Nm
Protection Class : IEC/EN 60529, IP 66
Compliance Standard : IEC/EN 60079-0, IEC/EN 60079-7, IEC/EN 60079-11 and IEC/EN 60079-31.
Standard Color : RAL 7001, 7031, 7032, 7032, 7035, 7038, Black RAL 9004, White RAL 9010 (Other on request)
Internal / External Earthing : 4 sqmm to 120 sqmm Internal and External
Accessories available with enclosures : Mounting plate / Allen lid screw / Sealable lid screw / External mounting brackets / External hinges


Certifieringar


aluKOM Enclosures Dimensions



Product Code Product Code Dimensions (mm)     Certification / Conformity Certification / Conformity
Component (only box) Equipment (box + ) Lenght With Height ATEX IECEx Download
RJ 586434 EXRJ 586434 58 64 34
Y
Y Download
RJ 986434 EXRJ 986434 98 64 34 Y Y Download
RJ 156434 EXRJ 156434 150 64 34 Y Y Download
RJ 758057 EXRJ 758057 75 80 57 Y Y Download
RJ 128057 EXRJ 128057 125 80 57 Y Y Download
RJ 178057 EXRJ 178057 175 80 57 Y Y Download
RJ 258054 EXRJ 258054 250 80 54 Y Y Download
RJ 101080 EXRJ 101080 100 100 80 Y Y Download
RJ 121280 EXRJ 121280 122 120 81
Y
Y Download
RJ 121290 EXRJ 121290 122 120 91 Y Y Download
RJ 141490 EXRJ 141490 140 140 90 Y Y
RJ 161080 EXRJ 161080 160 100 81 Y Y Download
RJ 161691 EXRJ 161691 160 160 91 Y Y Download
RJ 181810 EXRJ 181810 180 180 100 Y Y
RJ 201490 EXRJ 201490 200 140 90 Y Y
RJ 202311 EXRJ 202311 200 230 110 Y Y Download
RJ 202318 EXRJ 202318 200 230 180 Y Y
RJ 221281 EXRJ 221281 220 120 81 Y Y Download
RJ 221290 EXRJ 221290 220 120 90 Y Y Download
RJ 261690 EXRJ 261690 260 160 90 Y Y Download
RJ 281810 EXRJ 281810 280 180 100
RJ 282311 EXRJ 282311 280 230 110 Y Y Download
RJ 332311 EXRJ 332311 330 230 110 Y Y Download
RJ 332318 EXRJ 332318 330 230 180 Y Y Download
RJ 361690 EXRJ 361690 360 160 90 Y Y Download
RJ 402311 EXRJ 402311 400 230 110 Y Y
RJ 403111 EXRJ 403111 404 313 110 Y Y
RJ 403118 EXRJ 403118 404 313 180 Y Y
RJ 603111 EXRJ 603111 600 310 110 Y Y
RJ 603118 EXRJ 603118 600 310 180 Y Y
