Explosion protection: Zones 1, 2, 21 and 22.
- Degree of protection IP66.
- IECEx and ATEX international certification.
- Operation handle with padlock device.
- Utilization category: AC-23, AC-3.

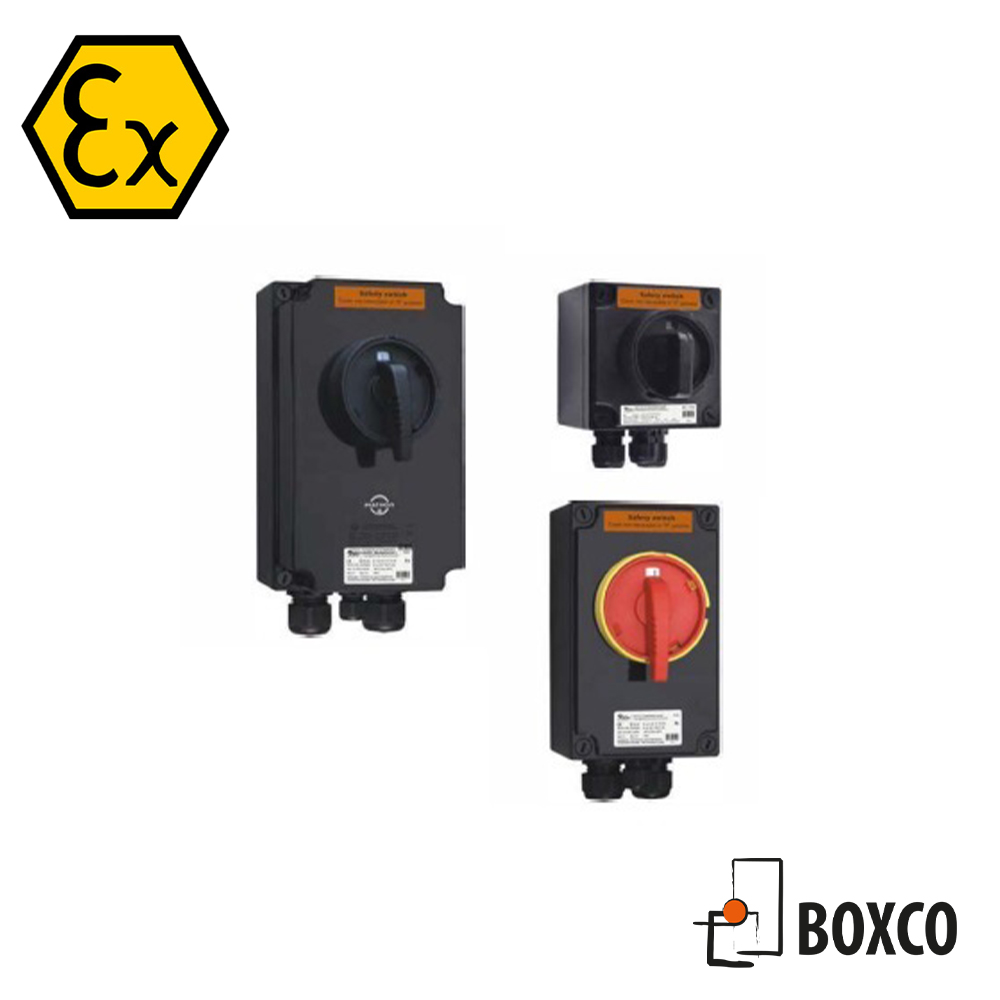

Säkerhetsbrytare ATEX GRP
Säkerhetsbrytare Ex
Säkerhetsbrytarna i GRP serien kopplar säkert bort strömförsörjningen till maskiner och systemkomponenter för rengöring och reparation enligt föreskrifter så länge som omkopplaren är i 0-läget.
Alla installerade lastfrånskiljare har en AC-3 omkopplingskapacitet.
Strömbrytarna kan låsas i 0-läge med hjälp av hänglås.
Zon 1, 2, 21 och 22.
Säkerhetsbrytaren är tillverkad av glasfiberförstärkt polyester (GRP).
Skyddsklass IP66.
Frekvens AC50/60Hz, märkspänning 230V – 690V, märkström 16 – 180A
| GRP SAFETY SWITCH – 16A | ||||||
| RATED CURRENT | VOLTAGE | TERMINAL | RATED INSULATION VOLTAGE | RATED IMPULSE WITHSTAND VOLTAGE | RATED SHORT- TIME WITHSTAND CURRENT (Icw) | RATED SHORT-TIME MARKING CAPACITY |
| Max. 16A | Max. 400V | 2×2.5mm² | 690V | 6KV | 10KA | 17KA |
| GRP SAFETY SWITCH – 25A | ||||||
| RATED CURRENT | TERMINAL | CAPACITY OF SWITCH | RATED INSULATION VOLTAGE | RATED IMPULSE WITHSTAND VOLTAGE | RATED SHORT-TIME WITHSTAND CURRENT (Icw) | RATED SHORT-TIME MARKING CAPACITY |
| Max. 25A | 2x4mm² | 230V 25A | 400V 25A 500V 20A | 690V 16A |
800V | 6KV | 3KA | 10KA |
| GRP SAFETY SWITCH – 40A | ||||||
| RATED CURRENT | TERMINAL | CAPACITY OF SWITCH | RATED INSULATION VOLTAGE | RATED IMPULSE WITHSTAND VOLTAGE | RATED SHORT-TIME WITHSTAND CURRENT (Icw) | RATED SHORT-TIME MARKING CAPACITY |
| Max. 40A | 2x10mm² 2x4mm² (auxiliary) | 230V 40A | 400V 40A 500V 40A | 690V 32A |
800V | 6KV | 3KA | 10KA |
| GRP SAFETY SWITCH – 80A | ||||||
| RATED CURRENT | TERMINAL | CAPACITY OF SWITCH | RATED INSULATION VOLTAGE | RATED IMPULSE WITHSTAND VOLTAGE | RATED SHORT-TIME WITHSTAND CURRENT (Icw) |
RATED SHORT-TIME MARKING CAPACITY |
| Max. 80A | 1x35mm² 2x4mm² (auxiliary) | 230V 80A | 400V 80A 500V 80A | 690V 63A |
800V | 6KV | 10KA | 17KA |
| GRP SAFETY SWITCH – 180A | ||||||
| RATED CURRENT | TERMINAL | CAPACITY OF SWITCH | RATED INSULATION VOLTAGE | RATED IMPULSE WITHSTAND VOLTAGE | RATED SHORT-TIME WITHSTAND CURRENT (Icw) | RATED SHORT-TIME MARKING CAPACITY |
| Max. 180A | 1×50/70mm² (125A) 1x120mm² (180A) 2x4mm² (auxiliary) |
230V 180A | 400V 180A 500V 150A | 690V 125A |
800V | 6KV | 10KA | 17KA |
| TYPE | RATED CURRENT (A) | HANDLE’S COLOUR SWITCH | NUMBER OF POLES | AUXILIARY CONTACTS | ||
| To choose one | To choose between the black and red one | To choose between 3 poles, 3 poles + neutral, 4 poles and 6 poles | ||||
| SSIS-GRP | 16 25 40 80 180 |
R N | 3P 3PN 4P 6P |
NO/NC, 2NC, 2NO, NC, NO | ||
