Hygienic boxes AISI304

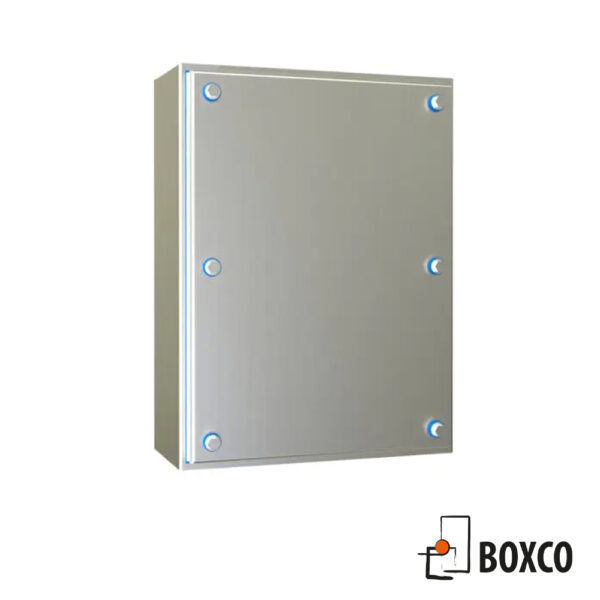

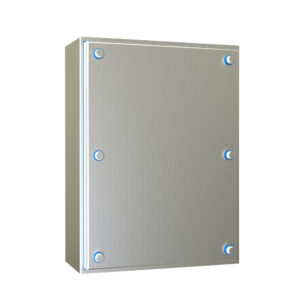

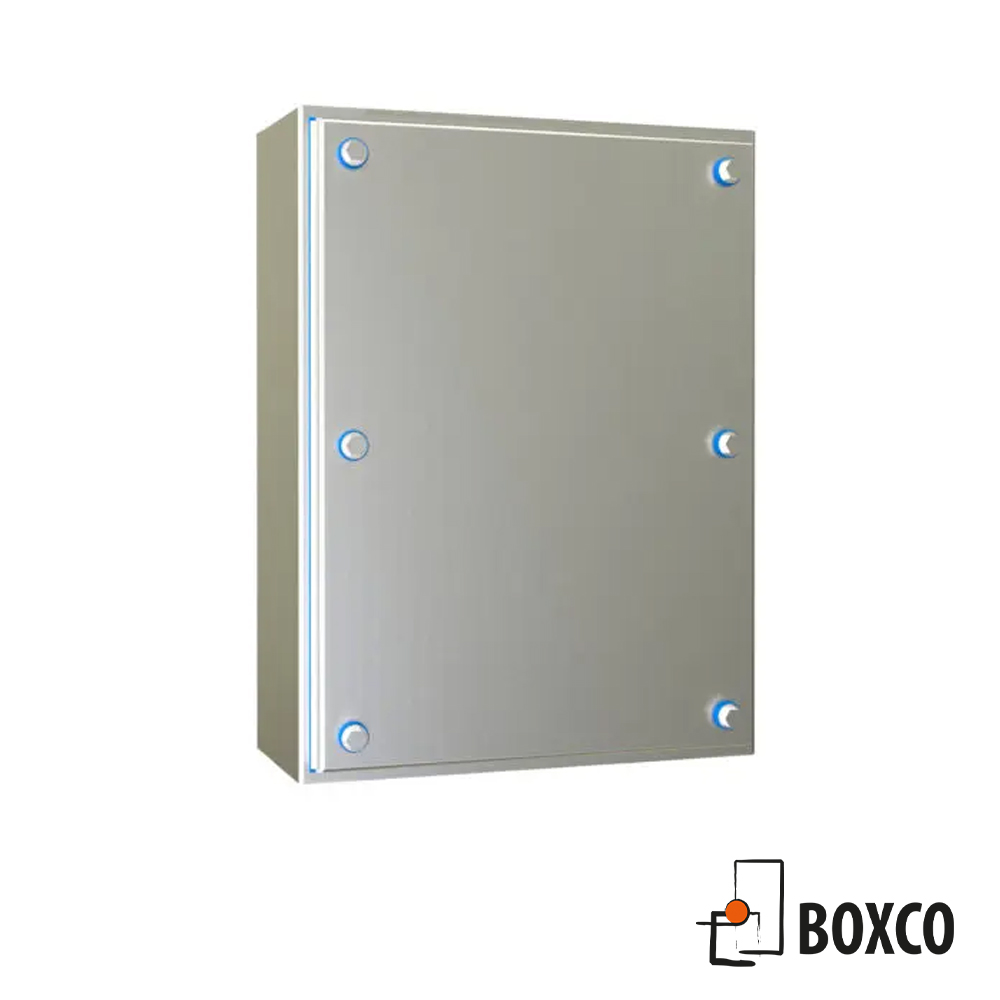

HYJ is designed to enclose electrical and/or electronic equipment and protect against harsh, hygienic environments
for junction box and wall mount applications.

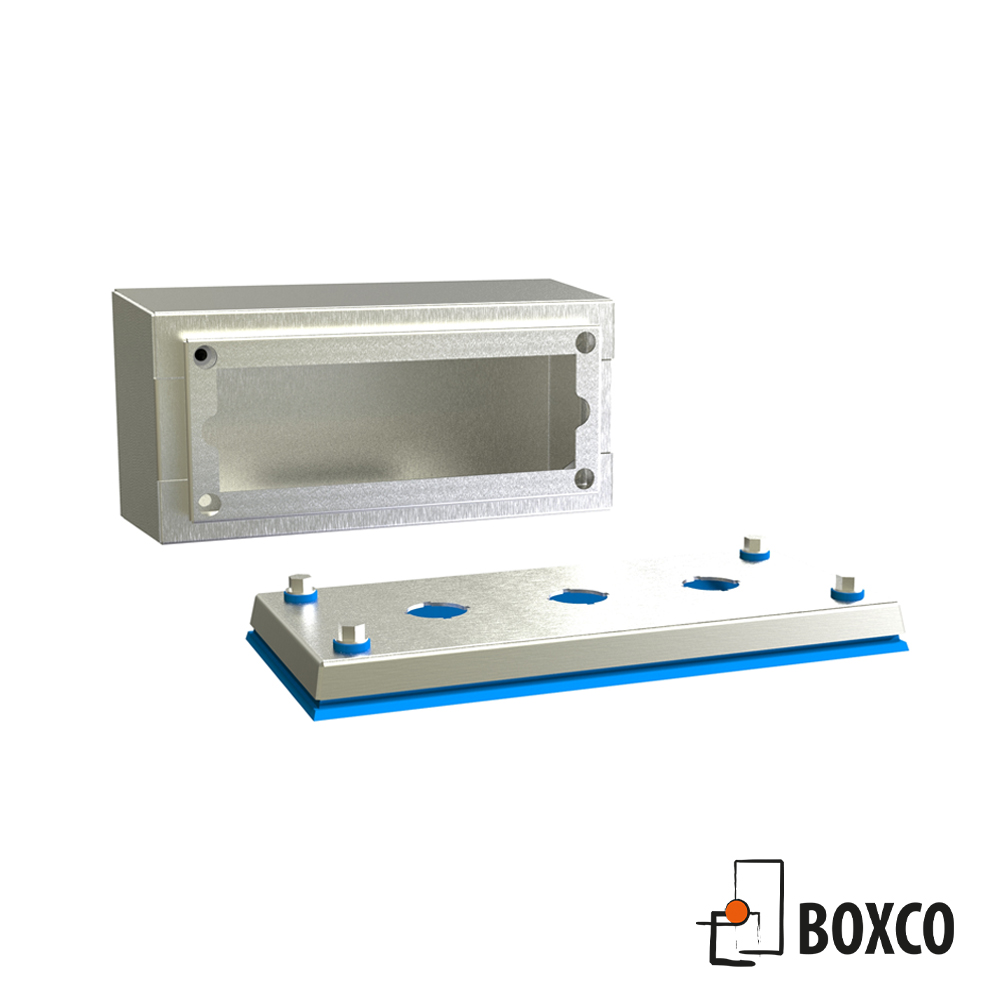

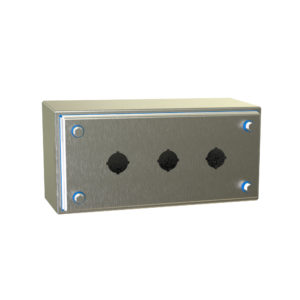

HYPB is designed to pushbuttons and indicators while protecting against harsh, hygienic environments.

Sloped on 4 sides prevent water from resting on top regardless of enclosure orientation.

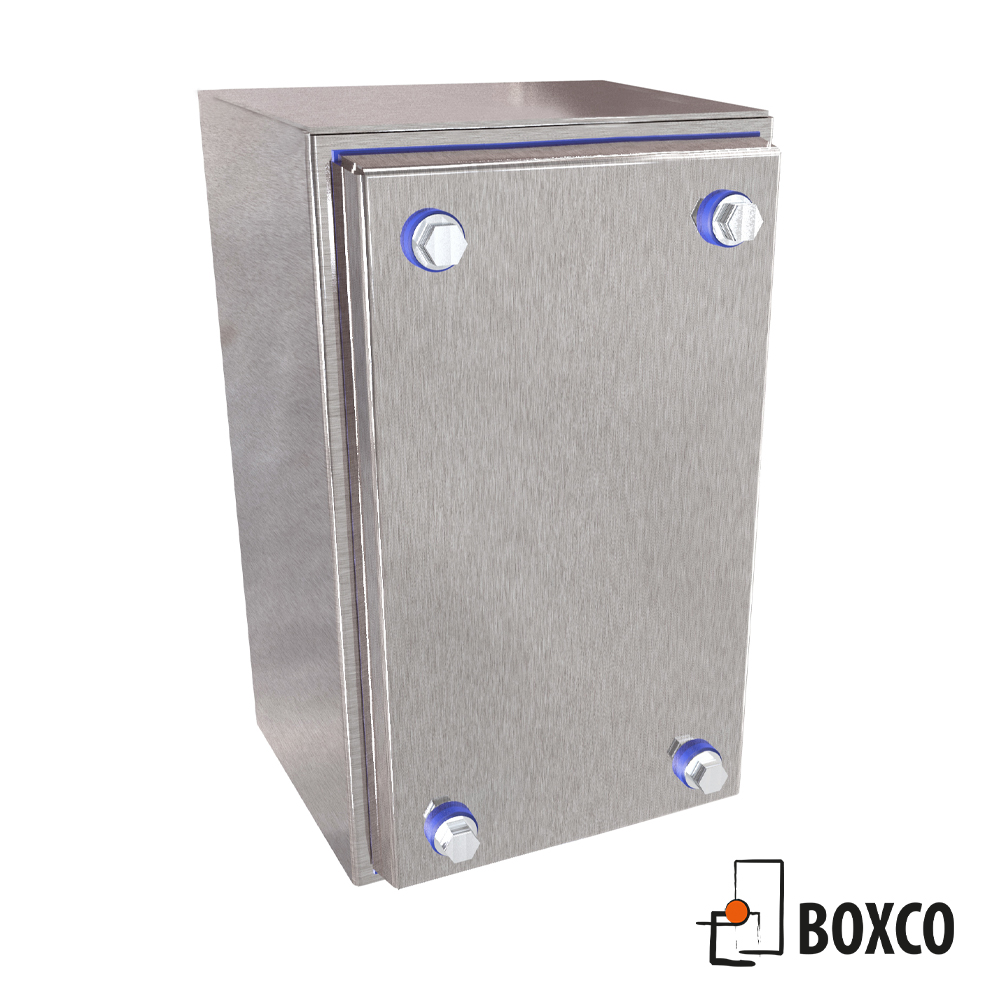

Hex head design screws and door-edge mounted silicone gasket allow for easy cleaning in hose-down environments.
A wide range of sizes and practical accessories make this product line a complete package.

Kategori: Food and Beverage produkter

Ladda ner produktkatalog

Egenskaper

Construction:
Formed 304 stainless steel.
Sloped 3° on all 4 sides.
Continuously welded seams ground smooth.

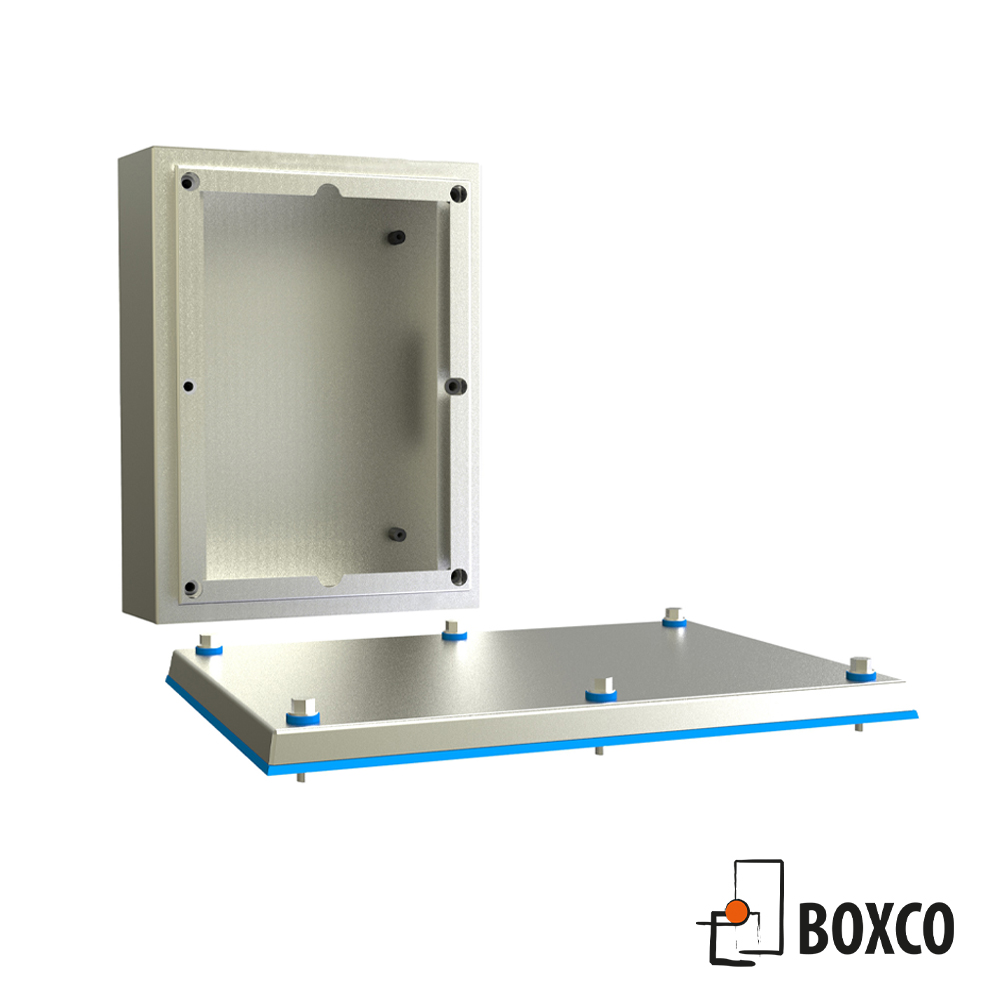

Hex head screw cover can be completely removed for modifications.

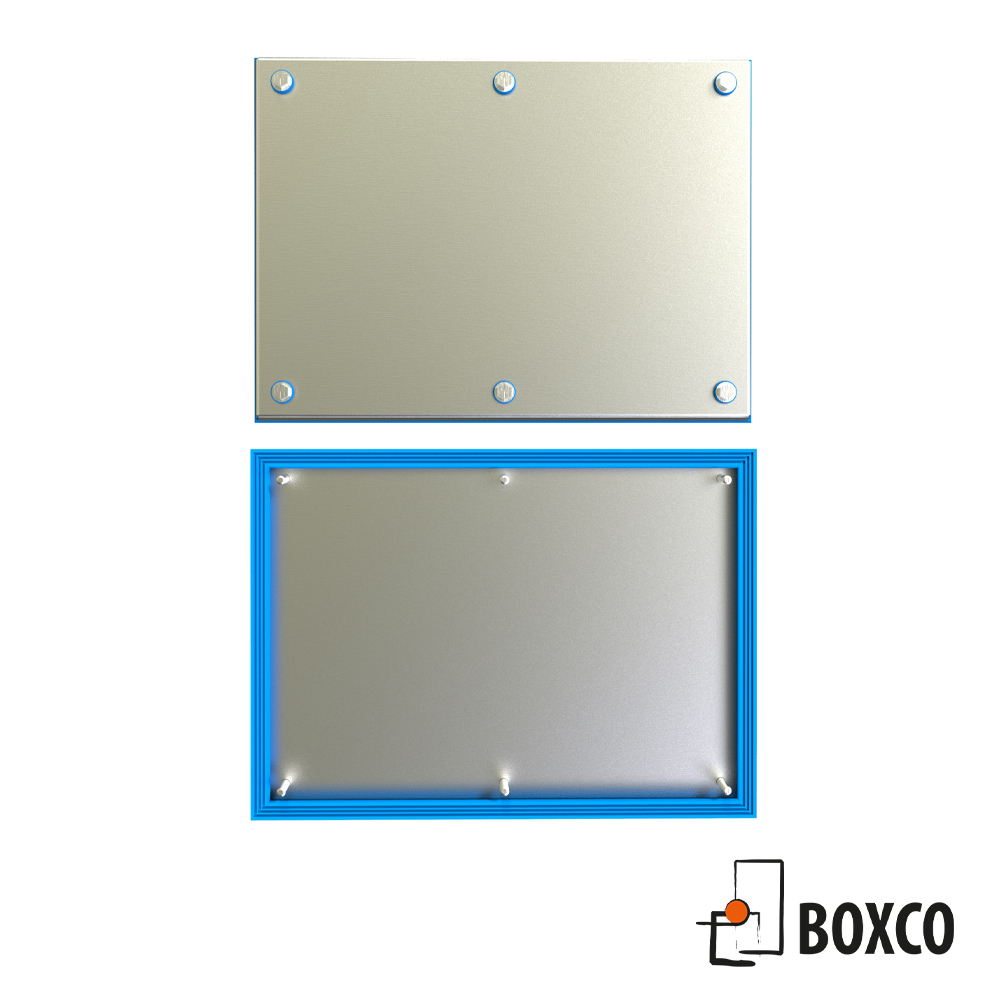

Silicone gasket mounts around entire door edge allowing for efficient cleaning in hygienic environments.
Gasket can be easily removed and re-installed for cleaning or replacement. Additional silicone gaskets can be ordered separately.

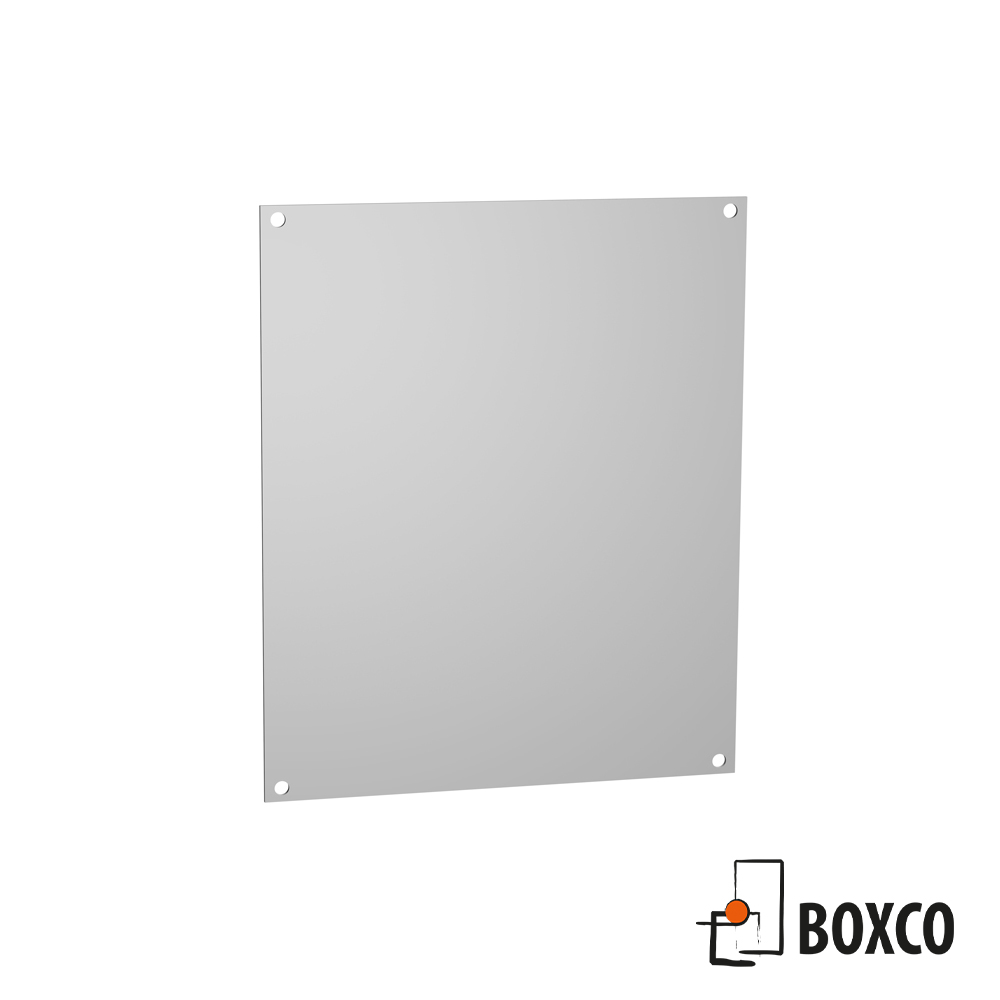

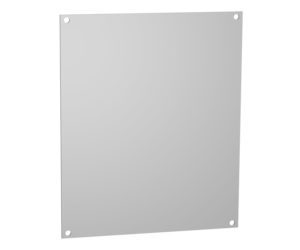

Studs provided for mounting inner panel.
Includes hardware kit with panel mounting nuts.
No pre-drilled wall mounting holes allow for flexible mounting alternatives - weld-in-place, stand-offs
Bonding stud provided on door and grounding stud installed in enclosure.

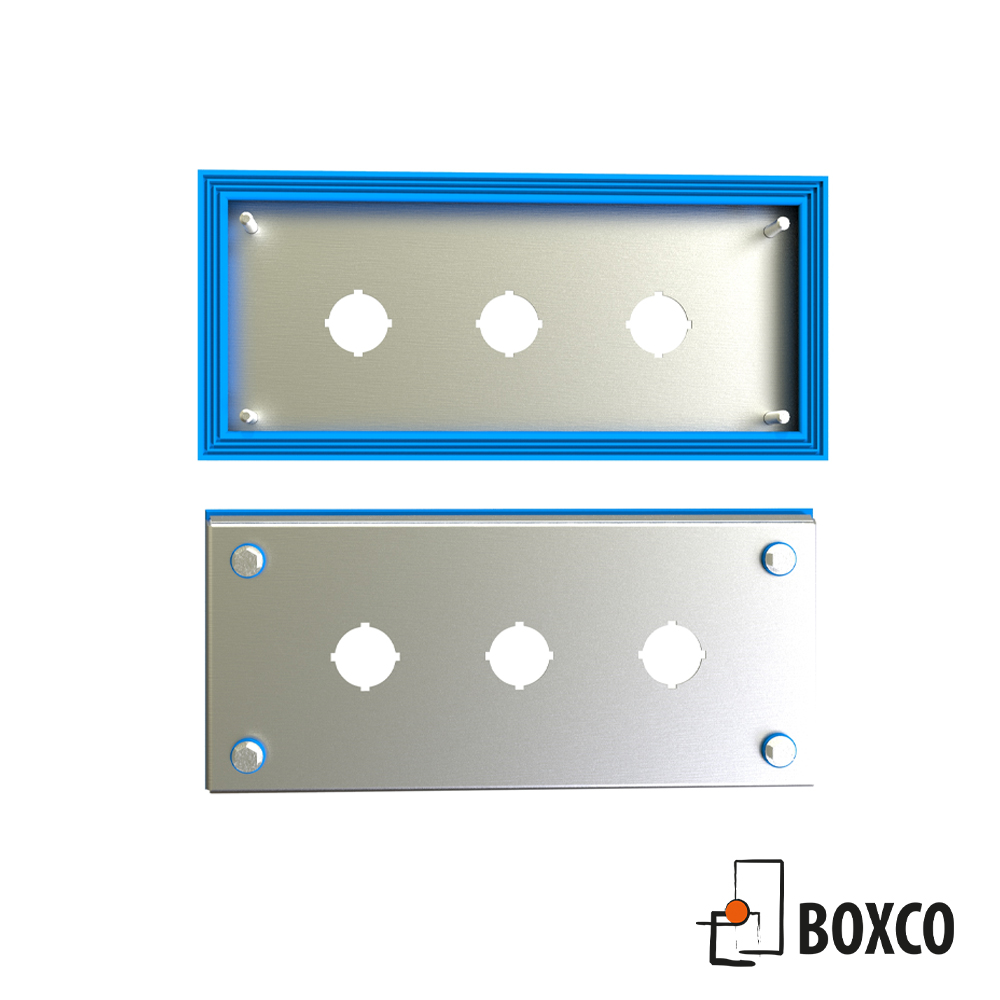

Multiple pushbutton hole configurations with either 22.5mm or 30.5mm notched holes.

Finish
Cover and enclosure are natural stainless steel with a smooth #4 dairy finish.

Teknisk data

Standards;
UL 508A Type 3R, 12, 4, 4X
CSA Type 3R, 12, 4, 4X
NSF – ANSI 169
Not all accessories shown maintain NSF standard. Some are internal and NSF is not applicable.
Refer to each accessory individually or call factory for specifics.

Complies with;
NEMA 3R, 12, 4, 4X
IEC 60529, IP69, IP69K


Product code Height Width Depth Mounting plate Height Width Replacement gasket
  mm mm mm   mm mm
HYJ854SS 202 124 102 14R0503 124 73 HYG85
HYJ1074SS 252 175 102 14R0705 171 124 HYG107
HYJ1294SS 303 226 102 14R0907 222 175 HYG129
HYJ14116SS 359 282 152 14R1109 273 226 HYG1411
HYJ16138SS 416 338 203 14R1311 324 276 HYG1613

Product code Product code Height Width Depth # Holes Replacement gasket
22mm Hole 30mm Hole mm mm mm
HYMPB1SS HYPB1SS 202 124 102 1 HYG85
HYMPB2SS HYPB2SS 202 124 102 2 HYG85
HYMPB3SS HYPB3SS 252 124 102 3 HYG105
HYMPB4VSS HYPB4VSS 303 124 102 4 HYG125
HYMPB4SS HYPB4SS 252 175 102 4 HYG107
HYMPB6SS HYPB6SS 303 226 102 6 HYG129
