Kabelgenomföringar

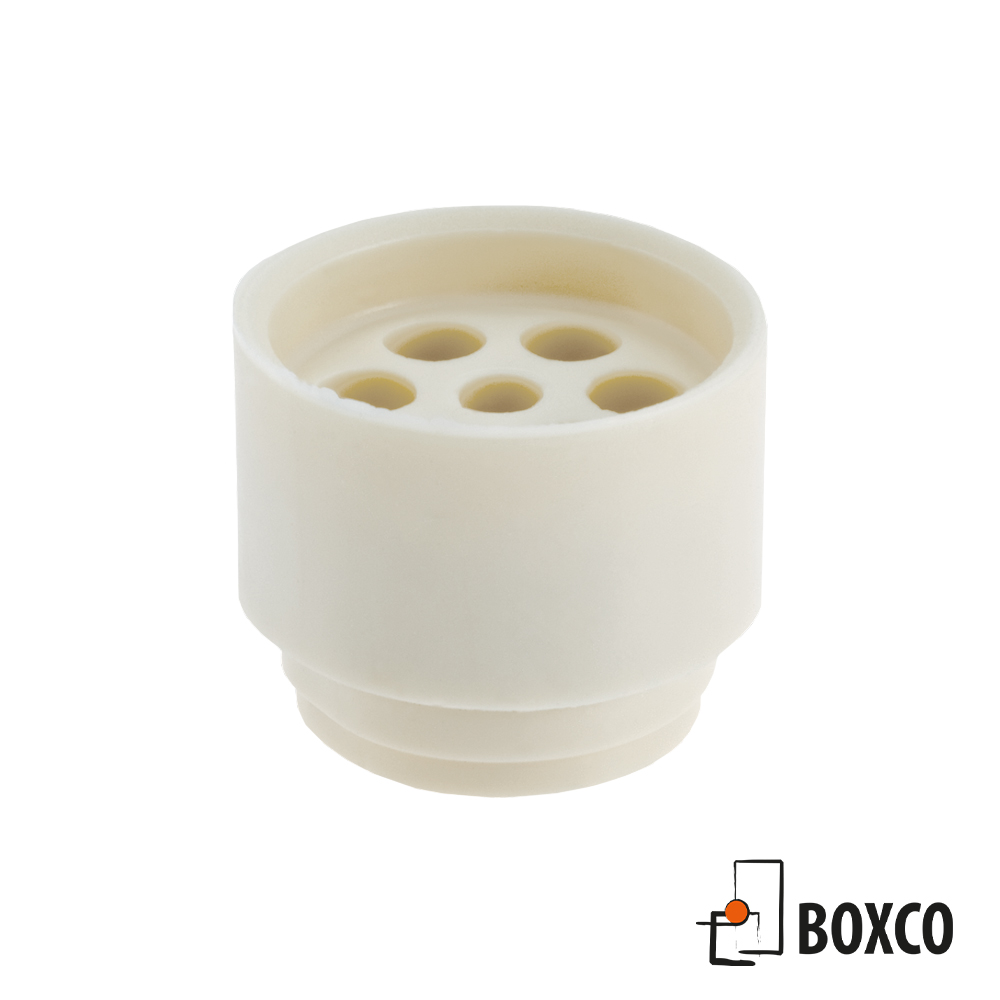

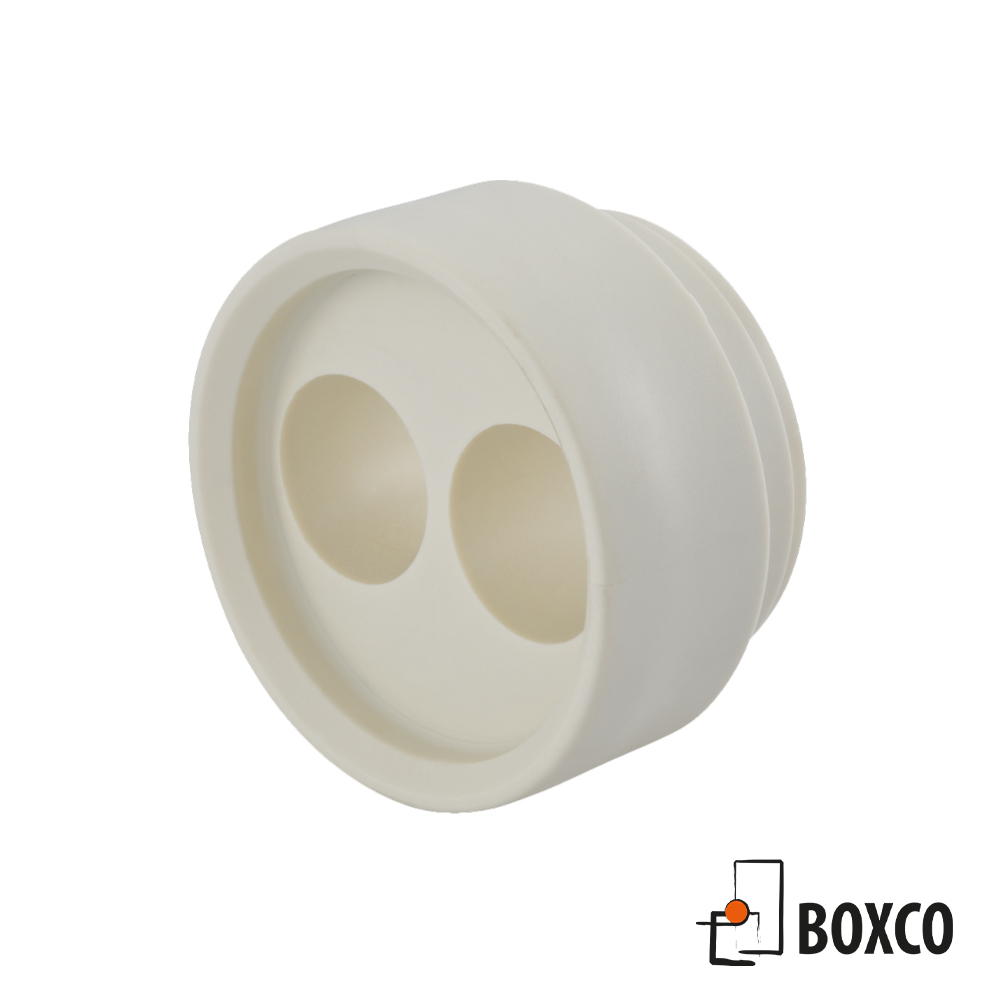

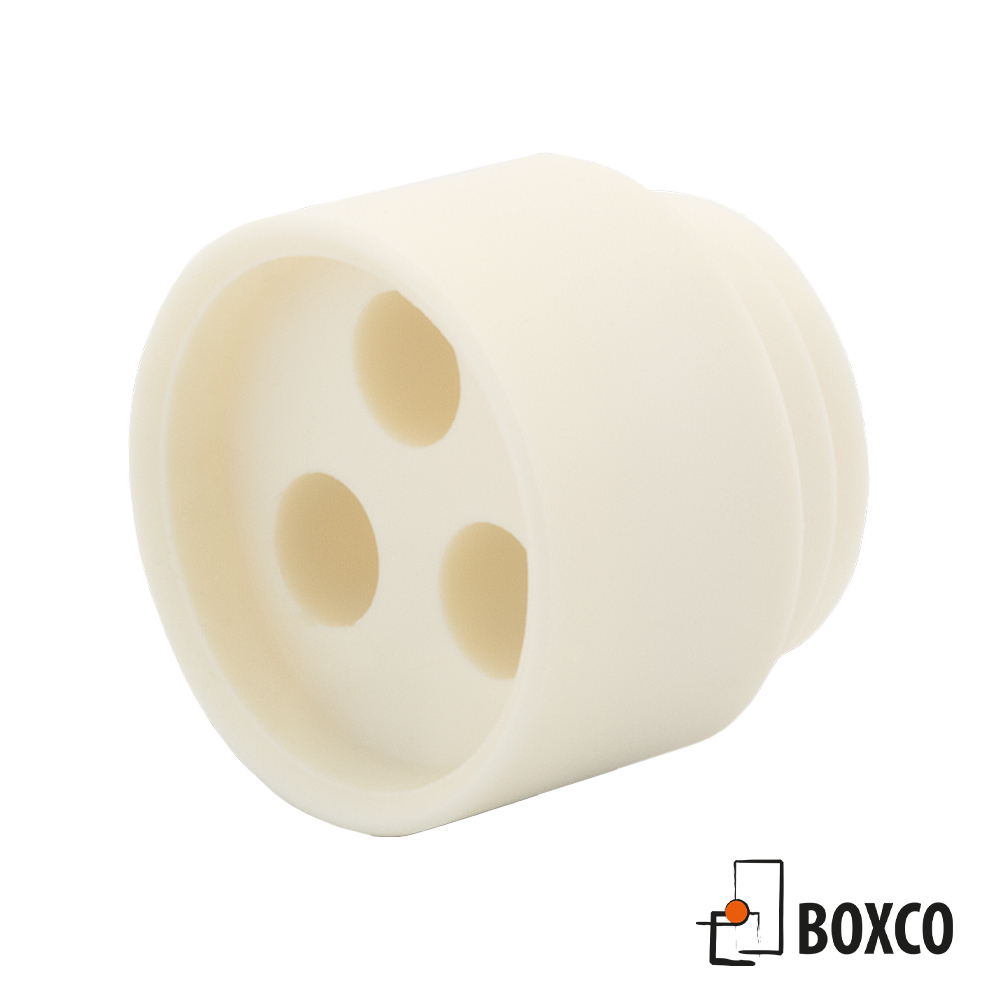

Multihåls insats – Serie 664.48

Egenskaper:
Passar till serie WAZU. För flerkabels installation. Tillverkare är Hummel.

Kategori: Övrigt

Ladda ner produktkatalog

Artikeldata
Egenskaper

Material	Elastomer
Temperaturområde	-40°C till 100°C
Skyddsklass	IP 54 - 68


art.nr	Gänga	W mm	Antal hål	Metall	Plast
Flerhålspackning
664.09144.48	M 16 + Pg 9 + 3/8 NPT	1.4	4	17	19
664.09302.48	M 16 + Pg 9 + 3/8 NPT	3	2	17	19
664.09165.48	M 16 + Pg 9 + 3/8 NPT	1.6	5	17	19
664.09110.48	M 16 + Pg 9 + 3/8 NPT	1.4	10	17	19
664.11153.48	M 16 + Pg 11 + 3/8 NPT	1.5	3	20	22
664.11303.48	M 16 + Pg 11 + 3/8 NPT	3	3	20	22
664.11302.48	M 16 + Pg 11 + 3/8 NPT	3	2	20	22
664.11402.48	M 16 + Pg 11 + 3/8 NPT	4	2	20	22
664.13203.48	M 20 + Pg 13.5 + 1/2 NPT	2	3	22	24
664.13303.48	M 20 + Pg 13.5 + 1/2 NPT	3	3	22	24
664.13403.48	M 20 + Pg 13.5 + 1/2 NPT	4	3	22	24
664.13252.48	M 20 + Pg 13.5 + 1/2 NPT	2.5	2	22	24
664.13306.48	M 20 + Pg 13.5 + 1/2 NPT	3	6	22	24
664.13502.48	M 20 + Pg 13.5 + 1/2 NPT	5	2	22	24
664.16303.48	M 20 + Pg 16 + 1/2 NPT	3	3	24	27
664.16403.48	M 20 + Pg 16 + 1/2 NPT	4	3	24	27
664.16405.48	M 20 + Pg 16 + 1/2 NPT	4	5	24	27
664.16563.48	M 20 + Pg 16 + 1/2 NPT	5.6	3	24	27
664.16306.48	M 20 + Pg 16 + 1/2 NPT	3	6	24	27
664.16404.48	M 20 + Pg 16 + 1/2 NPT	4	4	24	27
664.16406.48	M 20 + Pg 16 + 1/2 NPT	4	6	24	27
664.16602.48	M 20 + Pg 16 + 1/2 NPT	6	2	24	27
664.21504.48	M 25 + Pg 21 + 3/4 NPT	5	4	30	33
664.21703.48	M 25 + Pg 21 + 3/4 NPT	7	3	30	33
664.21604.48	M 25 + Pg 21 + 3/4 NPT	6	4	30	33
664.21802.48	M 25 + Pg 21 + 3/4 NPT	8	2	30	33
664.29656.48	M 32 + Pg 29 + 1 + 1 1/4	6.5	6	40	42
664.29904.48	M 32 + Pg 29 + 1 + 1 1/4	9	4	40	42
664.36905.48	M 40 + Pg 36 + 1 1/2 NPT	9	5	50	53
664.36806.48	M 40 + Pg 36 + 1 1/2 NPT	8	6	50	53
664.36907.48	M 40 + Pg 36 + 1 1/2 NPT	9	7	50	53
664.36152.48	M 40 + Pg 36 + 1 1/2 NPT	15	2	50	53
664.48108.48	M 63 + Pg 48	10	8	68 + 64	68 + 65
664.48183.48	M 63 + Pg 48	18	3	68 + 64	68 + 65
664.48126.48	M 63 + Pg 48	12	6	68 + 64	68 + 65
