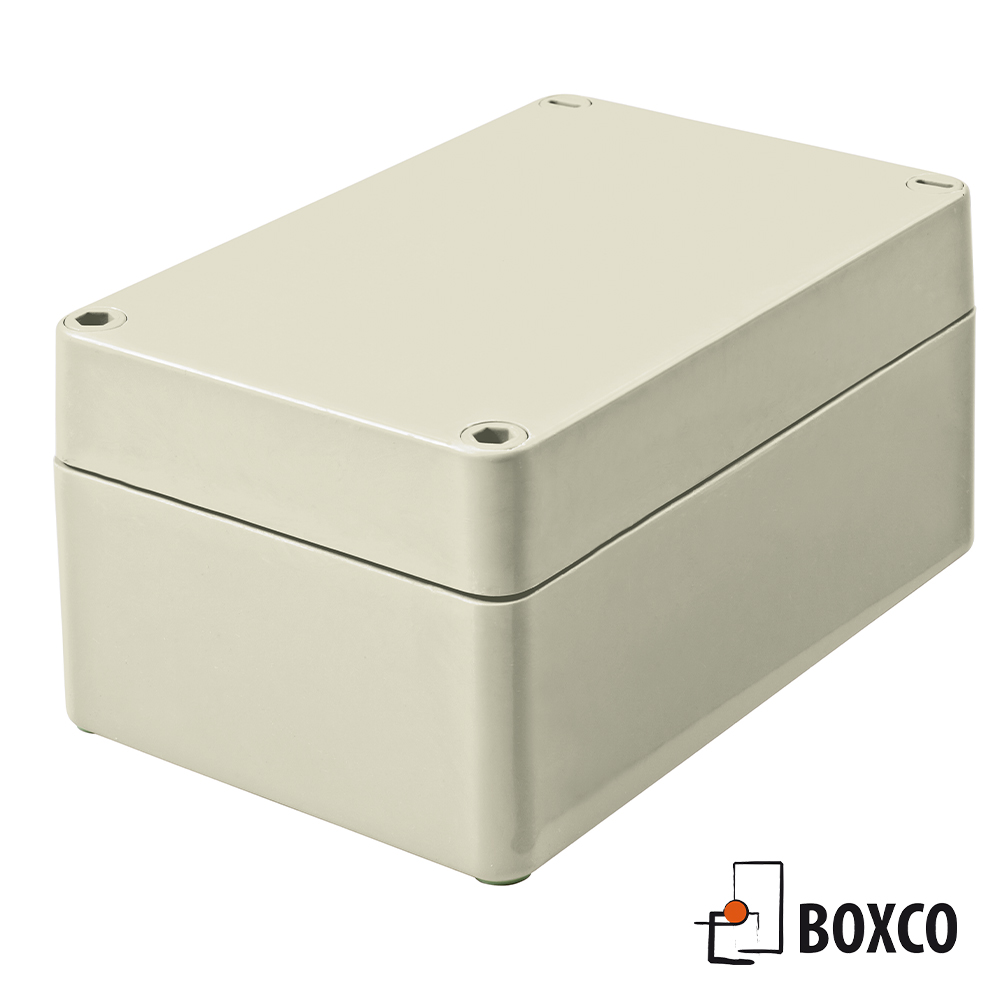

polyKOM
Välkänd storleksserie av polyesterkapslingar. För distributionsplint och elektronikkomponenter. Tillgänglig i 14 storlekar.
Kategori: Polyester
Ladda ner produktkatalogVälkänd storleksserie av polyesterkapslingar. För distributionsplint och elektronikkomponenter. Tillgänglig i 14 storlekar.
Kategori: Polyester
Ladda ner produktkatalogSerie: polyKOM
Skyddsklass: IP 66
Lådstorlek:
14 olika mått från 80 x 75 x 68mm till 400 x 405 x 120mm
Användningsområden:
Maskinteknik, kemisk industri, utomhusbruk
Lådmaterial
Halogenfri glasfiberförstärkt polyester
Deformationsgrad 1° - Räta innermått minskar 1° mot lådans botten.
Skruvar
Fast monterade och korrosionsfria lockskruvar i rostfritt stål.
Skyddsklass
IP 66/EN 60529
Brandtekniskt beteende
V0 självsläckande UL 94.
Isolering
Helt skyddsisolerade enligt VDE 0100.
Packning
Kloropren packning (-30°C till + 100°C),
På begäran: Silikonpackning (-50°C till +140°C).
Montering
Separata skruvkanaler utanför packningen.
Yttermontering
Ytterfästen i rostfritt stål.
Inbyggnad
Pressmuttrar i rostfritt stål i lådans botten.
Färg
Grå, liknande RAL 7000
På begäran: Svart
Ytmotstånd
Grå > 109 Ohm
Svart < 109 Ohm
![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

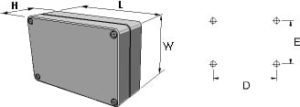

Type | art.nr | L (mm) | W (mm) | H (mm) | D | E | Vikt (g) | S | IN | M | D | A | T | CAD |
PK 081 | 180.081.000 | 80 | 75 | 55 | 68 | 45 | 230 | close | close | check | check | close | check | download |
PKH 081 | 182.081.000 | 80 | 75 | 75 | 68 | 45 | 300 | close | close | check | check | close | check | download |
PK 082 | 180.082.000 | 110 | 75 | 55 | 98 | 45 | 295 | close | close | check | check | close | check | download |
PKH 082 | 182.082.000 | 110 | 75 | 75 | 98 | 45 | 360 | close | close | check | check | close | check | download |
PK 083 | 180.083.000 | 160 | 75 | 55 | 148 | 45 | 405 | close | close | check | check | close | check | download |
PKH 083 | 182.083.000 | 160 | 75 | 75 | 148 | 45 | 460 | close | close | check | check | close | check | download |
PK 084 | 180.081.000 | 190 | 75 | 55 | 178 | 45 | 450 | close | close | check | check | close | check | download |
PKH 084 | 182.084.000 | 190 | 75 | 75 | 178 | 45 | 530 | close | close | check | check | close | check | download |
PK 121 | 180.121.000 | 122 | 120 | 90 | 106 | 82 | 750 | check | check | check | check | check | check | download |
PK 123 | 180.123.000 | 220 | 120 | 90 | 204 | 82 | 1060 | check | check | check | check | check | check | download |
PK 161 | 180.161.000 | 160 | 160 | 90 | 140 | 110 | 1130 | check | check | check | check | check | check | download |
PK 162 | 180.162.000 | 260 | 160 | 90 | 240 | 110 | 1710 | check | check | check | check | check | check | download |
PK 163 | 180.163.000 | 360 | 160 | 90 | 340 | 110 | 2150 | check | check | check | check | check | check | download |
PK 164 | 180.164.000 | 560 | 160 | 90 | 540 | 110 | 3185 | check | check | check | check | check | check | download |
PK 251 | 180.251.000 | 255 | 250 | 120 | 235 | 200 | 2650 | check | check | check | check | check | check | download |
PK 252 | 180.252.000 | 400 | 250 | 120 | 380 | 200 | 3650 | check | check | check | check | check | check | download |
PK 254 | 180.254.000 | 600 | 250 | 120 | 580 | 200 | 5235 | check | check | check | check | check | check | download |
PK 411 | 180.411.000 | 400 | 405 | 120 | 380 | 355 | 5580 | check | check | check | check | check | check | download |
