Kapslingar

  • Stolpmonteringskit

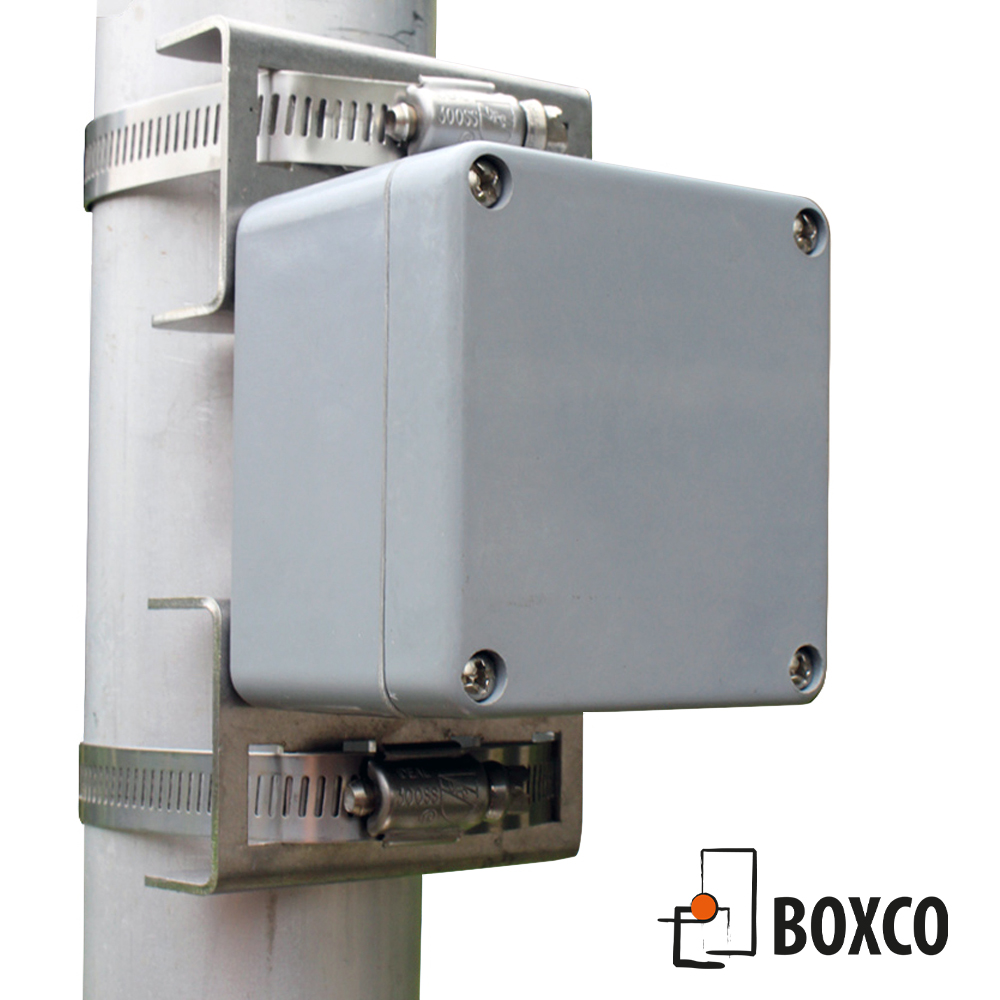

Rostfria stolpmonteringskit

  • Avsedda för Hammond 1554, 1555, 1555-F, 1590Z, samt 1590ZGRP serierna för att snabbt och säkert kunna montera dessa modeller på stolpe.
  • Minsta stolpomkrets 38 mm
  • Max stolp omkrets 178 mm/ 381 mm). Se datablad.
  • Fästena skruvas åt med 5/16″ mutterhylsa.
  • Installeras med hjälp av en hex nyckel och en hylmejsel (se instruktion för storlekar).
  • Varje kit innehåller:
    • (2) Rostfria stolpfästen
    • (2) Rostfria klämmor
    • NOTERA: Varje kit inkluderar olika hårdvaror. Säkerställ att du beställer rätt kit baserat på vilken kapsling den ska vara till. (se tabell).

Kategori: Kapslingar tillbehör

Ladda ner produktkatalog

Teknisk data

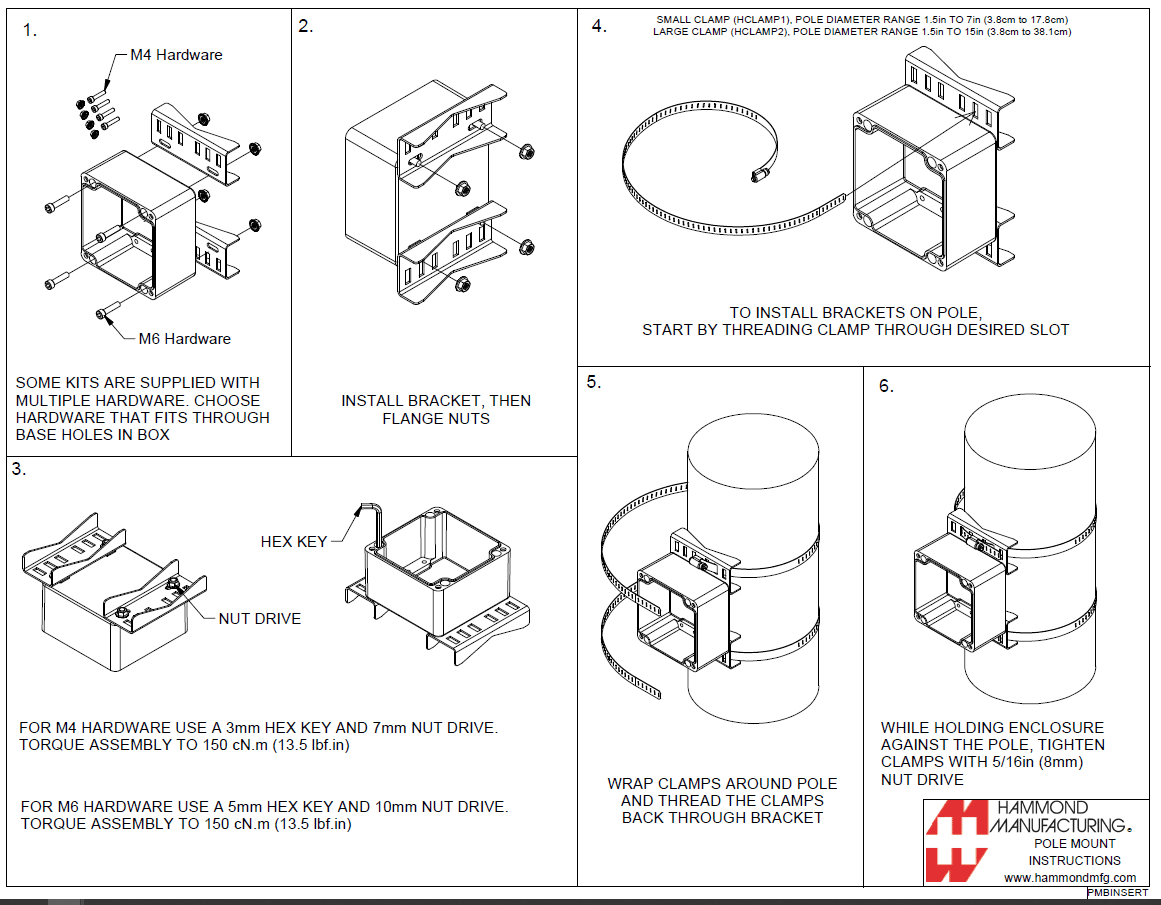

PMB installations bild


Kit Part Number Max Pole Diameter Enclosure Mounting Hole Spacing (mm) Replacement Straps
PMB4045KIT1 178 40-45 HCLAMP1
PMB5057KIT1 178 50-57 HCLAMP1
PMB6687KIT1 178 66-87 HCLAMP1
PMB110127KIT1 178 110-127 HCLAMP1
PMB180200KIT1 178 180-200 HCLAMP1
PMB4045KIT2 381 40-45 HCLAMP2
PMB5057KIT2 381 50-57 HCLAMP2
PMB6687KIT2 381 66-87 HCLAMP2
PMB110127KIT2 381 110-127 HCLAMP2
PMB180200KIT2 381 180-200 HCLAMP2

Compatible 1554/55 Series Enclosures

Non-Flanged
1554 / 1555 Series Enclosure Pole Mount Kit (7" Max.) Pole Mount Kit (15" Max.) Screw Type Replacement Screw Pack
1554/55E PMB5057KIT1 PMB5057KIT2 M4-0.7 x 20mm SCPMB1-20
1554/55EE PMB5057KIT1 PMB5057KIT2 M4-0.7 x 20mm SCPMB1-20
1554/55F PMB5057KIT1 PMB5057KIT2 M4-0.7 x 20mm SCPMB1-20
1554/55G PMB5057KIT1 PMB5057KIT2 M4-0.7 x 20mm SCPMB1-20
1554/55H PMB6687KIT1 PMB6687KIT2 M4-0.7 x 20mm SCPMB1-20
1554/55J PMB5057KIT1 PMB5057KIT2 M4-0.7 x 20mm SCPMB1-20
1554/55K PMB5057KIT1 PMB5057KIT2 M4-0.7 x 20mm SCPMB1-20
1554/55N PMB6687KIT1 PMB6687KIT2 M4-0.7 x 20mm SCPMB1-20
1554/55P PMB6687KIT1 PMB6687KIT2 M4-0.7 x 20mm SCPMB1-20
1554/55Q PMB110127KIT1 PMB110127KIT2 M4-0.7 x 20mm SCPMB1-20
1554/55R PMB110127KIT1 PMB110127KIT2 M4-0.7 x 20mm SCPMB1-20
1554/55S PMB110127KIT1 PMB110127KIT2 M4-0.7 x 20mm SCPMB1-20
1554/55T PMB6687KIT1 PMB6687KIT2 M4-0.7 x 20mm SCPMB1-20
1554/55U PMB6687KIT1 PMB6687KIT2 M4-0.7 x 20mm SCPMB1-20
1554/55V PMB110127KIT1 PMB110127KIT2 M4-0.7 x 20mm SCPMB1-20
1554/55VA PMB110127KIT1 PMB110127KIT2 M4-0.7 x 20mm SCPMB1-20
1554/55VB PMB110127KIT1 PMB110127KIT2 M4-0.7 x 20mm SCPMB1-20
1554/55X PMB180200KIT1 PMB180200KIT2 M4-0.7 x 20mm SCPMB1-20
1554/55XA PMB180200KIT1 PMB180200KIT2 M4-0.7 x 20mm SCPMB1-20
1554/55Y PMB180200KIT1 PMB180200KIT2 M4-0.7 x 20mm SCPMB1-20
1554/55YA PMB180200KIT1 PMB180200KIT2 M4-0.7 x 20mm SCPMB1-20

Compatible 1555 F Series Enclosures

Flanged
1555 F Series Enclosure Pole Mount Kit (7" Max.) Pole Mount Kit (15" Max.) Screw Type Replacement Screw Pack
1555CF PMB4045KIT1 PMB4045KIT2 M4-0.7 x 20mm SCPMB1-20
1555FF PMB5057KIT1 PMB5057KIT2 M4-0.7 x 20mm SCPMB1-20
1555HF PMB6687KIT1 PMB6687KIT2 M4-0.7 x 20mm SCPMB1-20
1555JF PMB5057KIT1 PMB5057KIT2 M4-0.7 x 20mm SCPMB1-20
1555NF PMB6687KIT1 PMB6687KIT2 M4-0.7 x 20mm SCPMB1-20

Compatible 1590Z Series Enclosures

1590Z Series Enclosure Pole Mount Kit (7" Max.) Pole Mount Kit (15" Max.) Screw Type Replacement Screw Pack
1590Z119 PMB6687KIT1 PMB6687KIT2 M6-1.0 x 25mm SCPMB2-20
1590Z150 PMB6687KIT1 PMB6687KIT2 M6-1.0 x 25mm SCPMB2-20
1590Z155 PMB6687KIT1 PMB6687KIT2 M6-1.0 x 25mm SCPMB2-20
1590Z160 PMB110127KIT1 PMB110127KIT2 M6-1.0 x 40mm SCPMB3-20
1590Z162 PMB110127KIT1 PMB110127KIT2 M6-1.0 x 40mm SCPMB3-20
1590Z164 PMB6687KIT1 PMB6687KIT2 M6-1.0 x 25mm SCPMB2-20
1590Z166 PMB110127KIT1 PMB110127KIT2 M6-1.0 x 40mm SCPMB3-20
1590Z231 PMB180200KIT1 PMB180200KIT2 M6-1.0 x 40mm SCPMB3-20
1590Z235 PMB180200KIT1 PMB180200KIT2 M6-1.0 x 40mm SCPMB3-20

Compatible 1590ZGRP Series Enclosures

1590ZGRP Series Enclosure Pole Mount Kit (7" Max.) Pole Mount Kit (15" Max.) Screw Type Replacement Screw Pack
1590ZGRP081 PMB4045KIT1 PMB4045KIT2 M4-0.7 x 20mm SCPMB1-20
1590ZGRP082 PMB4045KIT1 PMB4045KIT2 M4-0.7 x 20mm SCPMB1-20
1590ZGRP083 PMB4045KIT1 PMB4045KIT2 M4-0.7 x 20mm SCPMB1-20
1590ZGRP084 PMB4045KIT1 PMB4045KIT2 M4-0.7 x 20mm SCPMB1-20
1590ZGRP121 PMB6687KIT1 PMB6687KIT2 M6-1.0 x 25mm SCPMB2-20
1590ZGRP123 PMB6687KIT1 PMB6687KIT2 M6-1.0 x 25mm SCPMB2-20
1590ZGRP131 PMB4045KIT1 PMB4045KIT2 M4-0.7 x 20mm SCPMB1-20
1590ZGRP161 PMB110127KIT1 PMB110127KIT2 M6-1.0 x 40mm SCPMB3-20
1590ZGRP162 PMB110127KIT1 PMB110127KIT2 M6-1.0 x 40mm SCPMB3-20
1590ZGRP163 PMB110127KIT1 PMB110127KIT2 M6-1.0 x 40mm SCPMB3-20
1590ZGRP233 PMB180200KIT1 PMB180200KIT2 M6-1.0 x 40mm SCPMB3-20
1590ZGRP234 PMB180200KIT1 PMB180200KIT2 M6-1.0 x 40mm SCPMB3-20
1590ZGRP235 PMB180200KIT1 PMB180200KIT2 M6-1.0 x 40mm SCPMB3-20
1590ZGRP243 PMB180200KIT1 PMB180200KIT2 M6-1.0 x 40mm SCPMB3-20
1590ZGRP244 PMB180200KIT1 PMB180200KIT2 M6-1.0 x 40mm SCPMB3-20
1590ZGRP263 PMB180200KIT1 PMB180200KIT2 M6-1.0 x 40mm SCPMB3-20
1590ZGRP264 PMB180200KIT1 PMB180200KIT2 M6-1.0 x 40mm SCPMB3-20
