FEATURES

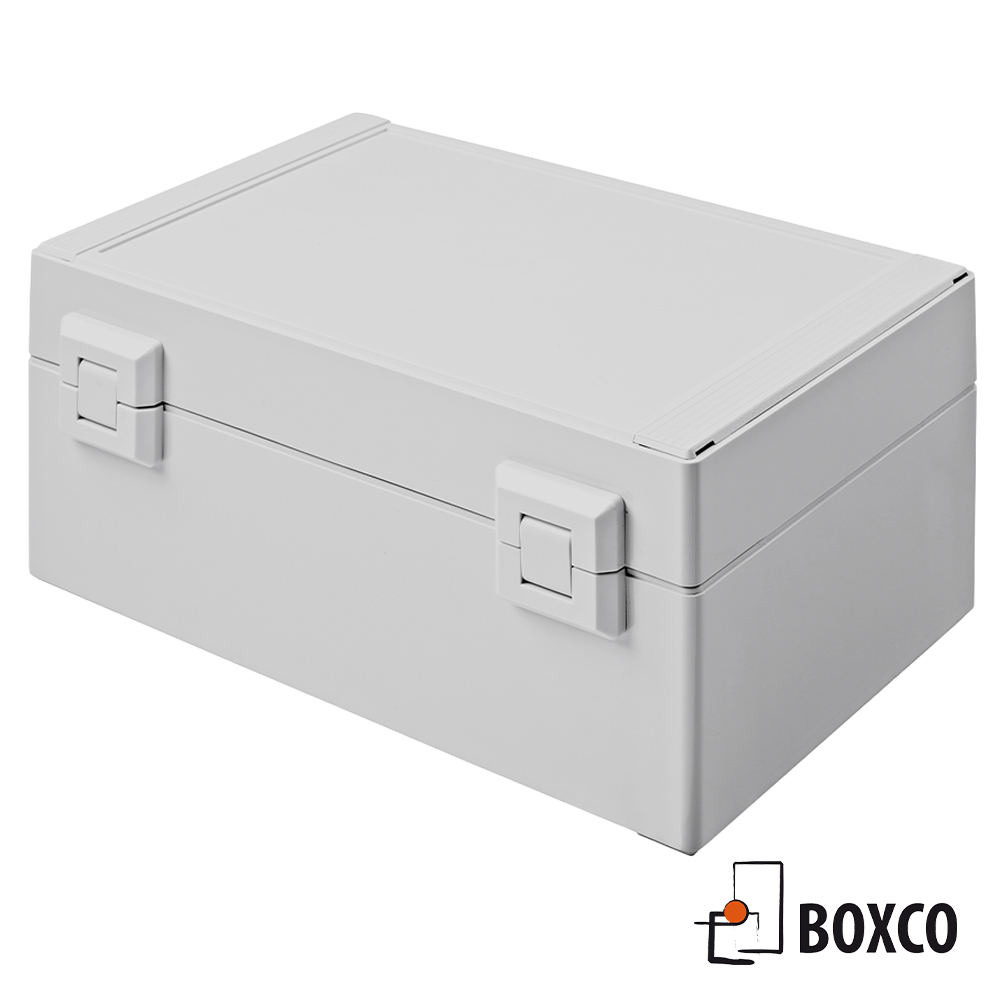

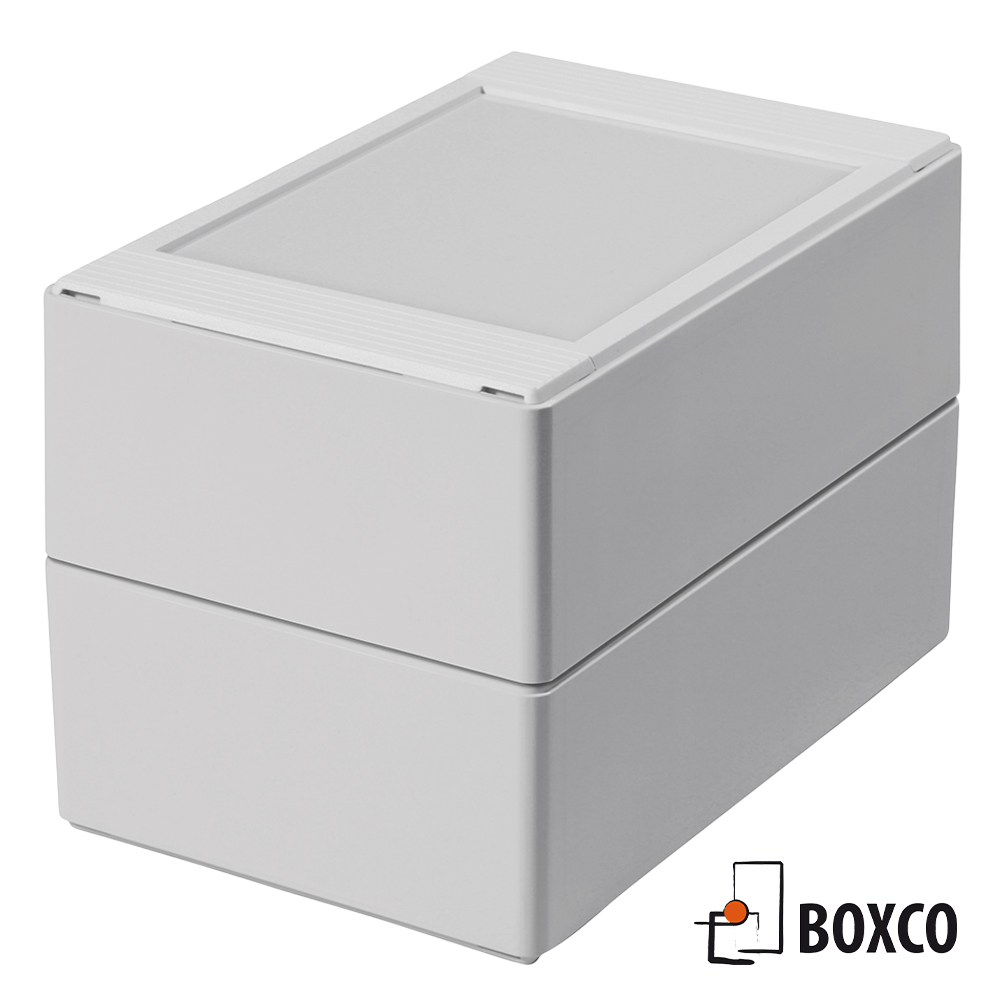

Modern plastic enclosures with snap-on
lid trims which hide the case fixing screws

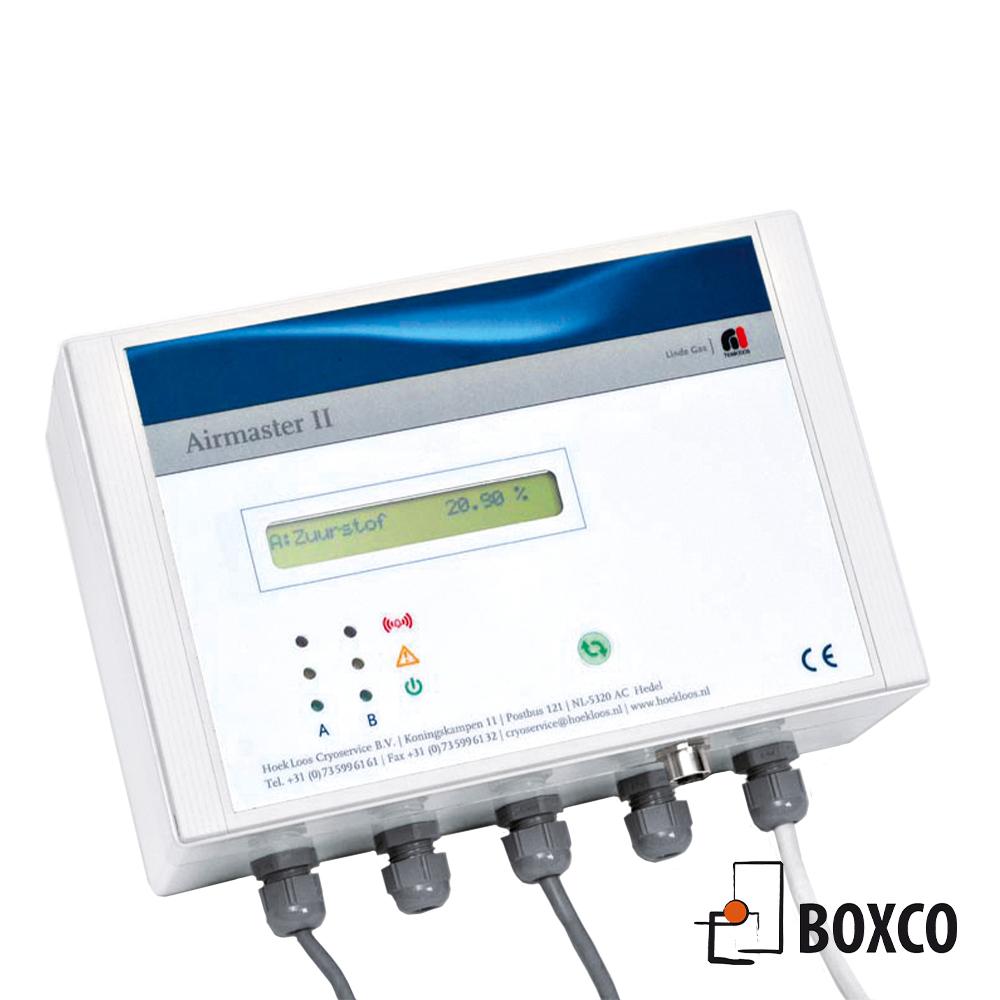

Ideal for electronic and electrical devices
Huge range of standard sizes
Recessed lid for secure fitting of a membrane
keypad or product label
Interchangeable top and base mouldings
Captured lid fixing screws
Screw bosses in base and lid for mounting components
DIN rail enclosures with accessory clip

Teknisk data

TECHNICAL DATA / OPTIONS
IP rating:	IP66 / EN 60529
Material:	ABS -40°C to +80°C Polycarbonate -50°C to +120°C Both materials halogen free 1° mould slope for moulding ejection See material specifications for more information
Combustion behaviour:	UL94 HB (both materials)
Surface resistance:	ABS 4 x 10¹⁴ Ohm Polycarbonate 10¹⁵ Ohm
Insulation:	Fully insulated VDE 0100
Colour:	Light grey, RAL 7035 Special colours on request
Lid gasket:	Silicon gasket -40°C to +120°C
EMC Shielding:	Option code: EMV: Enclosures supplied with EMC conductive gasket and internal EMC conductive coating
Lid screws:	Captured stainless steel screws
Mounting:	Separate screw ports outside of the enclosure interior
Certification:	GOST R (Russian Standards)
Technical Notes:	Technical specifications for the products on this page may be subject to change at any time without prior notice. Please check any critical specifications or criteria by contacting our sales team before ordering your products. No liability is accepted for typographical or any other errors.

Certifieringar


Type	art.nr	L (mm)	W (mm)	H (mm)	D	E	Vikt i gram	M	T	F	L	IS	S	C	P	A	ST	SF	TF
TA 080	201.080.000	80	80	80	66	66	192	check	check	check	check	check	check	check	check	check	check	check	check
TA 082	201.082.000	120	80	80	106	66	240	check	check	check	check	check	check	check	check	check	check	check	check
TA 084	201.084.000	160	80	80	146	66	286	check	check	check	check	check	check	check	check	check	check	check	check
TA 086	201.086.000	240	80	80	226	66	386	check	check	check	check	check	check	check	check	check	check	check	check
TA 120	201.120.000	120	120	90	106	106	348	check	check	check	check	check	check	check	check	check	check	check	check
TA 122	201.122.000	200	120	90	186	106	484	check	check	check	check	check	check	check	check	check	check	check	check
TA 124	201.124.000	240	120	90	226	106	530	check	check	check	check	check	check	check	check	check	check	check	check
TA 160	201.160.000	160	160	90	146	146	474	check	check	check	check	check	check	check	check	check	check	check	check
TA 162	201.162.000	240	160	90	226	146	620	check	check	check	check	check	check	check	check	check	check	check	check
TAH 162	202.162.000	240	160	120	226	146	795	check	check	check	check	check	check	check	check	check	check	check	check
TA 202	201.202.000	300	200	120	286	186	1120	check	check	check	check	close	check	close	check	check	check	close	check
TAH 202	202.202.000	300	200	160	286	186	1290	check	check	check	check	close	check	close	check	check	check	close	check
TA 242	201.242.000	360	240	120	346	226	1500	check	check	check	check	close	check	close	check	check	check	close	check
TAH 242	202.242.000	360	240	160	346	226	1730	check	check	check	check	close	check	close	check	check	check	close	check
TAF 080	200.080.000	80	80	60	66	66	156	check	check	check	check	check	check	check	check	check	check	check	check
TAF 082	200.082.000	120	80	60	106	66	196	check	check	check	check	check	check	check	check	check	check	check	check
TAF 084	200.084.000	160	80	60	146	66	234	check	check	check	check	check	check	check	check	check	check	check	check
TAF 086	200.086.000	240	80	60	226	66	320	check	check	check	check	check	check	check	check	check	check	check	check
TAF 120	200.120.000	120	120	60	106	106	272	check	check	check	check	check	check	check	check	check	check	check	check
TAF 122	200.122.000	200	120	60	186	106	398	check	check	check	check	check	check	check	check	check	check	check	check
TAF 124	200.124.000	240	120	60	226	106	434	check	check	check	check	check	check	check	check	check	check	check	check
TAF 160	200.160.000	160	160	60	146	146	394	check	check	check	check	check	check	check	check	check	check	check	check
TAF 162	200.162.000	240	160	60	226	146	534	check	check	check	check	check	check	check	check	check	check	check	check
TAF 202	200.202.000	300	200	80	286	186	950	check	check	check	check	close	check	close	check	check	check	close	check
TAF 242	200.242.000	360	240	80	346	226	1270	check	check	check	check	close	check	close	check	check	check	close	check
