aluDOOR – aluminiumlåda med dörr

aluDOOR

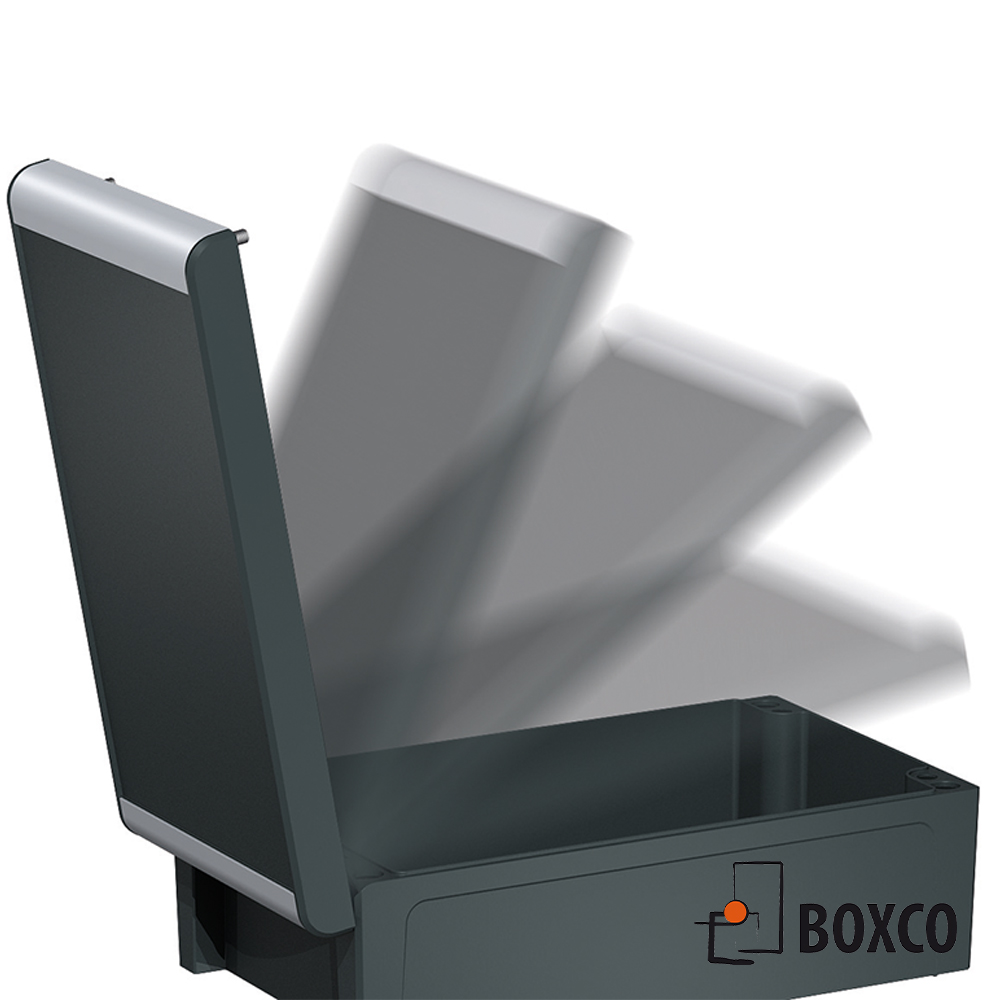

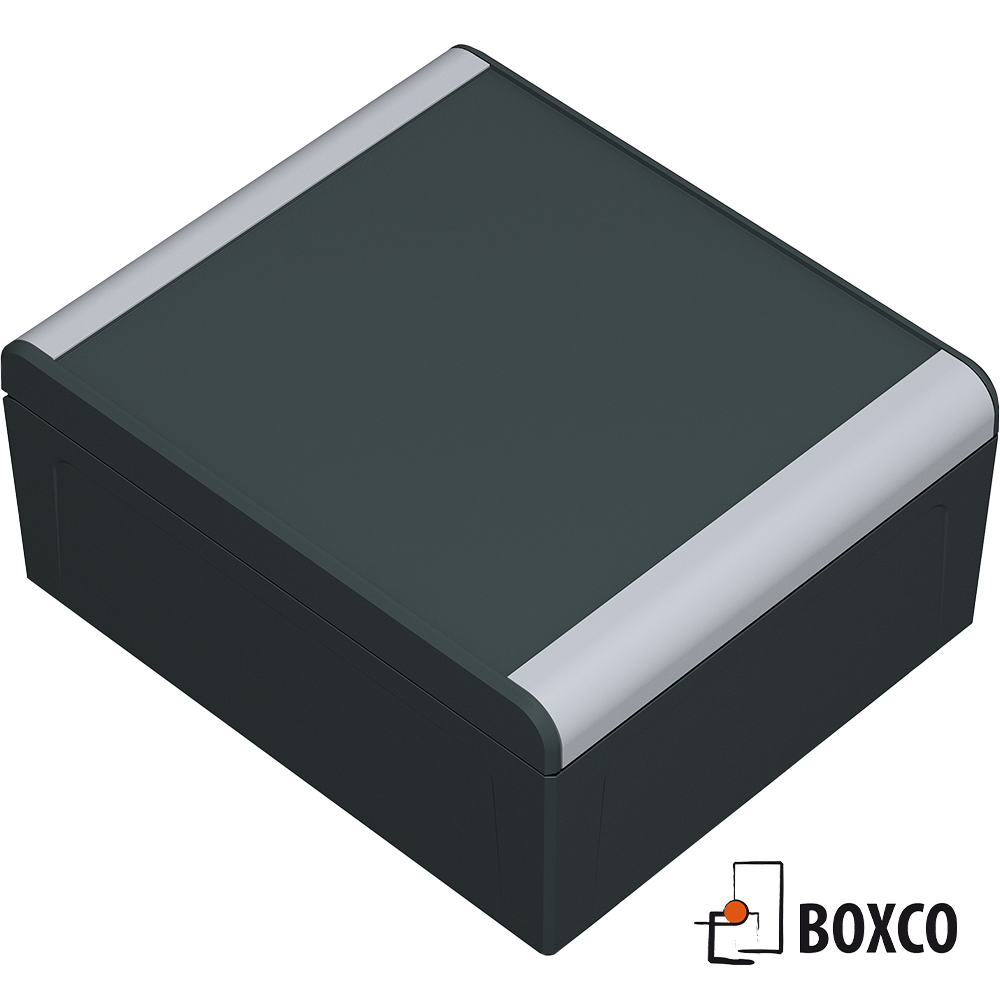

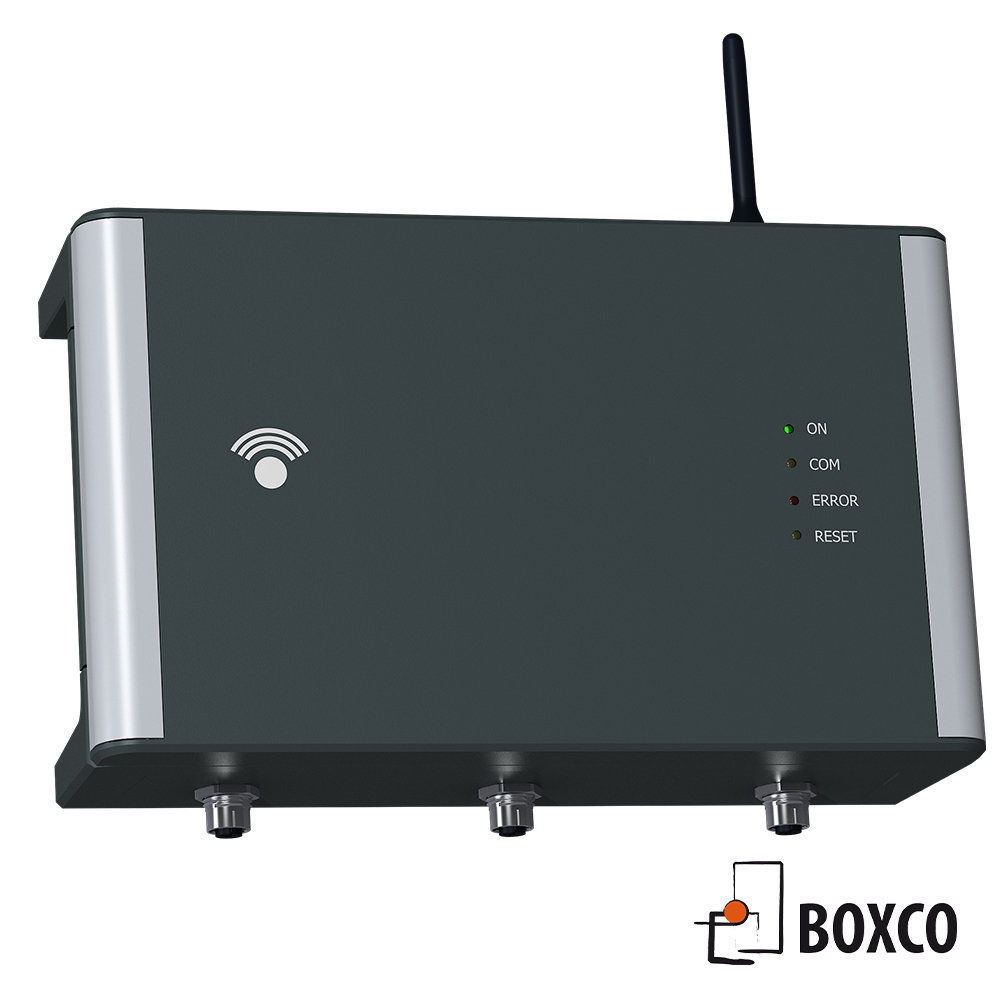

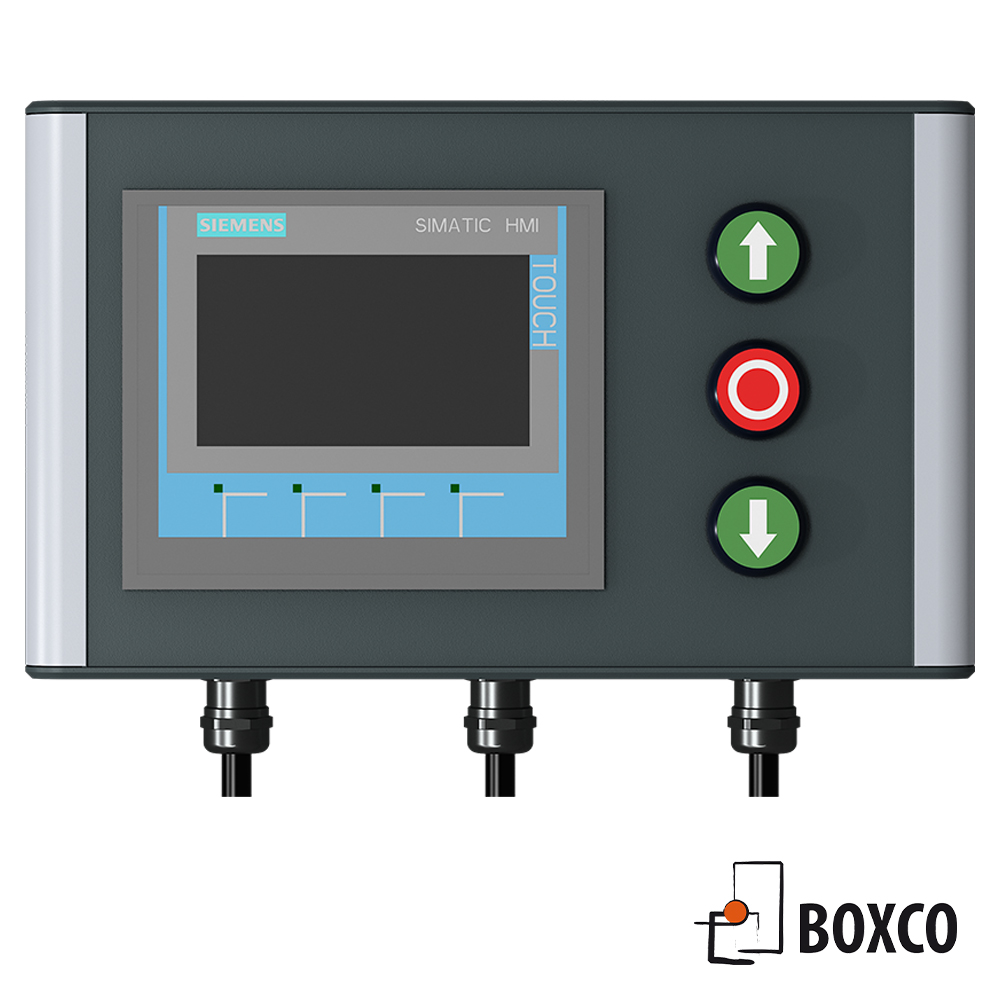

The new generation of enclosure with door, featuring an unmistakable progressive design !

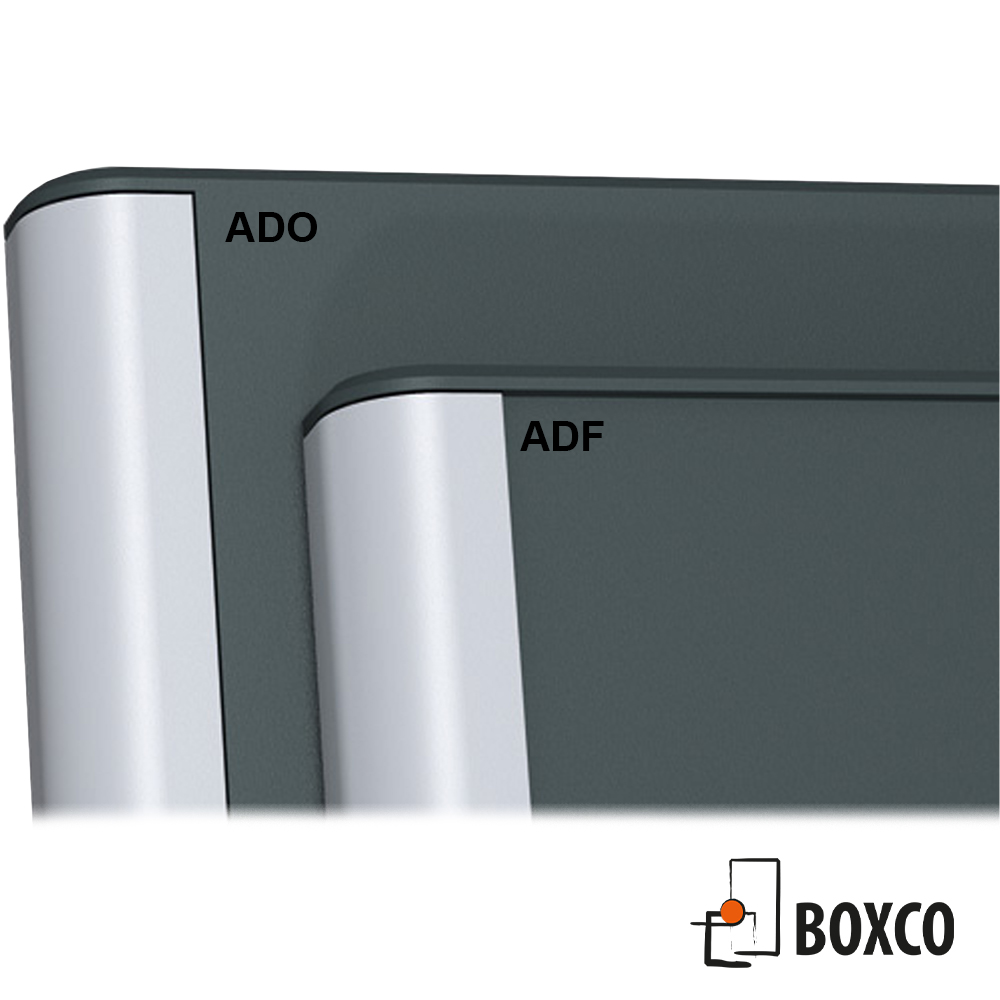

Two versions: ADF: Version with lid recess or ADO: Version with flat lid.

There is very little scope for design when it comes to standardised die cast metal enclosures. aluDOOR enclosures
are probably the first aluminium enclosures in series production with an independent progressive design. The contour
necessitated by the design, which makes these enclosures “compact cabinets”, was continued on the other
three sides. The standard colour of this new enclosure series – RAL 7016 anthracite grey – accentuates the special
design.

Kategori: Kapslingar

Ladda ner produktkatalog

Artikeldata
Egenskaper

Egenskaper

Internal mounting: Threaded mounting pillars in the lid and base section.
Fastening: Separate screw channels

Ingress protection: IP 66 / EN 60529
IP 67 / EN 60529
IP 69K / ISO 20563

OPTIONAL: Special colours on request
                       Design covers alternativel available in RAL 7016
                       EMC gasket
                       Mounting plate

Teknisk data

Enclosure material: Die cast aluminium
Design covers: Extruded aluminium profile
Silver matt powder coating

Coating: RAL 7016 - anthracite grey
Lid screws: Stainless steel A2, M5 with TX25
Gasket: Foamed, polyurethane (PUR)

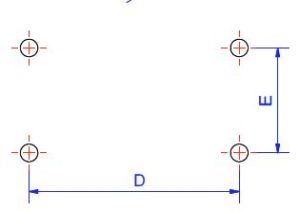

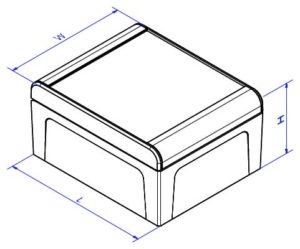

Type	Part. no.	Length L	Width W	Height H	Weight	Mounting	Mounting
		mm	mm	mm	gr	dimension D	dimension E
ADF: Version with lid recess
ADF 090	133.090.000	120	90	70	600	100	70
ADF 092	133.092.000	160	90	70	705	140	70
ADF 110	133.110.000	140	110	80	785	120	90
ADF 112	133.112.000	200	110	80	975	180	90
ADF 130	133.130.000	160	130	80	945	140	110
ADF 132	133.132.000	220	130	80	1150	200	110
ADF 150	133.150.000	180	150	90	1180	160	130
ADF 152	133.152.000	260	150	90	1490	240	130
ADF 170	133.170.000	200	170	90	1370	180	150
ADF 172	133.172.000	280	170	90	1700	260	150

Type	Part. no.	Length L	Width W	Height H	Weight	Mounting	Mounting
		mm	mm	mm	gr	dimension D	dimension E
ADO: Version with flat lid
ADO 090	134.090.000	120	90	70	605	100	70
ADO 092	134.092.000	160	90	70	710	140	70
ADO 110	134.110.000	140	110	80	790	120	90
ADO 112	134.112.000	200	110	80	980	180	90
ADO 130	134.130.000	160	130	80	950	140	110
ADO 132	134.132.000	220	130	80	1160	200	110
ADO 150	134.150.000	180	150	90	1190	160	130
ADO 152	134.152.000	260	150	90	1500	240	130
ADO 170	134.170.000	200	170	90	1380	180	150
ADO 172	134.172.000	280	170	90	1710	260	150
