Stainless Steel SAFETY AND ISOLATION SWITCHES

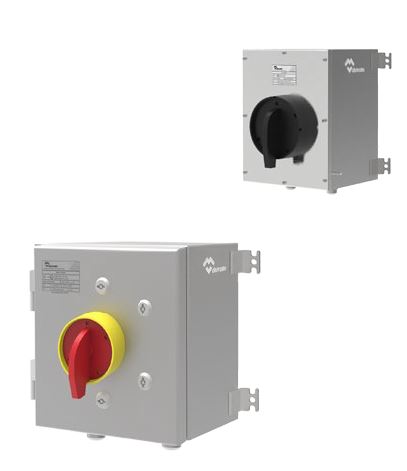

The Ex safety and isolation switch, allows work with a machine to safely maintain, clean and overhaul it as long as the switch is in the OFF position.

The Ex safety and isolation switch are made of stainless steel AISI 316L Ex e. AII the metal elements are anti-corrosive rust proof. Concave-convex joints between the covers and bodies are designed to mount an air-foam silicone bar; which secure an IP66 degree of protection.

Installation is certified for zones 1, 2, 21 and 22; with features of high corrosion protection, water-proof and dustproof, they can meet the requirements in chemical, petrochemical and marine industries.

Separately certified Ex d load isolation switch module is mounted inside. It can be used to disconnect the power when there is maintenance, clean and repair in the circuit with frequency AC50/60Hz, rated voltage 230V – 690V, rated current 16 – 180A.

Kategori: Brytare, Installation / Säkerhet EX

Ladda ner produktkatalog

Explosion protection: Zones 1, 2, 21 and 22.

  • Degree of protection IP66.
  • IECEx and ATEX international certification.
  • Operation handle with padlock device.
  • Utilization category:AC-23, AC-3.


Certifieringar

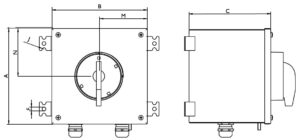

  SAFETY AND ISOLATION SWITCH GEOEX - lidscrews, DIMENSIONS (mm)
16A

poles A (Height)  B (Width) C (Depth) F (ø hole) J (radius) N M
3P
160 120 70 D10 R5 80 60
25A
poles A (Height)  B (Width) C (Depth) F (ø hole) J (radius) N M
3P 175 150 110 D10 R5 87,5 75
4P 175 150 110 D10 R5 87,5 75
3P+N 175 150 110 D10 R5 87,5 75
6P 175 150 150 D10 R5 87,5 75
40A
poles A (Height)  B (Width) C (Depth) F (ø hole) J (radius) N M
3P 200 200 175 D10 R5 100 100
4P 200 200 175 D10 R5 100 100
3P+N 200 200 175 D10 R5 100 100
6P 200 200 210 D10 R5 100 100
80A
poles A (Height)  B (Width) C (Depth) F (ø hole) J (radius) N M
3P 250 250 200 D10 R5 125 125
4P 250 250 200 D10 R5 125 125
3P+N 250 250 200 D10 R5 125 125
6P 250 250 240 D10 R5 125 125
180A
poles A (Height)  B (Width) C (Depth) F (ø hole) J (radius) N M
3P 350 275 250 D10 R5 175 137,5
4P 350 275 250 D10 R5 175 137,5
3P+N 350 275 250 D10 R5 175 137,5
6P 350 275 300 D10 R5 175 137,5

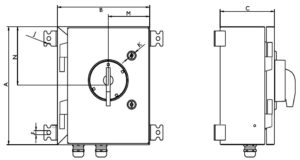

  SAFETY AND ISOLATION SWITCH LUXOREX - Hinged lid DIMENSIONS (mm)
25A
poles A (Height)  B (Width) C (Depth) F (ø hole) J (radius) K (ø) N M
3P 300 250 150 D10 R5 D27 150 125
4P 300 250 150 D10 R5 D27 150 125
3P+N 300 250 150 D10 R5 D27 150 125
6P 300 250 200 D10 R5 D27 150 125
40A
poles A (Height)  B (Width) C (Depth) F (ø hole) J (radius) K (ø) N M
3P 270 270 200 D10 R5 D12 135 135
4P 270 270 200 D10 R5 D12 135 135
3P+N 270 270 200 D10 R5 D12 135 135
6P 270 270 250 D10 R5 D12 135 135
80A
poles A (Height)  B (Width) C (Depth) F (ø hole) J (radius) K (ø) N M
3P 300 300 200 D10 R5 D12 150 150
4P 300 300 200 D10 R5 D12 150 150
3P+N 300 300 200 D10 R5 D12 150 150
6P 300 300 250 D10 R5 D12 150 150
180A
poles A (Height)  B (Width) C (Depth) F (ø hole) J (radius) K (ø) N M
3P 350 320 250 D10 R5 D12 175 160
4P 350 320 250 D10 R5 D12 175 160
3P+N 350 320 250 D10 R5 D12 175 160
6P 350 320 300 D10 R5 D12 175 160
